Valves are pretty familiar products. Plumbing is impossible without valves. Over the years, valves have been modified into hundreds of different shapes. They serve plenty of jobs by installing at various locations. The most important use of valves is for residential plumbing. It is because houses cannot exist without an adequate water supply.
The 4-way water distributor valve is one such product. It is a multi-purpose valve. This valve serves the distribution of water towards four different channels. It has numerous applications. Here is a complete guide on the 4-way water distributor valve.
4-Way Water Distributor Valve:
As the name refers, it has four openings where water flow is controlled. We use it in water pipelines to regulate and adjust the water flow. The valve allows the user to shut off a particular supply completely. At the same time, it lets the water flow from other openings.
YouTube Video Link: https://youtu.be/pUxh-B0s9cg
This valve is usually used to access water at multiple locations. The irrigation system is one such example. It serves the function of various valves. The 4-Way Water distributor valve saves budget and does the job of multiple valves at a time.

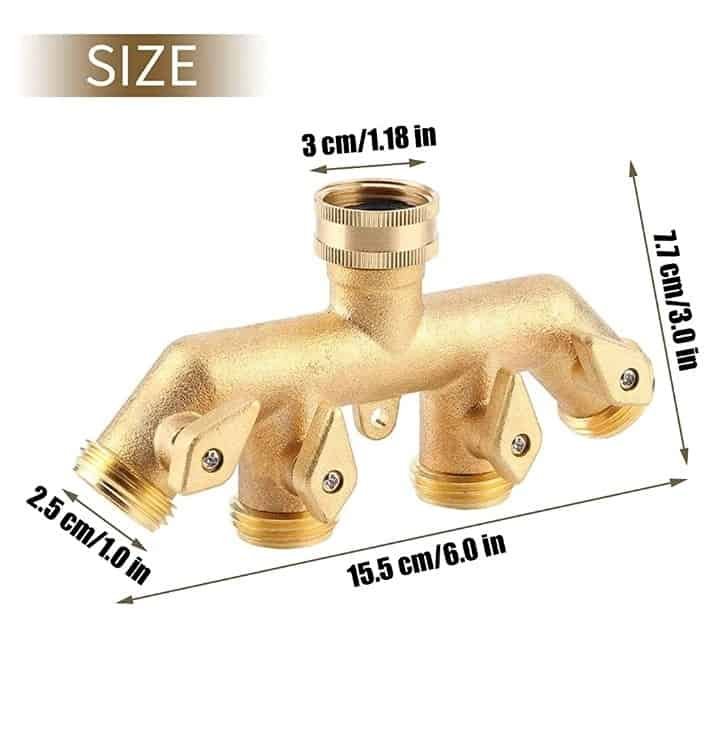

Specifications. Product: 4-Way Water Distributor Valve. Material: Brass Size: 3cm Inlet. Pressure: Regular Pressure. Working Temperature: Normal Temperature. Applications: Hose Splitting, Garden, Water faucet Spitting. |
Get Premium Quality 4-Way Water Distributor Valves here.
Types of 4-Way Water Distributor Valve:
4-way water distributor valve has many times depending upon material and working. The difference also varies on the operating method. Below are the types of 4-way water distributor valves depending on the operation.
- 4-Way Water Distributor Solenoid Valves: Solenoid valves work with the help of electricity. It controls the flow of water by using electric power. We often use them in automated systems such as industries and irrigation.
- 4-Way Water Distributor Motorized Valves: Motorized distributor valves have an electric motor. The motor is responsible for controlling the flow of water. We use such valves for heavy duty. They are applicable for HVAC and plumbing systems.
- 4-Way Water Distributor Manual Valves: Manual valves are the traditional distributor valves. We operate them with the help of a lever or handle. We use them in smaller systems, such as houses, for quick shut-off.
- 4-Way Water Distributor Pneumatic Valves: Pneumatic valves have the mechanism of compressed air. They use compressed air to control the flow of water. The valves are applicable in industries and power plants.
- 4-Way Water Distributor Hydraulic Valves: Hydraulic valves operate with fluid pressure. The pressure is responsible for blocking or passing the water. These valves are very common for rugged duty in industries and mining.
- 4-Way Water Distributor Thermostatic Valve: Thermostatic distributor valves have temperature-sensitive elements. They allow the water to pass through at a certain fixed temperature. They also let the water temperature regulate and attain a safe level. This type is commonly applicable to HVAC systems.
Applications of 4-Way Water Distributor Valve:
A 4-Way Water Distributor Valve controls and distributes water flow to multiple locations. 4-Way Water distributor valves have a variety of applications. They are widely used for their multi-purpose nature. It’s durable to use a 4-way water distributor valve. Here are the applications.
- Gardens: 4-way Water Distributor valves are perfect for garden sprinklers. They can split the water flow in four different directions. These valves can help you water plants in different garden areas at once.
- Plumbing systems: The valve can distribute water to many locations in plumbing systems—for example, bathrooms, kitchens, or outdoor hose bibs.
- Water filtration systems: The valve can control water during filtration. They apply in sand, carbon, and reverse osmosis systems.
- Hydroponic systems: The valve can distribute water and nutrients to multiple grow beds in hydroponic systems. They allow precise control of water flow to each plant.
- Pool and spa systems: The valve can control water flow to different pool or spa system components. We use them in such in filters, heaters, and jets.
- Industrial water systems: We can use the valve in industrial water systems to control water flow to different processes. They work well in cooling towers, boilers, and chemical reactors.
- Fire suppression systems: The valve can be used in fire suppression systems. It controls the flow of water to different fire protection zones in a building.
Working of 4-Way Water Distributor Valve:
A 4-Way Water Distributor Valve works by controlling water flow to multiple locations through its four ports. The valve has a rotating actuator. It has manual or electric control, which can switch the water flow between the ports.
When we turn the actuator, it opens the valve, allows water to flow through one port, and closes the others. It prevents water from flowing through those ports. We can rotate the actuator in different positions to control water flow to different ports. It lets the valve distribute water to many locations. The valve can control water flow to different lawn zones or gardens in an irrigation system. The valve can be positioned by rotating the actuator to allow water to flow to one zone. By rotating again, it allows water to flow to another zone.
We can also let the water pass through two, three, or four ports at a time. For this purpose, we can either manually or electronically open the valve outlets. The internal structure of the valve may vary. It may have a globe or ball inside. Each type of valve structure operates differently.
In summary, the 4-Way Water Distributor Valve controls water flow throughout. It allows water to pass through multiple locations as needed. It can also work as a shut-off valve by blocking flow through all four sides of the valve.
How to Install a 4-Way Water Distributor Valve?
Here’s a detailed guide to installing a 4-way water distributor valve:
Materials needed:
The 4-way water distributor valve.
Adjustable wrench.
Teflon tape.
Plumber’s putty (optional).
Steps:
- Turn off the main water supply to the house. It will ensure that there’s no water flow during the installation process.
- Locate the incoming water line and the four outgoing lines. The incoming line is where the water enters the valve. The four outgoing lines are where the water will be distributed to different areas of the house.
- Disconnect the incoming water line and the four outgoing lines. Use an adjustable wrench to loosen the nuts that secure the pipes to the fittings. Remove the pipes and set them aside.
- Wrap Teflon tape around the threads of the incoming water line. It will help to prevent leaks when the valve is installed.
- Install the valve into the incoming water line. The valve will have a threaded inlet and outlet. It connects the incoming water line and the four outgoing lines.
- Secure the valve to the incoming water line using nuts and washers. Tighten the nuts using an adjustable wrench.
- Reconnect the four outgoing lines to the corresponding outlets on the valve. Use Teflon tape on the threads of the pipes to prevent leaks.
- Turn the main water supply back on. Check for any leaks at the connections. If there are any leaks, tighten the connections.
- Test the valve by turning the handle to different positions. Each position should direct water flow to a different outlet.
- Adjust the valve handle to the desired position to direct water flow to the desired outlet.
Some valves may require using a plumber’s putty to create a watertight seal. Be sure to follow the manufacturer’s instructions.
Reading Recommendation: What Is The Difference Between Brass Fittings And Copper Fittings?
Why Should you use a 4-way water Distributor Valve?
The 4-way water distributor valve has several advantages, including:
Increased Efficiency: The valve enables efficient water distribution to multiple outlets. It reduces water waste and ensures proper water flow to each outlet.
Easy Control: The valve allows for easy control of water flow to each outlet. It helps you regulate each port’s water pressure and flow rate.
Cost-effective: Installing a 4-way water distributor valve can be a cost-effective solution. It is better compared to installing separate valves for each outlet.
Space-saving: The valve helps save space, combining multiple valves into one compact unit.
Durability: The valve is typically made from durable materials. It ensures a long service life and minimal maintenance.
Conclusion:
4-way water distributor valves are a wise choice. They are versatile and cost-effective. One should have basic information before purchasing the product. You can also make your buying guide keeping in mind the above facts. It not only saves time but also helps you choose the best product. You can buy top-quality 4-way water distributor valves here.
