What’s The Difference Between 2-way and 3-way Valves?

In this blog post, you’ll read:Any valve with two openings is a 2-way valve. 2-way valves are specific components that can save time and money. These valves have an input and an output port. They're used in simple on/off applications and in variable flow systems with temperature, flow, and pressure variations.
Table of Contents

What is a 2-way valve?

Any valve with two openings is a 2-way valve. 2-way valves are specific components that can save time and money. These valves have an input and an output port. They’re used in simple on/off applications and variable flow systems with variations in temperature, flow, and pressure. These valves can reduce total operating costs by decreasing absorbed pumping power. It also helps in heating and cooling systems at varying speeds.

2 way ball valve
2-way ball valve

 What is a 3-way valve?

3-way ball valve is a valve that has three openings or ports. Three, four—, and five-way ball valves are applicable as multiport valves. A three-way ball valve is the most common multiport ball valve.

3-way ball valve connects a pipe or conduit to three ports or entrance points for gas or fluid flow (media). These ports are often described as one inlet and two outlet ports. We can say one outlet and two inlet ports, depending on the flow pattern through the valve.

3-way ball valves are popular. They provide a cost-effective and straightforward solution for managing shutdown—also, a flow channel in one valve body. The real benefit of this valve is its cost-effectiveness. This quality is due to its control and shut-off valve function.

brass 3 way valve
Brass 3-way valve

The Intricacies of Valves: 2-Way vs. 3-Way Valves Explored

In the intricate world of fluid dynamics and control systems, understanding the type of valve can be the difference between a seamless flow and a potential mishap. Among the most commonly debated choices are 2-way and 3-way valves. Let’s delve into the nuances of these valves and shed some light on their applications, advantages, and selection criteria.

Understanding the Basics:

Before diving into the complexities, it’s essential to understand the fundamental definitions of the two valves.

  • 2-Way Valves: These are straightforward devices with two ports, often labeled “in” and “out.” They function to either stop or allow the flow, effectively acting as an on/off switch for fluids.
  • 3-Way Valves: A tad more complicated, these valves have three ports and can serve several functions. They can mix, divert, or switch the flow between different ports depending on their design.

Core Functionalities:

  • 2-Way Valves: Primarily used to shut off or fully open the flow. They are simplistic but crucial when you want full port or no flow.
  • 3-Way Valves: They can divert flow from one port to another or mix flow from two ports and out of a third. Their versatility makes them ideal for applications where flow redirection is necessary.

Difference between 2-way and 3-way valves?

Valve plays an essential role in almost all industrial processes. These devices redirect, regulate, or control the flow of liquids. It’s done by opening, closing, or partially closing flow channels. It comprises the operation concept, setup, power supply, and application. These Valves are available in various forms and sizes, each with unique features. The flow volume often determines the valve required for a given application. It is also decided by the degree of control needed.

Industrialists use these valves based on the number of ports they have. 2-way valves, as their names suggest, have two ports: an intake port A and an output port AB. In contrast, three-way valves have ports A, B, and AB.

2-way valves can help with variable flow systems. The flow system has pressure, temperature, and flow fluctuations.

These valves regulate operating temperatures by responding to specific fluid characteristics. It is via sensors to maintain the desired temperatures and flow.


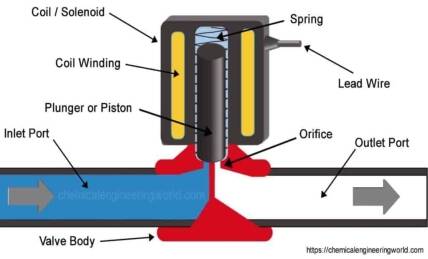

From SupplyHouse.com

The relative motion of the plug determines the amount of fluid permitted to leave the outlet (port AB) when fluid arrives at the inlet ( port A) of a 2-way valve. The valve is completely closed from port A to AB When the plug and shaft are oriented up. Also, when the plug and spindle are fully down, the valve is accessible from A to AB. The B port is fully covered with a blind flange on all 2-way valves. Unique plug places will control the flow rate across the vale.

2-way valves work in fundamental on/off applications, often limited to isolation valves. In many procedure safety systems, these valves are an essential component. They may turn off fluid flow to a specific place in an emergency.

As 2-way valves, 3-way valves include the same elements. What distinguishes it from the 2-way valve is an extra port. Three ports are labeled “A,” “B,” and “AB.” Port “AB” is common to the “A” or “B” port, by pneumatic or electric actuators like 2-way valves. The 3-way valve assemblies can also be additionally regulated.

To deflect the fluid flow, these types of valves work. Also, mixed fluids from two inlets are always distributed through a single outlet. It redirects the flow when used as mixing valves or transmitted through port AB. But, different temperatures and pressures are always combined and sent through an outlet When used in a single-inlet, two-outlet system. Then, they can work as diverting chilled water valves. It diverts a part of the flow in a different direction. 3-way valves are often installed in both the supply and return lines. In the supply line, a diverting valve works. Globe valves need separate bodies to mix or divert, whereas ball valves may be piped. In general, diverting valves are often more costly than mixing valves.


From Valworx

Application Insights:

  • 2-Way Valves:
    • It is ideal for basic shut-off purposes in residential plumbing.
    • Common in simple irrigation systems.
    • Used in industrial processes where a straightforward flow/no-flow situation is desired.
  • 3-Way Valves:

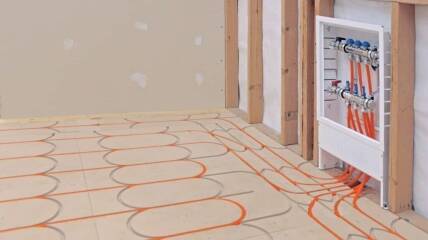

    • Central heating systems where you need to mix cold and hot water.
    • Industrial processes requiring fluid distribution to multiple locations.
    • Any application where fluid redirection without shutting off the system is essential.

Pros and Cons:

  • 2-Way Valves:
    • Advantages: Simplistic design, fewer chances of malfunction, cost-effective.
    • Disadvantages: Limited functionality; they can only stop or allow flow.
  • 3-Way Valves:
    • Advantages: Versatile with multiple functionalities, allows for sophisticated fluid handling, perfect for systems requiring modulation.
    • Disadvantages: More complex, potentially higher maintenance, costlier than their 2-way counterparts.

Selection Criteria:

  • System Requirements: If your system requires basic flow control, a 2-way valve is apt. However, for more intricate fluid management, a 3-way valve becomes indispensable.
  • Cost Considerations: 2-way valves are generally more affordable due to their simplistic design. However, the versatility of 3-way valves might justify their higher price in complex systems.
  • Maintenance: 3-way valves, being more complex, might require more frequent check-ups and potential servicing.

Innovations and Future Prospects:

With the advent of intelligent technologies, both 2-way and 3-way valves are seeing innovations. Smart valves, equipped with sensors, can now communicate with central control systems to provide real-time data and allow for automated adjustments.

2-Way and 3-Way Valves: Size and Raw Materials Unveiled

When discussing 2-way and 3-way valves, understanding their size and their raw materials is critical. These factors are pivotal in determining a valve’s application, durability, and cost.

Size Considerations:

2-Way Valves:

  • Standard Sizes: Typically range from 1/4-inch to 4 inches. However, industrial applications might necessitate larger sizes, even up to 12 inches or more.
  • Size Selection: The size is typically determined by the flow rate requirement and the pipe diameter in the system. Matching the valve size with the pipe diameter is ideal for a more streamlined flow with minimal resistance.

3-Way Valves:

  • Standard Sizes: They usually start at 1/4-inch but can go up to 6 inches or more. Their size range slightly varies from 2-way valves due to their intricate internal diverting or mixing flow design.
  • Size Selection: Since 3-way valves are employed in systems that require distribution or mixing of the flow, it’s essential to ensure the size can handle the flow rates without causing excessive pressure drops.

Raw Materials:

Different applications and environments require valves made from materials that can withstand the respective conditions, be it high temperatures, corrosive substances, or specific flow mediums.

2-Way Valves:

  • Brass: Widely used due to its corrosion resistance and malleability. Ideal for water-based systems.
  • Stainless Steel: Chosen for its incredible strength and resistance to both corrosion and high temperatures. Often found in industrial applications.
  • PVC: Preferred in systems that require corrosion resistance, especially against chemicals. Common in agricultural and chemical industries.
  • Bronze: This alloy, primarily copper, boasts excellent resistance to corrosive agents and is widely used in marine applications.
  • Cast Iron(Ductile Iron) and zinc Alloy: These are often used in more massive industrial valves for their durability and strength.

3-Way Valves:

  • Brass: Popular for domestic water systems, especially in heating and cooling applications.
  • Stainless Steel: Essential for systems that might deal with corrosive substances or require sterilization, such as in the food and pharmaceutical industries.
  • Bronze: Due to its corrosion-resistant traits, it’s a favored choice in marine and specific industrial setups.
  • PVC: Given its chemical resistance, it’s ideal for systems dealing with various chemicals.
  • Cast Iron & Zinc Alloy: Suitable for larger valves in industrial settings where robustness is a priority.

A valve’s size and raw material are not just arbitrary choices; the application’s specific needs determine them. Every detail matters, whether it’s the fluid type, the environment, or the pressure and temperature conditions. As technology and industrial requirements evolve, we can expect further innovations in valve materials and designs. Always ensure you choose the right size and material combination, tailored to your system’s unique requirements, for optimal performance and longevity.

What are the components of 2 way valve and 3 way valve?

2-Way Valve Components

2-way valves are basic devices that allow or halt fluid flow. Here are the typical components:

  • Body: The main part of the valve contains the internal components.
  • Port refers to the openings in the valve body where the fluid enters or exits. A 2-way valve has two ports – an inlet and an outlet.
  • Disc or Plug: This is the internal component that moves to start or stop the flow of the fluid. When the valve is “closed,” the disc or plug blocks the flow path. When the valve is “open,” it moves out of the way to allow fluid flow.
  • Stem: This connects the actuator or handle to the disc or plug.
  • Seat: The part against which the disc or plug seals when the valve is closed.
  • Actuator/Handle: This is the component used to operate the valve manually or automatically. For 2-way valves, turning the actuator or handle 90 degrees is usually sufficient to open or close the valve fully.
  • Bonnet: The top part of the valve body, covering the internal components.
  • Packing: Ensures a watertight seal around the stem to prevent any leakage.
  • Gland: A component that compresses the packing into the bonnet to ensure the seal remains tight.
Ball valve whole spare parts 2 way
Ball valve whole spare parts 2-way

3-Way Valve Components

3-way valves are more complex and can direct flow between two different ports or mix flow from two ports. Their components include:

  • Body: Like the 2-way valve, the body contains the valve’s internal components.
  • Ports: A 3-way valve has three ports, typically labeled as “A,” “B,” and “Common” or “C.” Depending on the valve design, it can allow flow between A and C or B and C or mix flow between A, B, and C.
  • Disc or Plug: It can rotate or move to control the flow between the ports.
  • Stem: Connects the actuator or handle to the disc or plug.
  • Seats: These are the areas where the disc or plug seals. In a 3-way valve, there are multiple seats corresponding to each port.
  • Actuator/Handle: Depending on the valve design, the valve may require more than a 90-degree turn.
  • Bonnet: Covers the valve’s internals.
  • Packing: Ensures a watertight seal around the stem.
  • Gland: Compresses the packing.

3-way valves often have a more complex internal mechanism due to the need to redirect flow in multiple ways. These valves are commonly used in applications such as mixing liquids from two sources or diverting flow from one source to two different destinations.

3 way flow types
3-way flow types

Comparison of Multiple-Way Valves: Distinguishing Between 2-Way, 3-Way, and Multi-Way Valves

Flow control and management are central to the efficient operation of numerous systems, from household plumbing to complex industrial applications. Choosing between 2-way, 3-way, and multi-way valves becomes crucial. Here’s a deep dive into these valves, comparing their attributes and clarifying their functionalities.

The 2-Way valve:

The essence of simplicity, the 2-way valve operates with a fundamental binary mechanism: open or closed. Primarily found in rudimentary flow control systems like household taps, these valves are designed with an inlet and an outlet, with a disc or gate managing the flow in between. Materials like brass and cast iron are typically used for construction, providing a blend of durability and efficiency. The key strength of a 2-way valve lies in its straightforwardness, making it a staple in basic flow control situations.

The 3-Way valve:

Stepping up the complexity ladder, the 3-way valve offers more than an open or closed state. Characterized by its ‘T’ or ‘L’ shaped ports, it can divert, mix, or switch flow directions. This ability to offer multiple flow paths makes it a favorite in systems that require fluid mixing or direction changes. Think of central heating systems or specific industrial processes. Material-wise, these valves can be seen constructed from bronze, cast iron, and even specialized materials like zinc alloys to cater to unique application demands.

Multi-Way Valves:

Brass multiple way valves
Brass multiple-way valves

Entering the domain of intricate flow control, multi-way valves come into play when systems require more advanced flow path variations. Their design is naturally more complex, addressing specific needs that involve multiple fluid routes or combinations. These valves are typically associated with more intricate systems, such as complex HVAC configurations or specialized industrial applications. The construction materials can range widely, from bronze and cast iron to even more advanced choices depending on the application’s requirements.

The world of flow control is vast, and the choice between these valves can often dictate the efficiency and effectiveness of a system. By understanding each type’s core differences and strengths, one can make informed decisions, ensuring the flow remains uninterrupted and optimal.

Conclusion:

Both 2-way and 3-way valves have their distinct places in fluid control systems. While the 2-way valves offer simplicity and reliability, the 3-way valves provide versatility and intricate control. Understanding the intricacies of each, along with their pros and cons, will guide users in making informed decisions tailored to their specific needs.

Remember, in fluid dynamics, the devil is in the details. Choosing the right valve can lead to efficient system performance, cost savings, and reduced maintenance woes.
