Thermostatic Valve for Towel Radiator

Parameters of Thermostatic Valve for Towel Radiator

It is suitable for HVAC and status control of the water system. The valve body adopts the ISO215 standard platform, the actuators using a synchronous machine that drives the gears steady.

Additional information

Materials:

CW617N, H58-3

Finising:

Original, Polishing and Chrome plated

Size:

1/2"

Thread connection

BSP, NPT

MOQ:

500pcs

Medium temperature

2 ℃ -95 ℃

Lead time:

30 days

Warranty:

24 months

Details about Thermostatic Valve for Towel Radiator

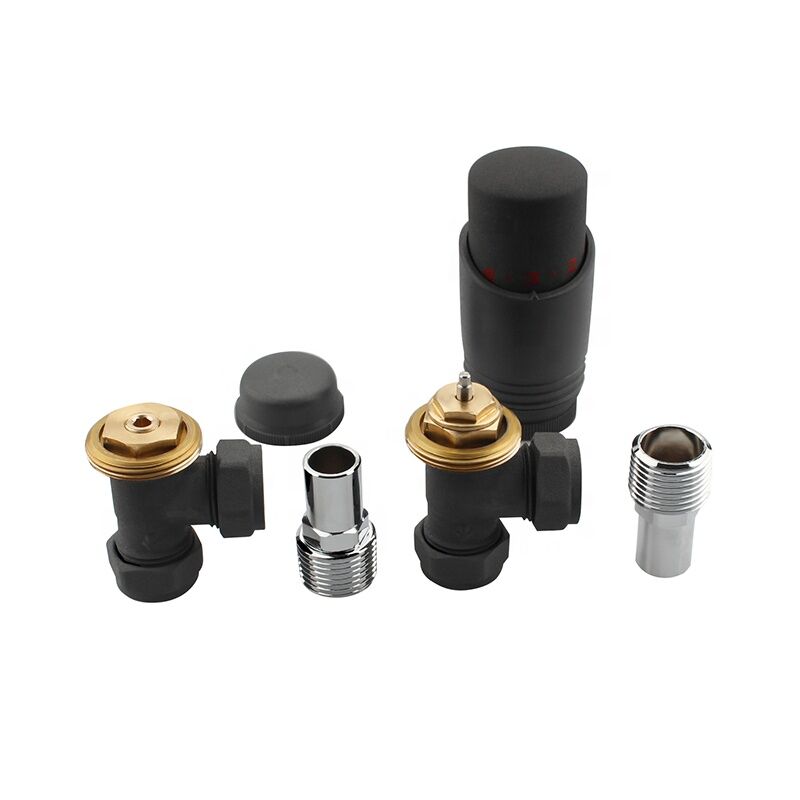

TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiator

JX-0322

TRV Straight Thermostatic Radiator Valve for Center Heating System

Material; Brass H58-3 or CW617N

Processing Forging, CNC Machining
Size;G1/2”*15mm

Working Medium Hot/Cold Water
Range of Temperature Adjustment 0 ~ 28℃
Range of Scale 0 ~ 5
Max Working Pressure 10 bar
Max Pressure Difference 0.6bar
Max Working Temperature 50℃
Max Medium Temperature≤ 100℃

Influence of Pressure Difference 0.4K

Influence of Temperature Difference;0.5K

Material Details for Each Part
Brass Body, Brass Insert, Copper Sensor Element, Brass Nut, SUS631-17-7H Spring, ABS Cover

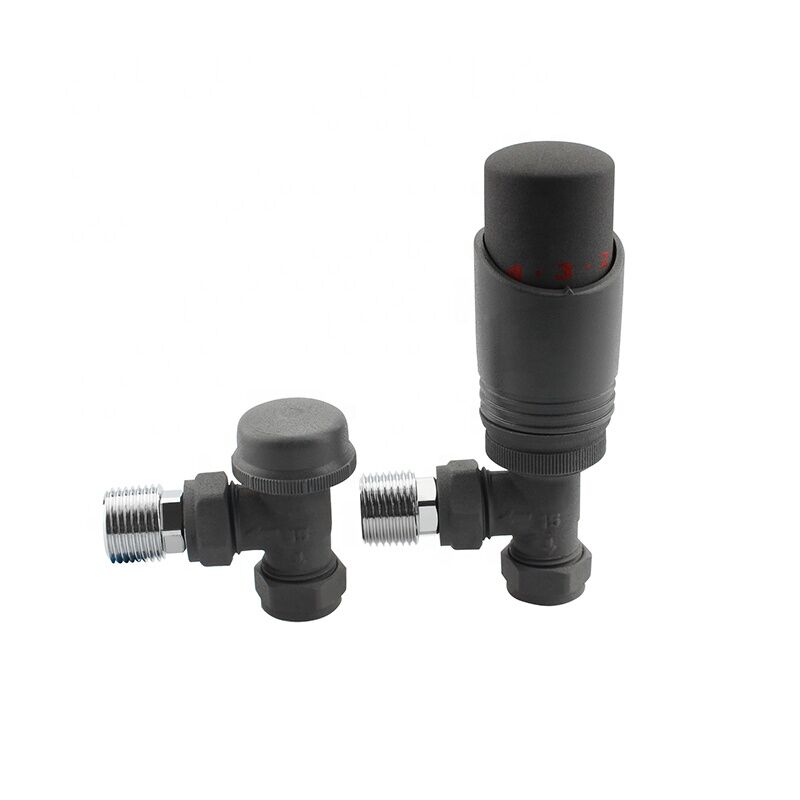

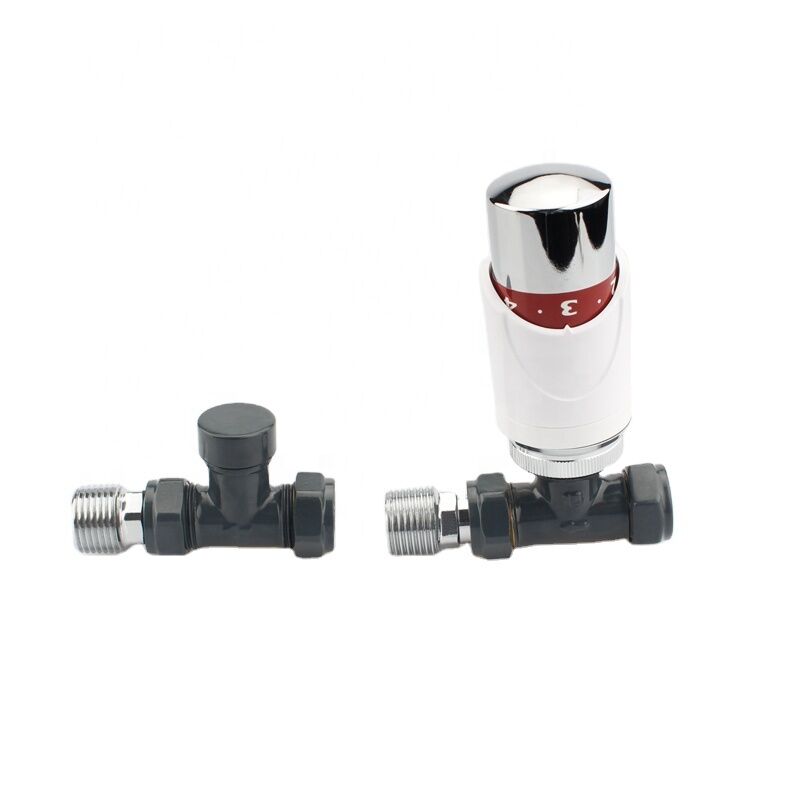

Three colors for more match options/White/Anthracite

High precision machining, top quality polish, and chrome/paint finish

A sensitive Thermostat Head, according to EN215, makes the temperature change

What’s a TRV valve?

A TRV, or Thermostatic Radiator Valve, is a type of valve used in heating systems, especially on radiators within central heating setups. TRVs are designed to control the temperature of individual rooms by regulating the flow of hot water to the radiators. Here’s a more detailed look at TRVs:

Function:

TRVs contain a sensor that reacts to the ambient air temperature. When the room temperature changes, the sensor either expands or contracts. This action will open or close the valve, regulating the flow of hot water to the radiator and thus adjusting the room’s heat output.

Components:

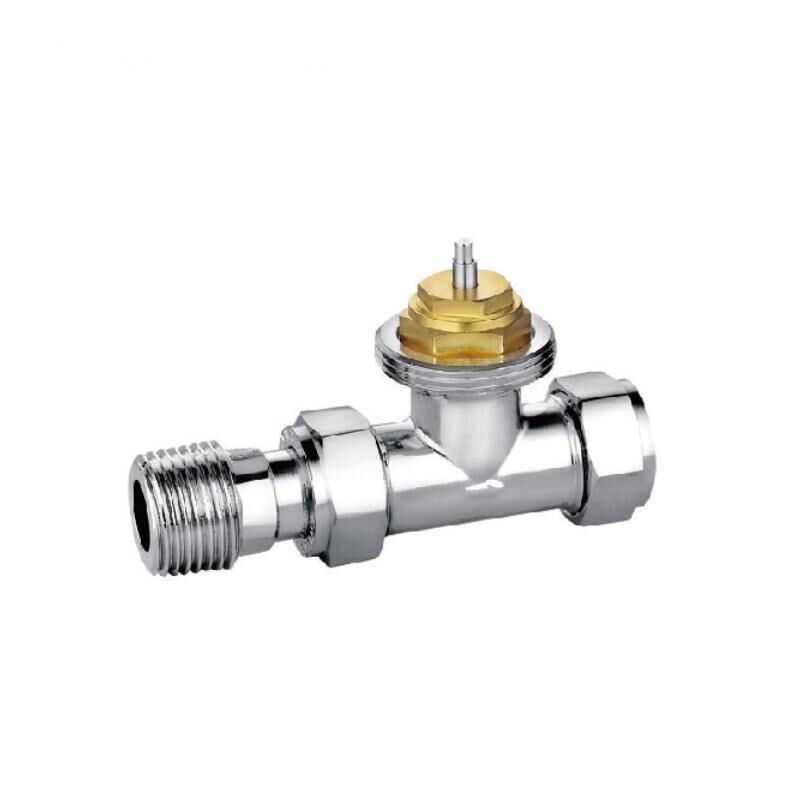

  1. Valve Body: This is the main part attached to the radiator, which regulates water flow.
  2. Thermostatic Head: This contains the temperature-sensitive element (often wax or liquid-filled) that expands or contracts based on the surrounding air temperature.
  3. Temperature Scale: Typically marked from 1 to 5 or in degrees, users can set the desired room temperature.

Benefits:

  1. Energy Efficiency: TRVs can save on energy bills by regulating room temperature and preventing overheating.
  2. Individual Room Control: Users can set different room temperatures according to their preferences.
  3. Automatic Regulation: TRVs maintain the room temperature once set without requiring manual adjustments.

TRV Straight Chrome

TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiators is the perfect solution for anyone looking to update their existing radiator system. This valve allows you to set the desired temperature and keep it constant, providing energy savings and added comfort. It features a stunning chrome finish that looks great in any setting, modern or traditional.

The TRV Straight Chrome thermostatic valve is designed to fit a standard towel radiator and has all the components needed for installation. Easy to use and intuitive, this product will keep your home warm while saving you money on energy bills. The adjustable temperature control means no more overheating or over-cooling your home – just perfect temperatures throughout! Additionally, the durable construction ensures longevity in even the harshest environments.

Trv Valve
Trv Valve

Features: Quality, Durable Design

The TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiator is the perfect addition to any bathroom. This high-quality item comes with a durable design and offers reliable performance that can last for years. This thermostatic radiator valve provides maximum efficiency in temperature control, featuring top-of-the-line materials and advanced technology. Its chrome finish adds a stylish touch to any room and helps it blend into its surroundings.

The device is simple to install and use, making it an ideal choice for any homeowner looking to upgrade their heating system. It also features adjustable flow rates, allowing you to customize the amount of heat your towel radiator produces. The TRV Straight Chrome Thermostatic Radiator Valve offers an efficient way to heat rooms quickly while saving energy costs in the long run.

Benefits: Temperature Control, Efficient Heat Retention

Temperature control and efficient heat retention are two main benefits of having a TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiators. This specialized valve is designed to give you complete control over the temperature in your home so that you can set it to whatever level makes you comfortable. Furthermore, these valves maintain efficient heat retention throughout the year, allowing users to limit how much hot water is used, saving energy and money.

The TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiators has been designed with user convenience in mind, making it easy to use and install. It also ensures that no water is wasted by using only what’s necessary for heating so that efficiency remains at its highest.

Installation Requirements: Plumbing Knowledge and Tools

The TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiator is the perfect solution for homeowners looking to install a towel radiator. A stylish chrome finish offers functionality and aesthetics in one package. However, specific knowledge and tools are needed to ensure a successful outcome, like any installation project.

Plumbing knowledge is essential when installing this valve, as a proper understanding of temperature control and water pressure are critical factors to consider when making the connection. Additionally, basic technical skills in operating various plumbing tools should be known before installation.

In terms of specific tools, adjustable wrenches, and spanners will be necessary for attaching pipes and turning valves. Pliers may come in handy, too, if any nuts or bolts need tightening during the process of connecting the valve correctly with other components of your radiator system.

Usage Tips: Regular Maintenance and Cleaning

Properly maintaining and cleaning your TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiator can help ensure its long-term functionality and optimal performance. Using the right products, tools, and methods is key to keeping your radiator valve in top condition over time. Here are some helpful usage tips to keep in mind:

Regarding regular maintenance, you should check that all components of your radiator valve are tightly screwed together before and after each use. This will prevent any leaks or other problems from occurring. Additionally, lubricating moving parts with a light oil every three months can help maintain smooth operation. Consider using the plumber’s tape on any connections between components for further protection from leakage.

To properly clean the surface of your radiator valve, start by dusting off the area with a soft cloth or brush attachment for a vacuum cleaner.

Conclusion: Optimal Warmth & Comfort

The TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiators is a great way to ensure optimal warmth and comfort in any room. This valve has been designed with the latest technology, so you can be sure it will provide precise temperature control every time. The thermostatic element ensures accurate temperature regulations as it responds quickly to changes in the room’s ambient temperatures. It features an easy-to-read scale that easily adjusts the desired temperature level. Furthermore, this valve is also durable and made from high-quality materials, making it perfect for long-term use.

In conclusion, the TRV Straight Chrome Thermostatic Radiator Valve for Towel Radiators provides superior warmth and comfort without compromising quality or performance.

works of thermostatic mix valves
works of thermostatic mix valves

TRV is a thermostatic radiator valve regulating hot water flow to radiators. TRVs are used in heating systems with central boilers and can be installed by professionals or DIY enthusiasts. A Radiator Valve Regulates the Flow of Hot Water to Radiators. It’s Used in Heating Systems With Central Boilers And Can Be Installed By Professionals Or DIY Enthusiasts. The TRV Straight Thermostatic Radiator Valve for Center Heating System from Aga provides an easy solution for regulating temperature at your desired level compared to older models.

It’s a radiator valve that is thermostatic. It regulates water flow to maintain a constant room temperature and prevent overheating. TRV valves are suitable for domestic heating systems, such as those found in radiators or underfloor heating homes. A TRV replaces your existing manual radiator valve and is easy to install without additional pipework.

TRVs are designed to control the water temperature in your radiator by regulating the hot water that flows through it. This is achieved by opening and closing a valve that routes hot water to the radiator when it needs additional heat and diverting cold water around it. In this way, they act as simple thermostats for your central heating system.
The TRV Straight Thermostatic Radiator Valve for central heating systems has been specifically designed to operate with radiators fitted at either end of a room where one outlet is installed on each side wall or with radiators fitted in a row along one wall (or both).

TRV Straight Thermostatic Radiator Valve for Center Heating System is a thermostatic radiator valve that eliminates the need for manual temperature adjustments by automatically regulating the flow of hot water to radiators. The TRV Straight Thermostatic Radiator Valve can be set to any required temperature and will maintain this setting regardless of fluctuations in room temperature. It is suitable for central heating systems with a separate hot water supply and major heating systems with an integrated hot water tank. A single outlet pipe serves the central heating system and external devices, such as a shower or washing machine. The TRV Straight Thermostatic Radiator Valve has an installation size of 1/2″ (15mm), making it suitable for most applications.

Installation & Usage Tips:

  1. Placement: TRVs should be installed on the inflow pipe of the radiator. They should not be covered by curtains or blocked by furniture, as this can affect their sensing capability.
  2. Optimal Use: TRVs work best when set at a constant level. Frequent adjustments can reduce their efficiency.
  3. Maintenance: Over time, TRVs can become less responsive. They should be checked periodically to ensure they’re functioning properly. Sometimes, cleaning or replacing the thermostatic head can restore proper function.

It’s important to note that while TRVs control the temperature of individual rooms, they do not control the boiler. This is usually the job of a separate room thermostat or a central heating controller.

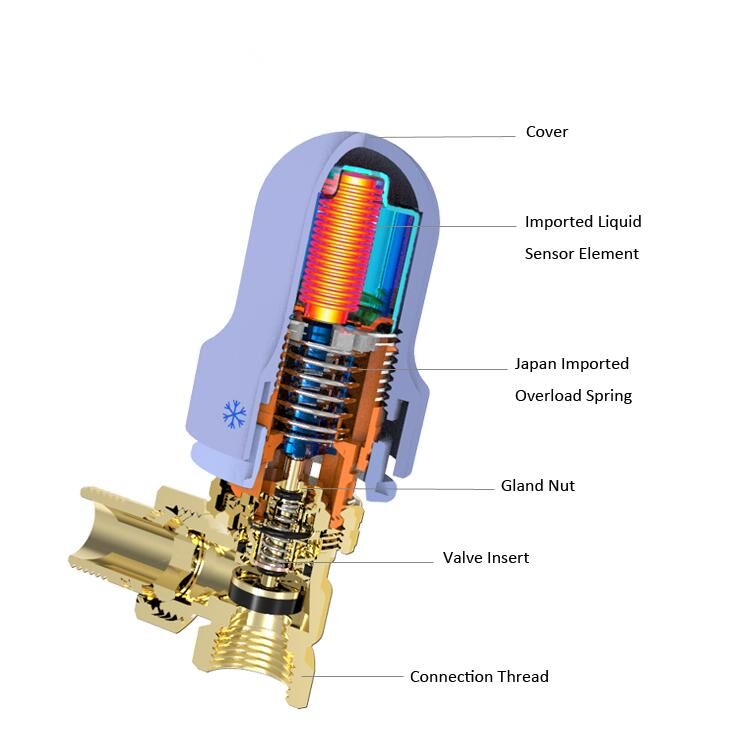

inside instructure of trv valve
Inside instructure of trv valve

Manufacturing Process of TRV Valves:

  1. Material Selection: TRVs are generally made from brass, copper, or stainless steel for durability and efficiency.
  2. Design & Prototyping: The design is initially developed in CAD software and then prototyped using 3D printing or a CNC machine.
  3. Molding & Casting: For mass production, molds are created for casting the metal parts of the valve.
  4. Thermostatic Element: The thermostatic elements, usually filled with a special wax or liquid, are produced under controlled conditions to ensure they react accurately to temperature changes.
  5. Assembly: Components like the valve body, thermostatic head, and internal elements are assembled. Quality checks are mandatory at this stage.
  6. Testing: Rigorous leakage, durability, and functionality testing is carried out. Each TRV should comply with specific industry standards.
  7. Packaging & Shipping: The TRVs are packaged and prepared for shipping after passing quality control.

How to Choose TRV Suppliers:

  1. Experience: Look for suppliers with a proven track record in manufacturing high-quality TRVs.
  2. Certifications: Ensure that the supplier has the necessary industry certifications, such as ISO, CE, etc., which indicate quality and reliability.
  3. Quality Assurance: Verify if the supplier performs rigorous quality checks and complies with industry standards.
  4. Customization Capabilities: If you have specific needs, see if the supplier can offer customization.
  5. Minimum Order Requirements: Ensure the supplier’s minimum order quantity (MOQ) aligns with your needs.
  6. References and Reviews: Ask for and verify references, and look for reviews or case studies that showcase the supplier’s capabilities and performance.
  7. Cost: Obtain a detailed quote and understand the payment terms. Cheaper is not always better; weigh the cost against the quality and reliability.
  8. Delivery Time: Assess the lead times for manufacturing and shipping, especially if you have tight deadlines.
  9. After-sales Support: Good suppliers will offer guarantees and after-sales service for their products.
  10. Sample Testing: Always ask for samples to conduct your tests before placing a large order.

You can select a reliable TRV supplier that matches your quality requirements, budget, and timelines by paying attention to these factors.
