Full Port Ball Valve With Cover Drain

Parameters of Full Port Ball Valve With Cover Drain

Ball valves are designed and built using high-quality standards to ensure unparallel functionality

Additional information

Finising:

Sand blasted

Life time:

150000 times On-Off

Materials:

C37700, H58-3, Lead-free brass

Size:

1/2"-2"

Working pressure

600WOG

Warranty:

36 months

Details about Full Port Ball Valve With Cover Drain

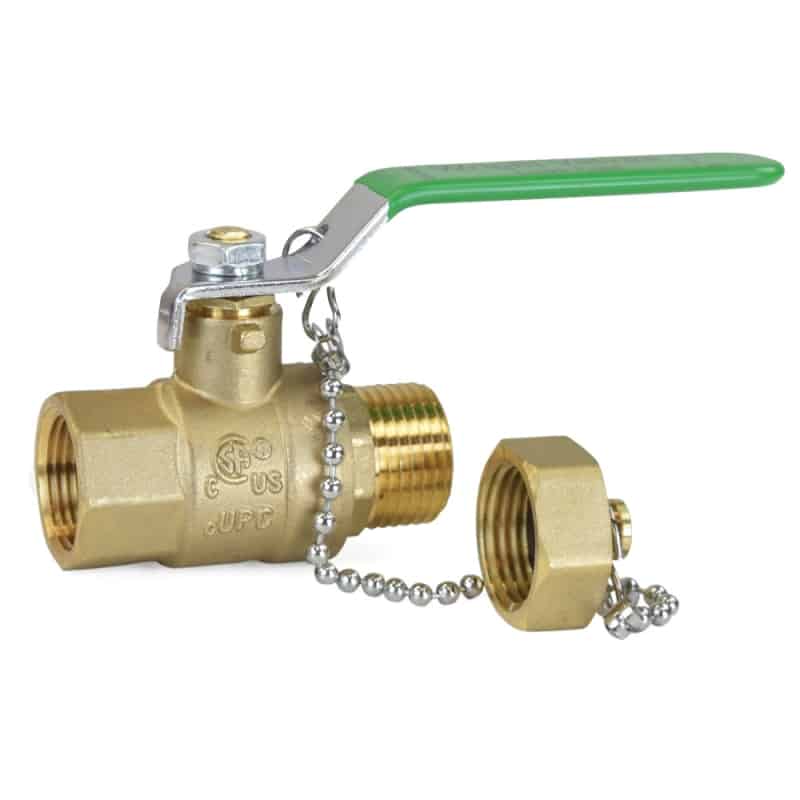

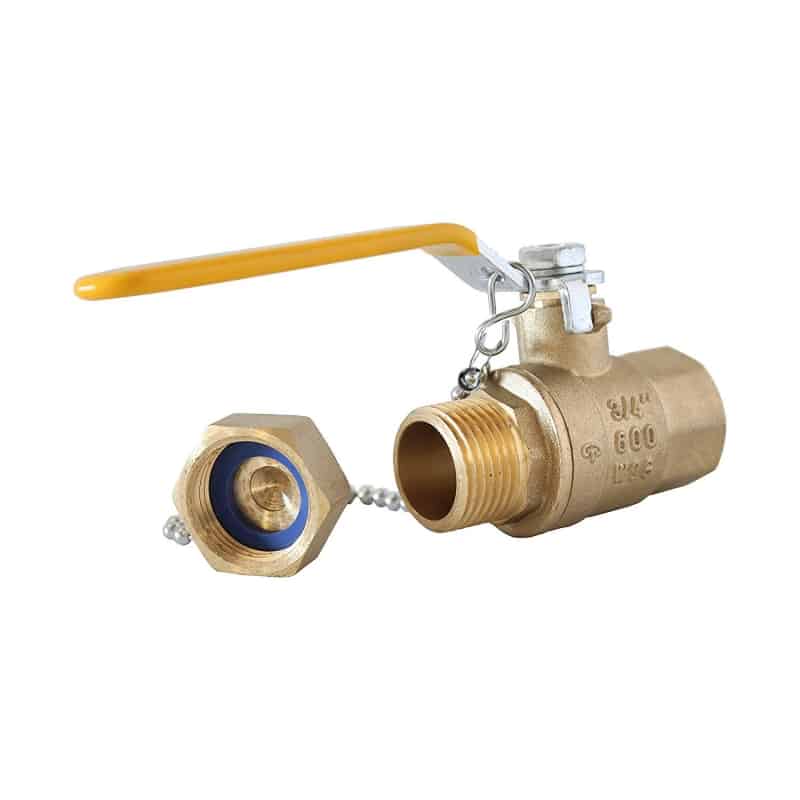

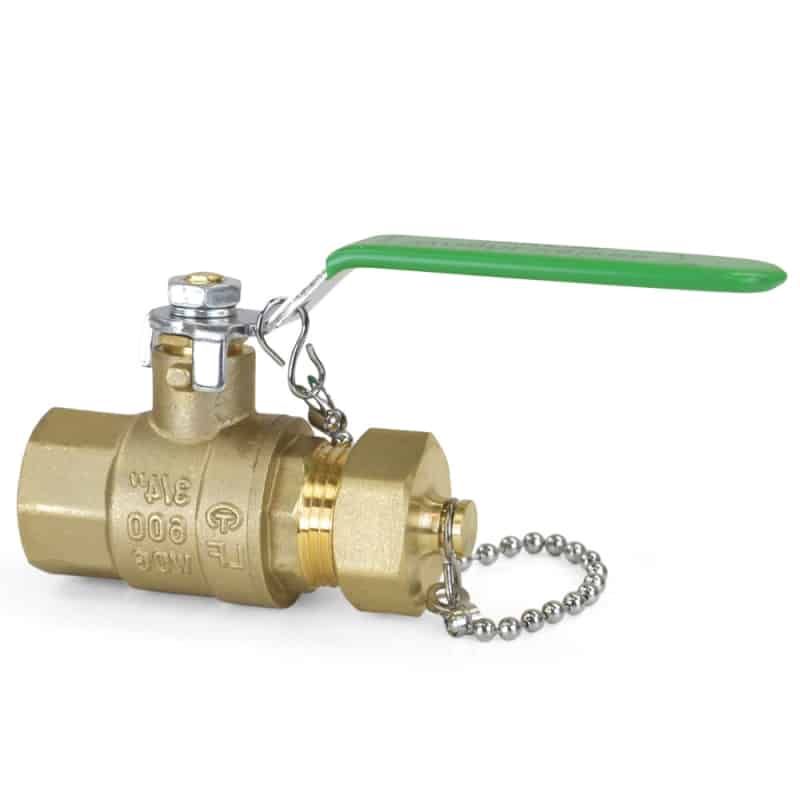

Full Bore Ball Valve With Cover Drain

JX-0439

Full bore brass NPT internally and externally threaded ball valve with cover drain

Ball valve specs

Valve Size

1/2″-2″

Valve pressure

600WOG

Valve Materials

C37700,C46500,Low lead brass

Valve Standards

ASME B1.20.-1983 Pipe Thread

Working Temperature:

From -5 ℃ To +90 ℃

Seat sealing Material:

PTFE

Handle Material:

Stainless steel/Iron

Thread connection:

NPT/BSPT

Quality/valve Certifications

cUPC, CSA

Finish;

Sand blasted

Outlet

Full port

The ball valve with cover drain is ideal for various applications, such as shut-off and control of water, oil, and gas lines. The valve is durable and ensures a tight seal, making it perfect for high-pressure applications. The brass construction is corrosion-resistant, and the NPT threads allow for a secure connection. The valve also includes a cover drain to help prevent leaks.

plumberstar china valves
Plumberstar china valves

The ball valve with cover drain is a versatile and easy-to-use valve perfect for various applications. This valve is durable brass, featuresfull-boree construction for maximum flow, and is NPT threaded for easy installation. The cover drain allows for easy maintenance, and the ball handle makes it easy to operate.

The lock valve with cover drain is an excellent product with many applications. Quickly connects or disconnects two pipes without having to worry about leaks. In addition, the ball valve with cover drain is easy to operate and provides a tight seal that prevents unwanted liquids or gases from escaping. This product is perfect for use in various residential, commercial, and industrial settings.

NPT Full Bore Ball Valve

NPT Full Bore Ball Valve is an important equipment in industrial and commercial water pipe fittings. This particular valve has been designed with a full bore, making it ideal for quick and efficient flow control. It is also constructed from durable brass, ensuring exceptional performance over time. The internal and external threads are NPT for added safety and security within any application.

In addition to its robust construction, this full bore ball valve comes with a handy cover drain that prevents dirt or other debris from entering the system. This ensures consistent and reliable operation even in the harshest of environments. Furthermore, this versatile valve can be used in many applications,s including steam service, water systems, oil lines, and more.



Construction: Materials & DesignFull-bore brass NPT internally and externally threaded ball valves are essential parts of piping systems in a variety of industries. These valves can regulate flow, pressure,e, and temperature in the piping system. Design features such as an internal and external threaded connection, full bore size, cover drai,n, and various other materials provide strength and durability to the valve.

Brass is one of the most commonly used materials when constructing full-bore brass NPT internally and externally threaded ball valves due to its strength, corrosion resistance, thermal stability,y, and cost-effectiveness. The design aspects for construction include a two-part body with an upper chamber connected by threads on both sides and a lower section connected through threads from outside only.

Benefits of Cover Drain

Cover drains are an essential component of a full bore brass NPT internally and externally threaded ball valve. These specialized valves offer numerous benefits, including increased safety and improved performance. Cover drain features provide superior control over the flow of liquids, gases, and steam in various industrial applications.

Cover drains reduce the risk of pipe failure due to over-pressurization by providing a safe outlet for excess pressure. This ensures that any liquid or gas is safely released before it can cause damage to the system. Additionally, cover drains help to eliminate noise caused by turbulent flow within the pipelines, ensuring smoother operation and improved operational efficiency.

Most importantly, cover drains provide additional safety for personnel working on or near pipes due to their ability to quickly isolate hazardous materials from entering other parts of the system.

Advantages of Internal/External Threads

Threads are an integral part of any ball valve, and the type of threads used can affect the performance and efficiency of the valve. Full-bore brass NPT internally and externally threaded ball valves with cover drains offer a superior design that maximizes their effectiveness in many settings.

Internally threaded valves offer several advantages over externally threaded versions. For example, they tend to be more resistant to corrosion due to their enclosed environment. In addition, internally threaded valves are typically easier to install than externally threaded ones since no special preparation is required for installation. Internally threaded valves also have the benefit of providing higher flow rates due to their larger diameter opening compared to externally-threaded counterparts.

Externally-threaded valves also have numerous benefits as well.

Installation Considerations

When installing a full bore brass NPT internally and externally threaded ball valve that covers the drain, it is important to consider the specific needs of the environment in which it will be used. The choice of the valve should meet these requirements while also providing a reliable solution that won’t need to be replaced quickly due to wear or damage. Various factors will influence the decision on which type of valve should be installed. Depending on the desired function, size, temperature, pressure,e and application media can all contribute to the selection process. It is also essential to consider any relevant safety regulations when making this selection to ensure reliable operation and bottom-line performance.

The installation location must also be identified before any purchase decisions are made; different valves require different mounting types and connections for various applications such as airflow, fuel lines,s or water systems.

Maintenance & Troubleshooting

Maintenance and troubleshooting of a full bore brass NPT internally and externally threaded ball valve with cover drain is essential for ensuring safe operation. This type of valve is used in many industries, including oil and gas, plumbing, waterworks, chemical processing,g, and fire protection systems. Proper maintenance helps reduce downtime by preventing unexpected system failures due to malfunctioning valves. To ensure this type of ball valve continues to operate correctly, regular inspection should take place,e as well as troubleshooting any issues that arise.

The first step in maintaining this full-bore brass ball valve is to inspect the open/close mechanism for proper functioning. The lever or handle should move freely through its entire range of motion without sticking or binding. Additionally,y check for leaks around the stem by looking at the stem packing nut, stem o-ring sea,l, or gland flange connection if present.
