Heating systems are undeniably a blessing in the cold winter for comfortable indoor environments. They comprise complex networks of components working together to provide warmth consistently. The valves form an essential part of these heating systems, controlling the flow of hot water and allowing efficient heating. These valves include, among others, lockshield and radiator valves. This blog aims to make people realize the differences between lockshield and radiator valves and to teach them how to make a proper decision for their heating system.

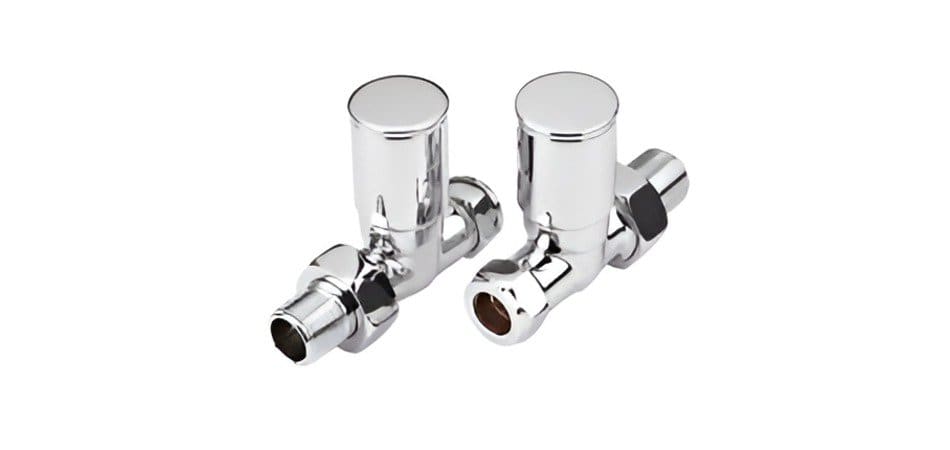

What is Radiator Valves
A radiator valve is an essential part of every heating system. The radiator valves are designed to control the quantum of hot water that enters a radiator. They regulate the temperature in any room, which controls the flow of water in the radiator. There are usually two kinds of radiator valves: manual and thermostatic.
Radiator valves are essential to ensure the heating system is well-balanced and runs efficiently. This ensures that the areas to be heated are not, at some point, scorching while some are cold.

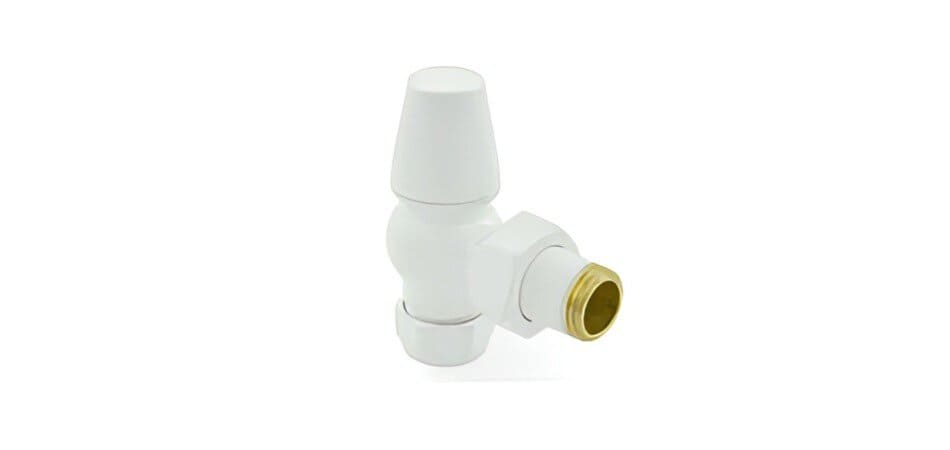

Lockshield Valves – What You Need To Know
The lockshield valve is usually fitted on the opposite side of the radiator from the radiator valve. They control the amount of water leaving the radiator, which is vital in balancing the entire heating system. By adjusting lock shield valves, you can ensure even heat distribution across all radiators in a property.
These valves are often adjusted during the system’s installation and are generally left unchanged during regular operation. This way, it retains the system’s efficiency while removing some of the common problems that have to do with uneven heating and excess energy usage.
Key Differences between Lockshield and Radiator Valves
Functionality
The significant difference between lockshield and radiator valves lies in their functions. Radiator valves control the inflow of hot water to the radiators, directly controlling the room’s temperature.
On the other hand, lockshield valves control the outflow of water from the radiators and balance it to provide uniform heating at all parts of the building. Both valves are crucial in efficiently running the heating system, yet they have different functions.
Design and Components
The radiator and lockshield valve designs are different and involve distinct components. Radiator valves, specifically the thermostatic ones, have a sensor that checks room temperature. Thus, it controls the amount of water in the flow.
In manual radiator valves, there is simply a knob that needs to be turned manually. Lockshield valves were created for fine adjustments. It is usually adjusted using a unique tool. This prevents them from getting unintentionally turned and thus causes an imbalance in the system.

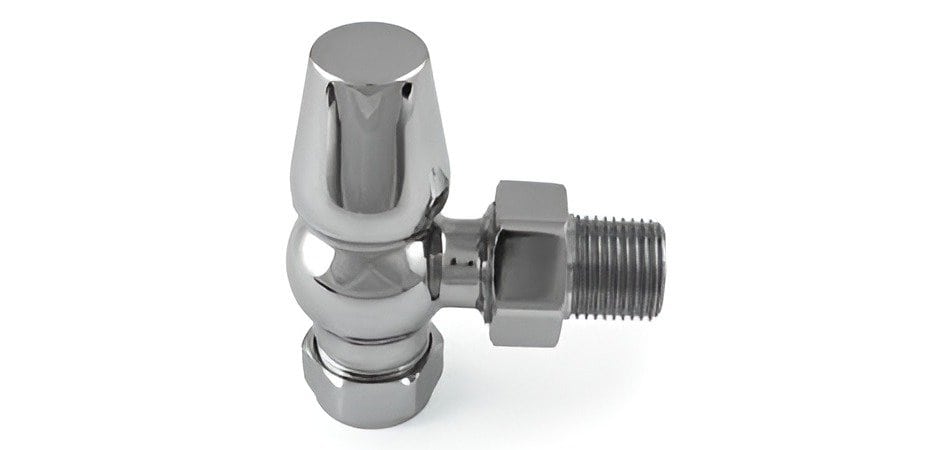

Energy Efficiency
Lockshield valves help to ensure overall energy efficiency because the heating system is balanced. They ensure that there are no temperature variations throughout a building or home. So, it puts less pressure on the boiler and possibly reduces energy consumption.
RVs can improve energy efficiency by controlling the temperature in each room. They stop unnecessary heating and reduce energy waste, reducing the cost of heating bills.
Differences in Structure
Structurally, radiator and lockshield valves have different designs targeted toward their roles. Radiator valves are more accessible and user-friendly to allow easy temperature adjustment.
Lockshield valves are usually hidden or less accessible since they were designed for the initial setup of a system and occasional maintenance rather than for day-to-day use. This structural difference separates these two valves’ roles in a heating system.
Material Differences
Even the materials used to manufacture radiator and lock shield valves differ. Radiator valves are fabricated from sturdy metals, typically brass or chrome, to give them the strength to withstand continuous operation and environmental conditions.
Lockshield valves are built along similar lines but with additional components that allow for the fine adjustment and stability required over a prolonged period, which reflects their role in system balance rather than everyday operation.
Installation and Adjustment
Installation and adjustment processes differ between radiator and lockshield valves. Radiator valves are fitted at the radiator’s hot water inlet and are easily adjusted. Lockshield valves are fitted at the radiator’s outlet and require careful adjustment during installation to ensure the system is balanced. Often, this will done by setting the lockshield valve to allow a specific flow rate, which helps all radiators in the system to receive an appropriate quantity of hot water.
Applications Difference
Radiator and lockshield valves share applications in domestic and commercial heating systems; however, each has its specific applications. Radiator valves will always be necessary where the capability of individual room temperature control is required, which is necessary in many applications. Lockshield valves are essential in maintaining overall balance and efficiency in the heating system; they are vital for more significant properties or systems with more radiators.
Advantages and Disadvantages
Radiator Valves Pros and Cons
Radiator valves have many advantages, such as producing precision in temperature and the option of custom heat in each room. Thermostatic radiator valves provide better energy efficiency since they shut off automatically when the set temperature is attained.
On the downside, however, constant opening and closing of radiator valves can sometimes render them less robust. Manual valves also require constant attention to be set at optimal temperatures.
Lockshield Valves Pros and Cons
The lockshield valves will be crucial in system balancing and provide equal heat distribution, improving overall efficiency. Once set, they require little maintenance, and a stable heating system is provided.
However, adjusting the lockshield valves can be highly difficult, especially without the right tools, and improper setting causes uneven heating and higher energy consumption.
Factors to consider before Choosing the Right Valve for Your System
Understanding Functionality
This is possible by knowing how both a lockshield and radiator valves work. Lockshield valves vary the flow of water that leaves the radiators. They are typically used to achieve a balanced heat output during the system balancing.
Radiator valves set the temperature of an independent radiator. This allows the user to control how much heating occurs within a room. Knowing these fundamental functions makes the choice easy to make.
System Efficiency
Another primary consideration will be efficiency. Lockshield valves play a role in ensuring that the heating system is balanced. Balanced systems are more efficient, ensuring heat is delivered to all parts of the property. Radiator valves, especially thermostatic ones, can further increase efficiency as they allow control over the temperature of individual rooms.
This reduces energy consumption since heating may be regulated at various levels due to periodic usage patterns. Looking at how each valve affects efficiency can realize substantial energy savings.
Usability
Usability is another factor. A Lockshield valve is set at installation and rarely moved, making it primarily “set and forget” for a user. A radiator valve will be regularly used to set the temperature in a room. It should be easy to get to and easy to use. The user must consider who will use the valves and how often they need to be adjusted.
Cost Implications:
The cost comes into consideration. The lockshield valves are pretty cheap, but their installation may have to be done professionally. Radiator valves are still higher, and so are thermostatic ones. However, they do bring in energy-saving returns over some time. There should be a balance between the initial cost and probable future savings. Looking at the cost factors helps in making a cost-effective decision.
Aesthetic Considerations
Aesthetics may also play a role here. Radiator valves are visible and come in different designs to blend with interior decoration. Lockshield valves are generally concealed, as radiator cabinets or other fixtures cover them.
If interior design is essential to a person, the appearance of the valve can make all the difference. If the proper valve is chosen to match or blend with the decor, it really can add to it. The selected valve must work perfectly with the present setting so that no hassle comes at any time in the future.
You can check the specifications given by the manufacturer and consult an expert for compatibility. A decent selection according to compatibility saves from any problem at a later stage.
Conclusion
Knowing the differences between lockshield and radiator valves will help you get the most out of your heating system. Radiator valves directly regulate the temperature of rooms; on the other hand, lockshield valves balance the heat throughout the system. Both are designed to make an indoor environment comfortable yet efficient.
Attention to the specific needs of your heating system and the pros and cons of all kinds of valves will put you in a better position to make wise decisions. This will mean a superior performance of your system and will prolong its life.
FAQs
Can I use lockshield and radiator valves in my heating system?
Yes, lockshield valves will be used for system balancing, and radiator valves, especially the TRVs, will be used for temperature control. Running both will fine-tune your system for performance and efficiency.
How do I adjust a lockshield valve?
It uses a spanner to adjust the valve cap to change the flow through the lockshield valve. Adjustment should be done gradually during system balancing. An expert must install it first so the balance becomes appropriate.
Can I replace a standard radiator valve with a TRV myself?
Replacing a radiator valve with a TRV is relatively easy for someone with basic plumbing skills. Still, if you have never done it before, you may want to get professional help to avoid possible leaks.
