What is the Ball Type of Faucet?

In this blog post, you’ll read:Ball-type faucets are very usual in kitchen sinks and were the first kind of washer-less faucet. They are recognizable by their only handle that moves over a round ball-design cap right beyond the base of the spigot spout.
Table of Contents

Ball-type faucets are very usual in kitchen sinks and were the first kind of washer-less faucet. They are recognizable by their only handle that moves over a round ball-design cap right beyond the base of the spigot spout. The ball faucet has one handle that commands a unique metal or plastic ball inner the faucet body. This ball has slots, chambers, and spring-loaded rubber seals and O-rings. Liable on the ball’s location, the ball/lever assemblage controls the mixing temperature. And flow of the water coming out of the faucet.

Yet the outer part of the faucet itself is as vital as other kinds of faucets. Such internal workings may not be as strong and need more care than others. Hence the number of parts that make up this kind of faucet, ball faucets tend to discharge. Infect more than other washers- fewer faucets like a disc or cartridge faucets. On the casual side, because it is an ancient technology, the ball faucet is one of the least costly kinds of faucets.

1143

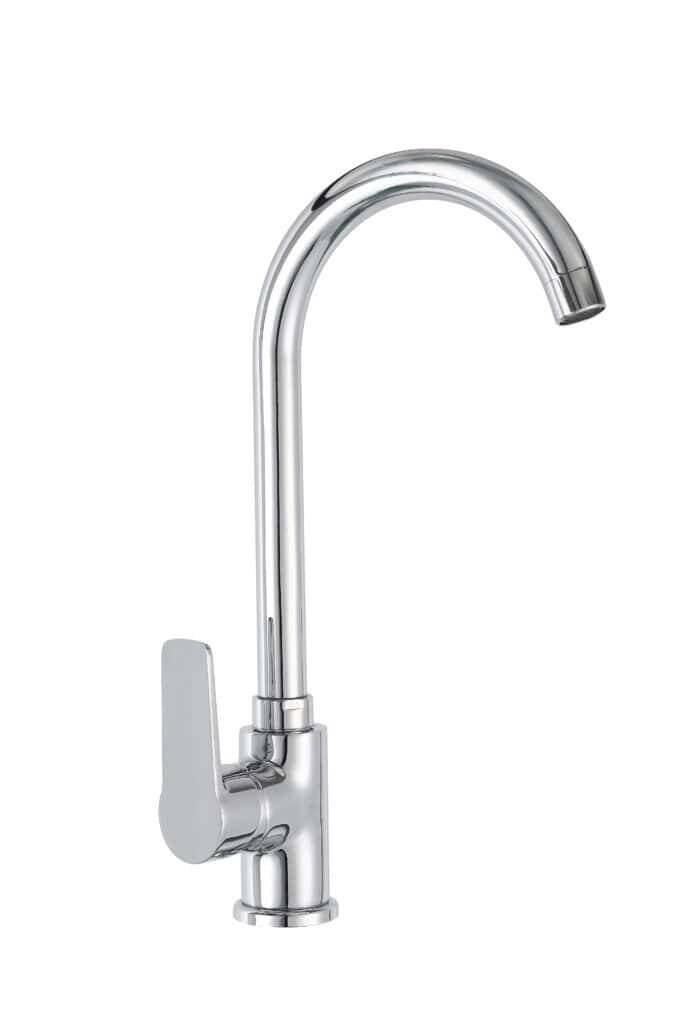

kitchen sink mixer

Installation Tips

Step 1: Shut off the water supply by disconnecting the valve under the sink.

Step 2: Untie the faucet’s handle with an Allen twist and eliminate it.

Step 3: Stiffen the locking collar by twisting it circular. If the leak stops, swap the handle. If the leak drops from the faucet spout: see the next stage.

Step 4: Use a groove and tongue set of pliers or a pipe wrench and eliminate the top cap. Eliminate the cam, cam washer, and regulator ball.

Step 5: Swap the ball if it is broken

Step 6: Take spring and rubber valve seats with a blade screwdriver from their vessels.

Step 7: Eliminate the O-ring and faucet spout. Oil a new O-ring and put it over the faucet base while propelling it down into the groove.

Step 8: Place back the spout over the O-ring until it is on the base of the faucet.

Step 9: Fix the spring and new valve seat by putting the spring into the rubber seal.

Step 10: Fix a top cap and a new control ball.

Step 11: Return the water source and review it for leaks.

What are the Advantages of Ball Type Faucet?

  • It has an aesthetic ad modern look.
  • It became the first washer-less fixture kind.
1141
Ball type faucet

This faucet has only one handle for both cold and hot water. Mostly, it is set in the sink but rises gradually in the bathroom. The water’s pressure flow rate, temperature, and pressure rely on where you placed the handle. Inner to the body of the ball, the fixture is the ball assembly.

This pack is on the framework of the internal spring right where the water flows through. Yet, the ball has various slots created into it. These align with the cold and hot water streaming via the fixture.

Main Uses

Kitchens and bathrooms, mainly if they are in public places. And restaurants that see enormous capacities of people. They are calm to use and only need to rotate one handle rather than two.

What are the Main Causes of Leaky Ball Type Faucets?

There are several more causes of drippy faucets than you may imagine. Here are the focal five reasons:

A Damaged Cartridge

If you have a faucet with two handles, one for cold and the other for ho water, then you have a cartridge-style faucet. The cartridge is a valve on each handle that commands the water flow into the faucet spout. If your tap is leaking water, this signals loss to the cartridge.

2002a
brass cartridge faucet

Broken Washers

A usual cause of a leaking faucet is damaged washers. Washers rest opposite the valve seat, and friction can cause washers to exhaust. This then leads to dripping. If a washer is the incorrect size or not fixed right, it can also lead to dripping.

Water Pressure

If you observe that the faucet in your toilet only drips water throughout certain times. And when your faucet’s handles change a certain way, then it can be your home’s water pressure that starts the leaks.

Faulty O-Ring

An O-ring is placed in the basin faucet. It is a tiny disc devoted to the stem screw to grip the tap’s handle in place. Similar to washers, O-rings can get damaged or loose. If one of your faucet’s handles is dripping, this is maybe the cause.

Deteriorated Valve Seat

If your fixture leaks from the spout, it can be the valve seat. The valve seat links the tap to the fixture. Residue can build up and rust the center, affecting a leak.

These faucets have no old-style washers that drip. However, they do have spring-laden rubber seals. These faucets may start to drip when the seals dry up or when the springs are imparted. Or when the rotating ball becomes cleft or gets a mineral buildup. The spout has rubber O-rings that can dry out and drip around the base of the faucet.

How to Repair the Ball-Type Faucets?

Repairing a leaky faucet is a very usual home sanitation repair. Yet, there is a varied diversity of faucet types in the house. Even this simple mend can seem a bit scary. For instance, a single-handle faucet may be either a cartridge faucet or a disc faucet, and the mends are

diverse for each kind, even though they look very alike from the outside. And each faucet scheme may have deviations from producer to producer. A ball faucet may drip due to worn internal parts.

Suppose the faucet drips from the base around the bottom of the spout. So, this is generally affected by a worn O-ring at the bottom of the faucet body.

If the faucet is dripping from the tip of the aerator or spout, then the lever ball is not commanded. Or the spring-loaded rubber seals. In this situation, the rubber seals may be shabby. Though the springs may damage, or the control ball itself broken.

To find out the reason for the leak, you’ll need to disassemble the faucet and check the components. For simplicity, you may select to replace all parts. Yet, rather than diagnosing the specific reason why the faucet is leaking.

Faucet mend kits offer many diverse ball faucets. And they contain everything you will need for mending. The kits are precise to firm models, so purchase one for your exact model and make. Some kits include the control ball assembly. However, others have only the seals, springs, and O-rings. The ball may come in a brass or plastic form; the brass ball types are a bit costlier but last longer.

Most mending kits include cams, O-rings, cam washers, and rubber seals. Yet, it is a little compliant tool with an Allen wrench on one end and a spanner tool on the other. Only for stiffening the faucet locking ring.


From The Fixer



What You’ll Need

Equipment / Tools

· Allen wrench

· Channel-lock pliers

· Screwdrivers

· Stanley knife

Materials

· Ball faucet mending kit (specific to faucet model being repaired)

· Spare control ball (if needed)

· Heat proof plumber’s grease

Instructions

  1. Turn off the Water

Close off the main water supply to the faucet. The cold and hot water shut-off valves will be set below the sink. In some cases, when you can’t find the fixture shut-off valves. You will have to turn off the main shut-off valve directing water to the entire home.

Once you’ve shut off the water, switch on the faucet to confirm the water is off and to release any remaining moisture.

1125
brass ball type mixer
  • Remove the Faucet Handle

Through the Allen wrench in the mending kit, untie the handle by rotating the set screw anti-clockwise. Eliminate the solitary lever handle. This will uncover the faucet top cap.

  • Tighten the Locking Collar

If the faucet is dripping from the base of the faucet spout, use the special spanner wrench. Yet, unless to stiffen the locking collar by rotating it clockwise. If the drip stops, you can put the handle back on the faucet and call it a day. If the leak lasts or the tap is dripping from the spout, then stay with the following steps.

  • Remove the Top Cap

Utilizing channel-lock pliers, hold the knurled top cap. And rotate it counter-clockwise to eliminate it. (Covering masking tape around the lower and upper jaw of the plier can avoid a loss to the cap’s finish.)

  • Eliminate the Ball Assembly

Once the top cap detaches, the cam will be bare. This is the plastic piece with a lever stabbing through it. Eliminate the cam washer, cam, and ball assembly.

Once detached, check the control ball for wear. If it is damaged or scored, swap the ball as part of the mending. Either a brass or plastic ball can use.

  • Remove the Valve Seals

Reach down and eliminate the rubber valve seals through a flat-blade screwdriver. And springs from the ports in the base of the faucet body. Put care into how the springs are concerned with the inner rubber seals. Usually, the springs are located so the narrow end faces down into the rubber seal.

  • Remove the Faucet Spout

Next, eliminate the faucet spout by lifting it and twisting it off; it may need a slight tug to remove. Eliminate the O-ring around the base of the faucet body. So by prying behind it with a screwdriver or cutting it with a utility knife. Be cautious not to miss the body of the faucet.

  • Replace the Spout O-Ring

Take the new O-ring from the repair kit and coat it with heatproof plumber’s grease. Place the O-ring over the faucet base and slip it down till it relaxes into the groove around the faucet body. Reattach the faucet spout by pressing it back over the O-ring until it is seated on the faucet base.

1102
kitchen ball type faucet
  • Install New Valve Seals

Fit the springs and new valve by installing the spring each plastic seal. Yet, plunge at the beneath of the spigot body. You need to flair them into an area with the screwdriver’s tip.

  1.  Install the New Ball

Then, fit the new control ball by adjusting the stake to the area on the fixture lodging. Place the cam washer over the ball and switch, followed by the cam. The cam, as a rule, has an alignment grinch that fits into a score in the fixture body. Press the cam entirely into the right spot.

  1.  Reassemble the Faucet

Fit the knurled top cap by stringing it onto the fixture body and twisting it clockwise with channel-lock pliers until cozy. Avoid over-fix, as this can make the ball tie and stick inside the fixture.

Reattach the single switch handle over the stem of the ball, and secure it by fixing the Allen screw.

  1.  Test the Faucet

Twist the water supply on, then, at that point, work the fixture to check for spills. In the case of spilling, it is typically because the valve seals are not as predicted in the ports or the knurled top cap isn’t adequately fixed.
