PVC Ball Valves Threaded Vs. Socket Ball Valve

In this blog post, you’ll read:PVC ball valves are used as plastic stop valves. The valve contains a rotating ball with a hole in the center. The hole can be aligned or perpendicular to the pipeline by turning the ball a quarter turn.  It is for the opening or blocking of the flow of fluids. PVC valves are durable, cheap, and used for various liquids. Water, air, corrosive chemicals, acids, and bases are liquids.
Table of Contents

PVC Ball Valves Threaded and PVC Socket Ball Valve Comparison

PVC ball valves are used as plastic stop valves. The valve contains a rotating ball with a hole in the center. The hole can be aligned or perpendicular to the pipeline by turning the ball a quarter turn.

It is for the opening or blocking of the flow of fluids. PVC valves are durable, cheap, and used for various liquids. Water, air, corrosive chemicals, acids, and bases are liquids.

They are available with different pipe fittings, like solvents, flange, or pipe threads. The most common is a ball valve with sockets and a manual handle. The valve is removable for replacement, inspection, and cleaning.

PVC Ball Valves have become popular due to their durability, cost-effectiveness, and the versatility of applications in which they can be used. Two common types of connections for these valves are threaded and socket connections. The choice between threaded and socket PVC ball valves often depends on the specifics of the application and personal preference. Here is a breakdown of the two:

PVC Ball Valves – Threaded Connection:


  • Ease of Installation: Threaded PVC ball valves are relatively easier to install. They can be screwed directly into the threaded end connections of the piping system, requiring no additional adhesive or welding.
  • Disassembly and Reassembly: If maintenance or replacement is needed, threaded connections are easier to disassemble and reassemble.
  • Compatibility: They are compatible with threaded pipe systems, making them versatile for replacements or new installations.


  • Potential for Leakage: The threads may not form a complete seal, which might lead to potential leakage.
  • Over-tightening Risk: There’s a risk of over-tightening, which can cause damage to the threads.


  • Thread types such as NPT (National Pipe Thread) or BSP (British Standard Pipe) are common.
  • Available in a range of sizes to suit different piping systems.

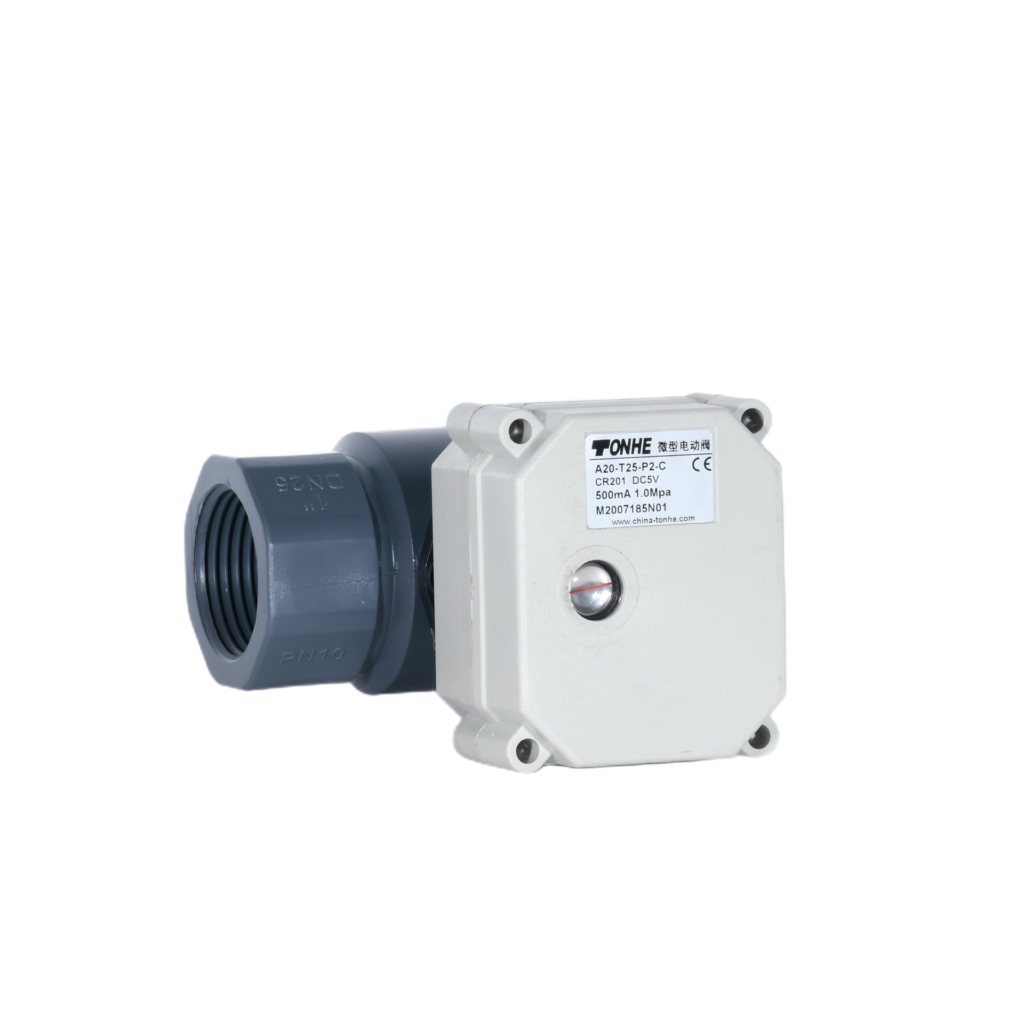

electric ball valve UPVC with thread
Electric ball valve UPVC with thread

PVC Ball Valves – Socket Connection:


  • Stronger Seal: Socket connections typically form a stronger, more reliable seal as they adhere to solvent cement.
  • Smooth Transition: The smooth transition between the valve and pipe minimizes flow disruption.


  • Permanent Connection: Once cemented, socket connections are permanent, making disassembly for maintenance or replacement more challenging.
  • Additional Installation Steps: The solvent welding process is an additional step during installation.


  • Designed for slip-on fitting with a snug, interference fit that requires solvent welding.
  • Available in various sizes to match the pipe dimensions.
hpvc ball valve plumberstar
PVC ball valve plumberstar

Applications of Threaded and Socket PVC Ball Valves

The variety in valve designs, including threaded and socket PVC ball valves, stems from the diverse application needs across different industries and systems. Understanding the realm of applications these valves cater to can significantly aid in making an informed selection for your particular needs. This article delineates the common applications where these PVC ball valves find their utilization:

Water Supply and Distribution:

  • Threaded and socket PVC ball valves are commonly used in water supply lines due to their robust sealing capabilities, ensuring a leak-free operation.
  • Their corrosion-resistant nature makes them suitable for long-term use without the risk of rusting which is common in metal valves.

Irrigation Systems:

  • These valves are used extensively in agriculture for irrigation systems to control the water flow to various field parts.
  • Their easy operation and low maintenance make them a preferred choice for farmers and agricultural professionals.

Chemical Processing:

  • PVC is known for its resistance to many chemicals, making these valves suitable for use in chemical processing plants.
  • They can handle a variety of acids, alkalis, and solvent-based solutions without degradation, ensuring a safe and reliable operation.

Swimming Pools and Spa Systems:

  • Ensuring controlled water flow and maintaining water quality is crucial in swimming pools and spas, and PVC ball valves provide effective solutions for these requirements.
  • Their resistance to chlorine and other chemicals used in water treatment makes them a durable choice.

Industrial Processing:

  • These valves are used in a myriad of industrial processing applications where controlling the flow of liquids is essential.
  • Their straightforward design and operation facilitate easy integration into complex systems.

Wastewater Management:

  • The corrosion resistance and solid sealing performance of PVC ball valves make them ideal for wastewater management systems.
  • They provide reliable shut-off capabilities, essential in preventing leaks and ensuring a sanitary environment.

Food and Beverage Industry:

  • Although metal valves are commonly used, PVC ball valves can also find applications in food and beverage industries, especially in systems dealing with water and non-aggressive fluids.

Home Plumbing Systems:

  • Many homeowners prefer using PVC ball valves for home plumbing systems due to their cost-effectiveness and ease of installation.

HVAC Systems:

  • In Heating, Ventilation, and Air Conditioning (HVAC) systems, these valves help in managing the flow of water or other coolant fluids.

Laboratory and Research Facilities:

  • These valves find applications in laboratories for controlling the flow of gases or liquids during experimental processes.


The comprehensive array of applications for threaded and socket PVC ball valves showcases their versatility and capability in handling different fluids across various systems. Their material properties, ease of operation, and maintenance-friendly nature make them valuable in ensuring operational efficiency and reliability. By aligning the valve choice with the specific requirements of your application, you can achieve optimal performance and longevity from these pivotal components.

Choosing Between Threaded and Socket PVC Ball Valves:

  • Application Requirements: Assess the application’s demands, including pressure, temperature, and the type of fluid being handled.
  • Maintenance Needs: If frequent maintenance is anticipated, threaded connections might be preferable.
  • Installation Skill: Socket connections require a correct solvent welding process, which requires skill.
  • Budget: Evaluate the total cost, including the installation and potential maintenance.
  • Local Regulations and Standards: Local plumbing and building codes might dictate the type of connection required. Some regions might specify the use of threaded connections, while others might mandate socket connections. To ensure compliance, it’s crucial to check with local authorities or consult the regional building codes.

In conclusion, threaded and socket PVC ball valves serve different purposes, and the choice between them should align with the system’s long-term functionality and maintenance needs.

Why are PVC Ball Valves used?

Since the valves are beneficial for several different purposes in the following:

· Industries

· Residential

· Manufacturing

· plumbing

The correct valve choice is an essential aspect for the valve installer. Selecting a suitable valve determines the success or failure of the entire process. A valve is often designed to control fluid flow through a system. The valve starts, stops, or throttles the flow to ensure a safe and efficient flow.

From Flexpvc

Difference between PVC Ball Valves Threaded and Socket:

PVC Ball Valves have different types of end connections, depending on various factors:

· PVC Ball Valve functions

· type

· application

You can select the right kind of end connection. The most common types of terminal connections are as follows: –

Gene Code

PVC Threaded Ball Valve:

Threaded Ball valve ends are required for the low-pressure piping system. This fitting is cheap and quick to install without any difficulty. Once the joints of these connections are assembled, it is suitable for the low-pressure piping system. These connections are welded around the joint when made in some cases. Although, this is not much in practice. It can cause problems in the efficient use of these valve end fittings.

Threaded PVC Ball Valve Fittings

PVC Threaded Ball Valve ends can connect small valves to pipes. They are helpful in applications that have small ball valves less than 4 inches in diameter. Larger sizes will be more difficult to seal and likely leak through the threads. They are easy to install, inexpensive, and easy to maintain and replace.

The female valve has threaded ends that connect with a male threaded component. In most cases, the valve has male-threaded lots or one male-threaded end and the other a female-threaded end. Threads are made according to the thread standards specifying the thread parameters.

Threaded PVC Ball Valve Fittings can be straight or tapered. Straight valves often need an O-ring that compresses. And to ensure a tight seal between the valve and the pipe. The tapered thread doesn’t need an O-ring to achieve an airtight seal. Both threads can use pipe tape or sealant between the male and female threads, which acts as a lubricant and provides a seal. It also prevents metal-to-metal contact from causing wear.

From FilterShop

PVC Ball Valve Socket or Welded Valve

PVC Ball Valve Socket or Welded Valve are used when the absence of leaks is vital to the system. This is generally the case in high-temperature and high-pressure piping systems. It is also common to use solder connections with hazardous fluids. Qualified professionals should make welded connections. Valve welded connections have two types.

Sizes of Threaded and Socket PVC Ball Valves: Standard Dimensions and Customizability

The dimensions of PVC ball valves are crucial for ensuring a proper fit within a piping system. When choosing between threaded and socket PVC ball valves, it’s imperative to understand the size variations available to ensure a precise match with the piping specifications. Here’s a detailed overview of the standard sizes and customizability options for these valve types:

Standard Sizes:

Both threaded and socket PVC ball valves are available in various standard sizes to cater to different piping configurations. Commonly, the sizes range from 1/2 inch to 6 inches in diameter. However, the availability of sizes might vary slightly based on the manufacturer and the specific design of the valve.

  1. Threaded PVC Ball Valves:
    • Available in sizes ranging from 1/2 inch to 4 inches.
    • The inner diameter of the threads determines size.
  2. Socket PVC Ball Valves:
    • Typically available in sizes ranging from 1/2 inch to 6 inches.
    • The inner diameter of the socket determines size.

Custom Sizes:

Custom-sized PVC ball valves can be manufactured for unique piping systems or specialized applications. This customizability ensures that the valve will fit seamlessly within the existing or planned piping layout.

  • Threaded PVC Ball Valves:
    • Custom thread designs and sizes can be fabricated based on specific project requirements.
    • Ensure that the threads match the specifications of the adjoining pipes for a snug fit.
  • Socket PVC Ball Valves:
    • Custom socket sizes can also be produced to meet unique diameter requirements.
    • The exact dimensions must be communicated to the manufacturer to ensure a precise fit.
colors of pvc ball valves
colors of PVC ball valves

Measuring for Accuracy:

To avoid any misfit, it’s essential to accurately measure the inner diameter of the pipes where the valves will be installed. It’s also advisable to consult with the valve manufacturer or supplier to ensure the chosen size meets the system requirements.

Key Takeaways:

  • Standard sizes cater to a wide range of piping systems, but custom sizes provide the necessary flexibility for unconventional layouts.
  • Accurate measurements and consultations with experts are crucial steps in ensuring a correct size selection, avoiding costly mistakes, and ensuring the efficiency and reliability of the piping system.

Selecting the right size of PVC ball valves, whether threaded or socket, is paramount to ensuring a smooth installation, reliable operation, and long-term durability of the piping system. Understanding the available size ranges, customizability options, and the importance of accurate measurements lays the foundation for a successful valve selection and, subsequently, a well-functioning fluid management system.

PVC Compact Ball Valves
PVC Compact Ball Valves

Working Pressure and Temperature Ranges for Threaded and Socket PVC Ball Valves

The working pressure and temperature are pivotal factors to consider when choosing between threaded and socket PVC ball valves. These parameters ensure that the valve can operate efficiently and safely under the designated conditions of the system in which it is installed. This article will elucidate the typical working pressure and temperature ranges for these valve types and the importance of adhering to these specifications:

Working Pressure:

The working pressure denotes the maximum pressure a valve can handle while maintaining its integrity and functionality. It is usually measured in pounds per square inch (PSI).

  • Threaded PVC Ball Valves:
    • Standard working pressure ranges from around 150 to 250 PSI.
    • Thicker walls and tighter threads can sometimes allow for higher working pressures.
  • Socket PVC Ball Valves:
    • Standard working pressure also ranges from about 150 to 250 PSI.
    • The pressure rating may vary with the valve size and design.

Temperature Range:

The temperature range specifies the minimum and maximum temperatures within which the valve can operate without any performance or structural integrity loss.

  1. Threaded PVC Ball Valves:
    • Generally rated for temperatures ranging from 33°F to 140°F.
    • It’s crucial to avoid going beyond this range to prevent material degradation.
  2. Socket PVC Ball Valves:
    • Typically, they have the same temperature range of 33°F to 140°F.
    • Higher temperatures can lead to softening or warping of the material.

Key Considerations:

  • Ensuring that the selected PVC ball valves can handle your system’s working pressure and temperature is critical for safety and performance.
  • Cross-referencing the valve specifications with the system requirements will help in selecting the right valve.

Checking with Manufacturers:

  • It’s wise to consult with the manufacturers or suppliers about their PVC ball valves’ pressure and temperature ratings to ensure they match your system’s specifications.
  • Additionally, seeking expert advice for unique or extreme conditions is advisable to ensure the safety and efficacy of the valve within the system.

Understanding and adhering to the working pressure and temperature ranges is paramount in selecting the right threaded or socket PVC ball valve for your application. This adherence not only ensures the efficiency and reliability of the valve but also guarantees the safety of the system. Moreover, engaging with manufacturers or suppliers to confirm these specifications is a prudent step toward making an informed decision.

PVC Ball Valve Socket Fittings

Socket welded valve end fittings are connected to steel valves or in applications. Thus requiring high pressure and temperature in the piping industry. When it does not leak, it is installed so that it is used for longer and is not required.

This type of socket connection has a valve diameter more extensive than the diameter of the pipe. So the tube can fit over the end of the valve socket. Welding is often done around the perimeter of the end of the valve connected to the pipe.

PVC Pipe Fitting Union Parts
PVC Pipe Fitting Union Parts

Installation Dynamics: Speed Vs. Bond Strength

The installation dynamics of threaded and socket PVC ball valves vary significantly, each offering its own advantages.

Threaded PVC Ball Valves:

  • Quick to install without the need for adhesive or welding.
  • Ideal for systems that require rapid setup or frequent disassembly.

Socket PVC Ball Valves:

  • Requires solvent welding, making the installation process lengthier but ensuring a more robust bond.
  • Suited for permanent installations where a strong bond is crucial.

Maintenance Considerations: Accessibility and Longevity

Maintenance is a vital aspect to consider when choosing between threaded and socket PVC ball valves.

Threaded PVC Ball Valves:

  • It is easy to disassemble and reassemble, making them preferable for systems requiring regular maintenance.

Socket PVC Ball Valves:

  • Once the solvent is welded, disassembly is a challenge. Thus, they are not ideal for systems requiring regular maintenance.

Compliance with Local Regulations and Standards

Local plumbing and building codes often dictate the type of connection required in a piping system. It’s imperative to be aware of and comply with these regulations.

  • Some regions might prefer threaded connections due to their ease of installation and maintenance.
  • Others might favor socket connections due to their robust sealing and long-term reliability.

Budget and Skill Level of Installers: Practical Implications

The budget and the skill level of installers are practical considerations that can influence your decision.


  • Evaluate the overall costs, including installation, potential maintenance, and replacement costs associated with each type of connection.

Skill Level:

  • Socket connections require a higher level of skill due to the need for solvent welding.
  • Threaded connections might be more forgiving for less experienced installers.


The decision between threaded and socket PVC ball valves isn’t black and white. It involves a nuanced assessment of various factors, including the specific requirements of your system, local regulations, the skill level of installers, and budget considerations. This guide provides a detailed analysis to aid in making a well-informed decision that aligns with your operational requirements and long-term goals for a reliable, efficient piping system.
