Cast Iron Fitting Roof Floor Drain with Aluminum Dome

Parameters of Cast Iron Fitting Roof Floor Drain with Aluminum Dome

Shower drain,Socket, Equal Union, Equal Elbow, Equal Tee, Female Elbow, Female Tee.

Additional information

Materials:

Aluminum alloy, Ductile Iron, Cast Iron

Finising:

Painting

Thread connection

NPT, UNF

Size:

3", 4"

MOQ:

500pcs

Warranty:

24 months

Details about Cast Iron Fitting Roof Floor Drain with Aluminum Dome

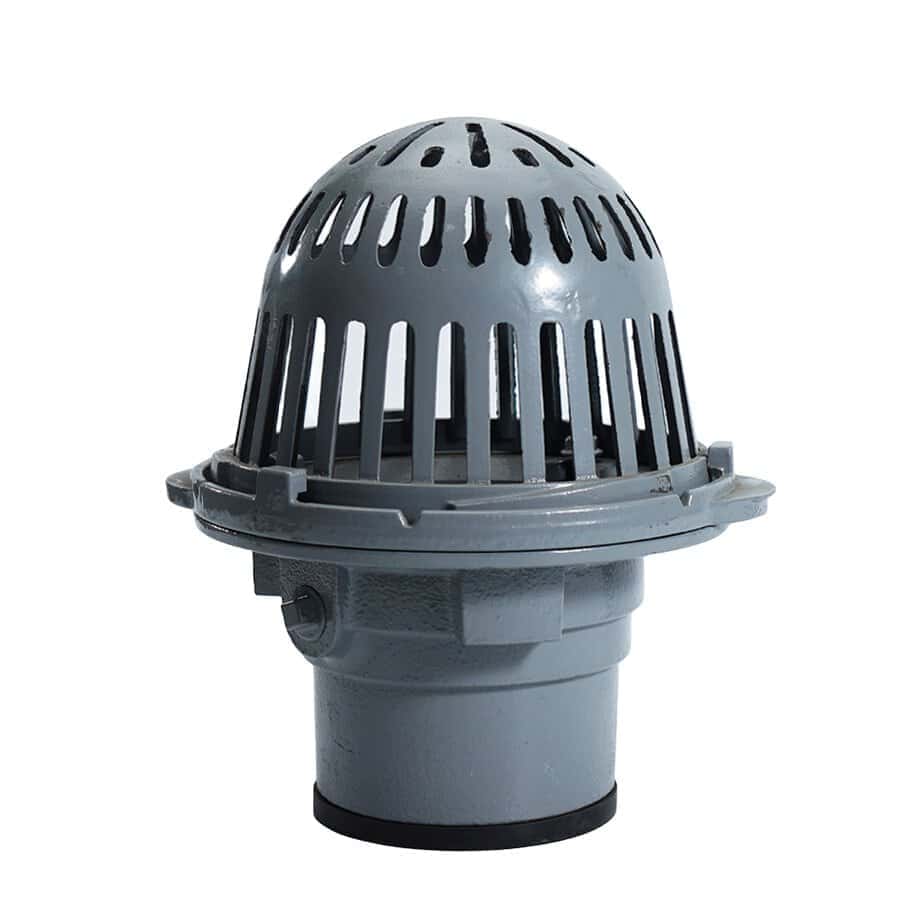

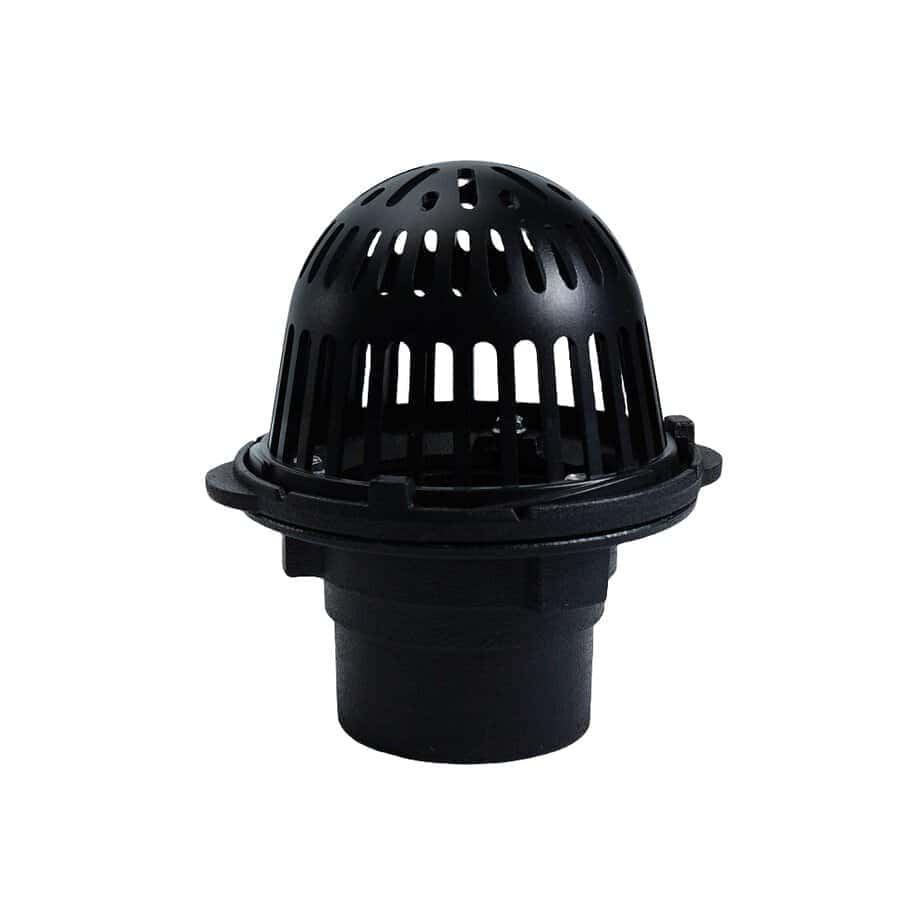

Cast Iron Fitting Roof Floor Drain with Aluminum Dome

JX-0968

ITEM
Aluminum Dome

ITEM NO.
Size #1
3″
Size #2
4″
MATERIAL
NICKEL-BRONZE/BRONZE, CAST IRON
FINISH
Rough brass

Introduction:

The Cast Iron Fitting Roof Floor Drain equipped with an Aluminum Dome is an essential component in contemporary drainage systems, primarily designed for roofs. Cast iron provides a sturdy base, ensuring durability and longevity, while the aluminum dome acts as a strainer, preventing larger debris from entering the drainage system.

Components:

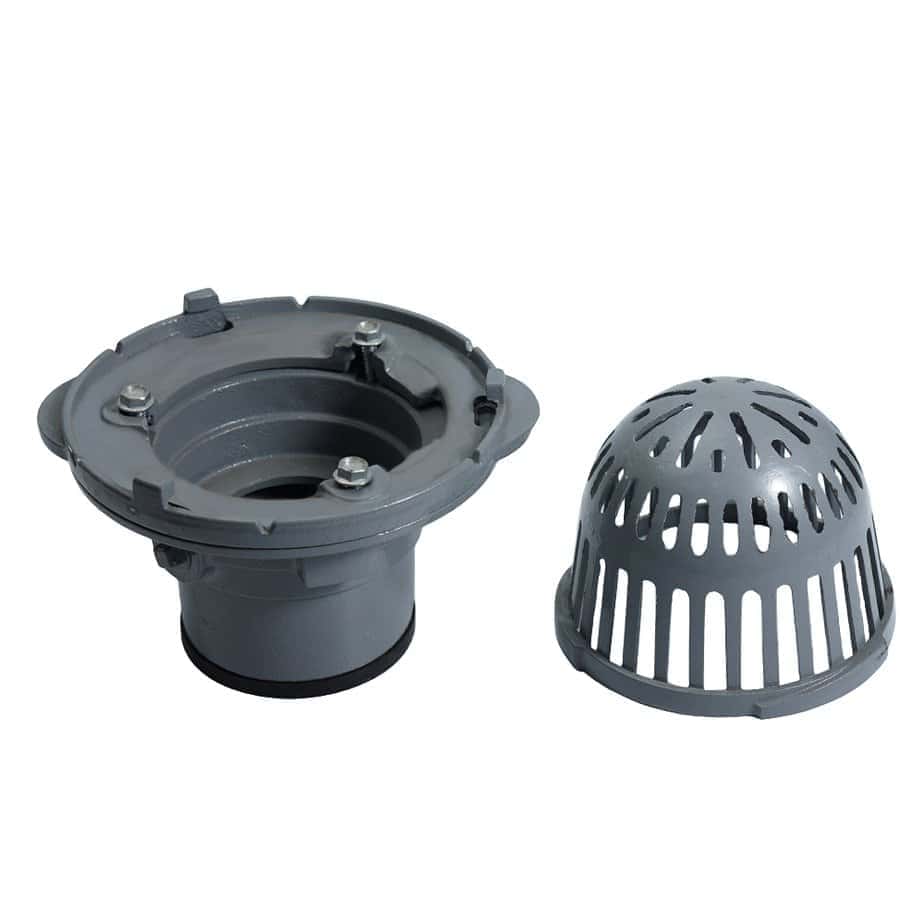

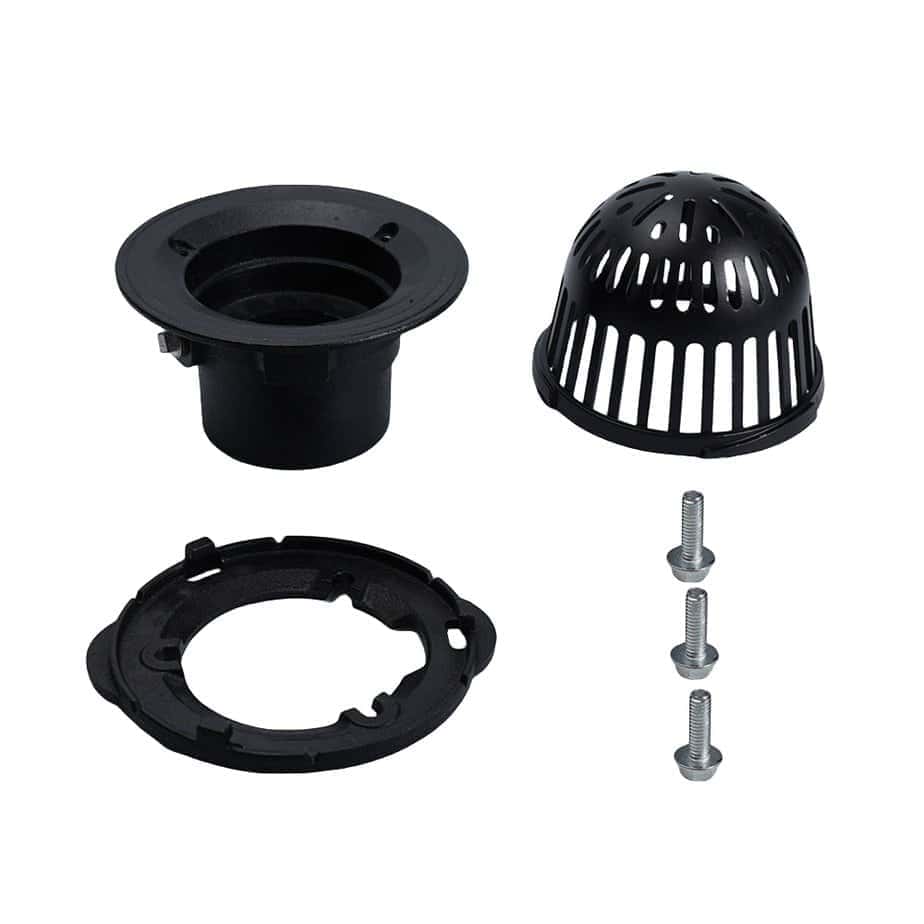

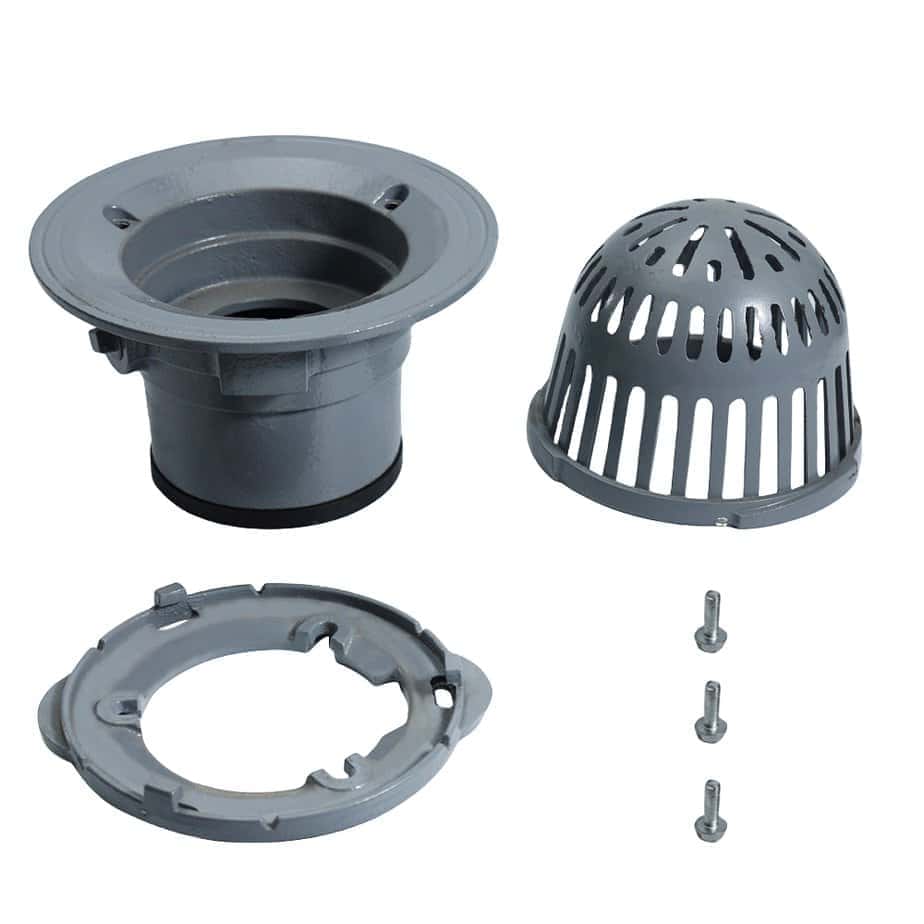

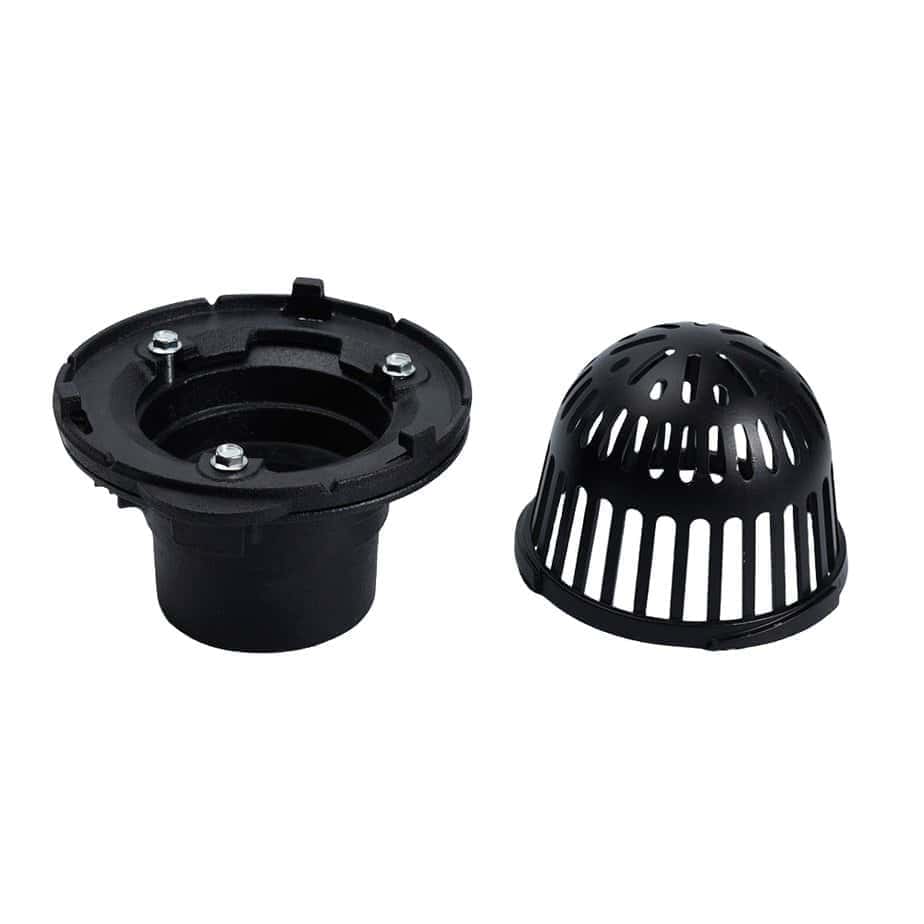

  1. Drain Body: Cast from iron, this component is where water enters and flows through.
  2. Aluminum Dome: Lightweight and resistant to corrosion, the dome acts as a barrier against larger debris like leaves or twigs while allowing water to pass through.

Key Features:

  1. Durability: The combination of cast iron and aluminum ensures that the product can withstand environmental factors such as rain, snow, and UV radiation.
  2. Efficient Water Flow: The design is optimized for maximum water flow, minimizing the possibility of water pooling or backup.
  3. Debris Barrier: The aluminum dome plays a pivotal role in ensuring that blockages are rare, allowing only water to pass through while preventing larger debris.
  4. Easy Installation: The fitting is designed to be easily integrated into most standard roofing systems.

Applications and Uses:

Residential:

  1. Houses: Particularly in homes with flat roofs or those located in areas with heavy rainfall or leaf fall.
  2. Garages and Sheds: Protecting interiors from water damage.

Commercial:

  1. Warehouses and Storage Facilities: To manage rainwater efficiently.
  2. Office Buildings: Especially those with flat roofing systems.
  3. Shopping Centers: To ensure efficient water drainage, preserving the structural integrity of the building.
  4. Factories: Especially in structures with large roof areas where efficient drainage is crucial.

Installation:

  1. Survey the intended installation site on the roof and decide on the optimal location for water flow.
  2. Prepare the area by ensuring it is clean and free from debris.
  3. Cut an opening of the appropriate size for the drain body.
  4. Install the cast iron fitting drain body into the opening.
  5. Place the aluminum dome on top of the drain body, ensuring a snug fit.
  6. Ensure that the surrounding roof area has an adequate slope to direct water toward the drain.

Maintenance:

  1. Periodically inspect the aluminum dome and remove any accumulated debris.
  2. Check the cast iron body for any signs of rust or corrosion. While cast iron is inherently resilient, a protective paint or coating can further enhance its longevity.
  3. After heavy rainfall or storms, inspect the drain to ensure it’s functioning efficiently and not causing water pooling on the roof.
  4. It’s advisable to perform a more thorough check-up at least bi-annually, preferably before and after the rainy season.

Conclusion:

The Cast Iron Fitting Roof Floor Drain with Aluminum Dome is an efficient and durable solution for modern roofing systems. It perfectly balances form and function, ensuring that roofs remain safe from potential water damage. Proper installation and regular maintenance will ensure optimal performance and longevity.
