Selecting the correct type of valve connection ensures a leak-free environment and a smooth and flawless plumbing fixture in different commercial and residential setups.
How to choose the appropriate valve connections for your needs depends on various factors. This blog will help you find your desired valve connection by providing a brief analysis.
What Is A Valve End Connection?
The purpose of valve connection is to join the valve with the piping system to allow them to connect and work together. Although these connections look simple, they play a key role in the functioning and efficiency of the entire system. So, picking the most suitable valve connection will enhance the performance and life span of the entire system.
The main types of connections are:
- NPT
- Flanged
iii. Socket Weld
Before comparing all three connections in detail, look at them briefly to understand them better.
NPT:
NPT valve end connections are threaded and tapered, which is typical for smooth connections between the valves and pipes. It refers to National Pipe Thread Tapered.
The NPT valve end connections include male, female, or both male and female threaded ends on both sides. The function of a tapered thread is to provide a fluid-tight seal.
Advantages of NPT Valve End Connections:
- NPT end connections are cost-effective compared to other connections, making them a popular choice for various applications.
- They can be easily installed due to their simple threaded design without special tools.
Disadvantages of NPT Valve End Connections:
- Due to the tapered threads, NPT connections can cause leakage when exposed to extreme conditions, so they are not a good option in high temperatures and pressures.
Click here to buy NPT valve end connections

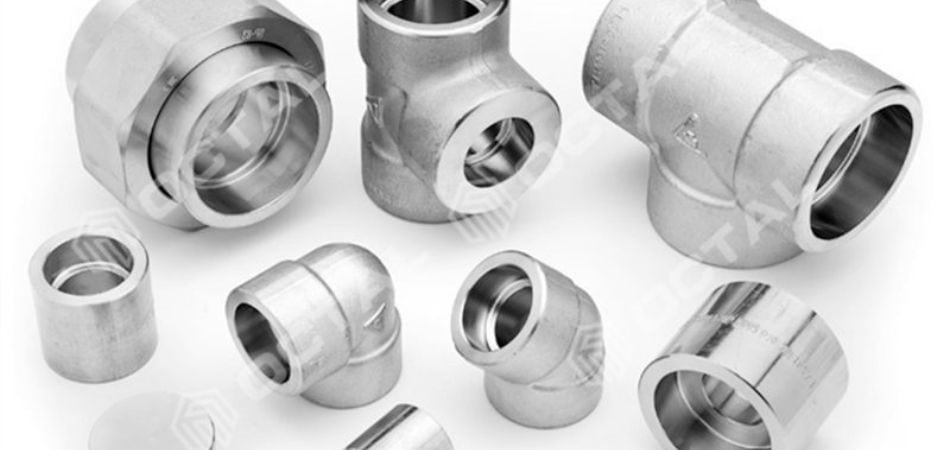

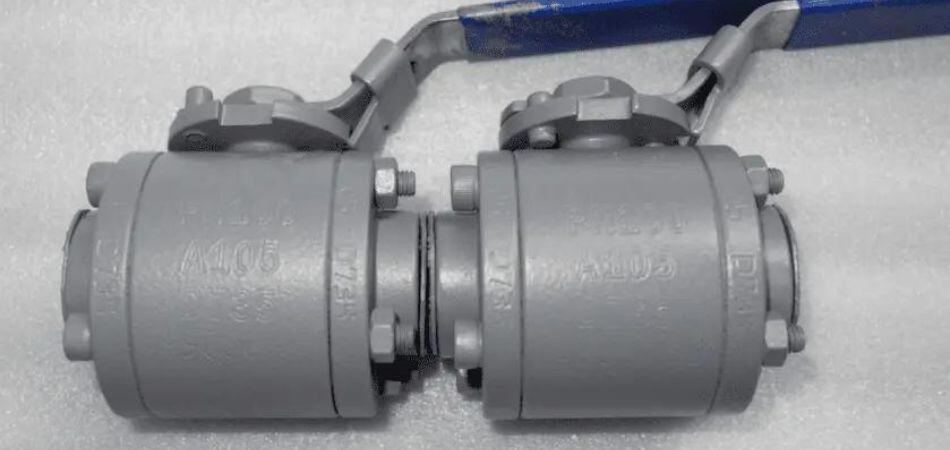

Socket Weld Valve Connections:
In the socket weld type of connection, a pipe is inserted into the socket through welding. The inner diameter of the socket is slightly bigger than the outer diameter of the pipe so that when it is joined through welding, the connections become leak-free and permanent.
Socket weld connections are preferred for smaller-sized valves like 2 inches or below.
1. Advantages of Socket Weld Valve End Connections:
- Socket weld connections have high strength and are durable for demanding applications.
- Due to their robust structure, they are highly suitable for high-pressure systems.
Click here to buy socket weld valve end connections.
2. Disadvantages of Socket Weld Valve End Connections:
- Due to the welding process, installing socket weld valve end connections is lengthy, making it expensive compared to other types.

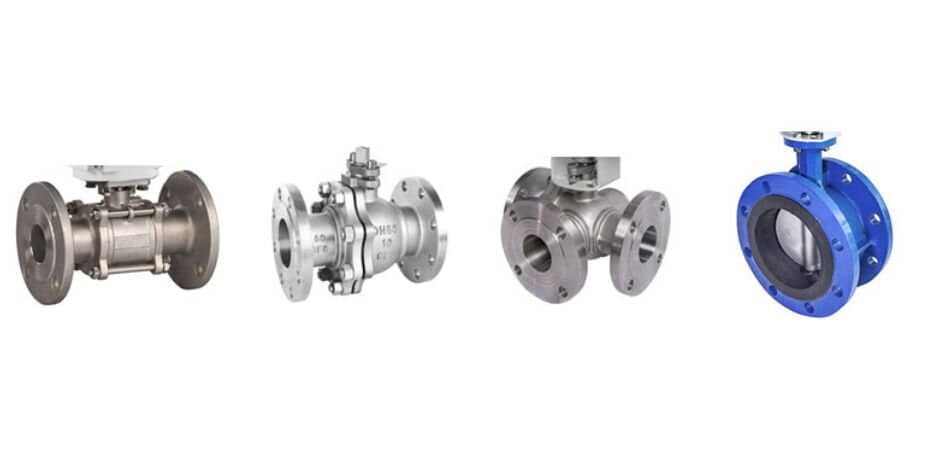

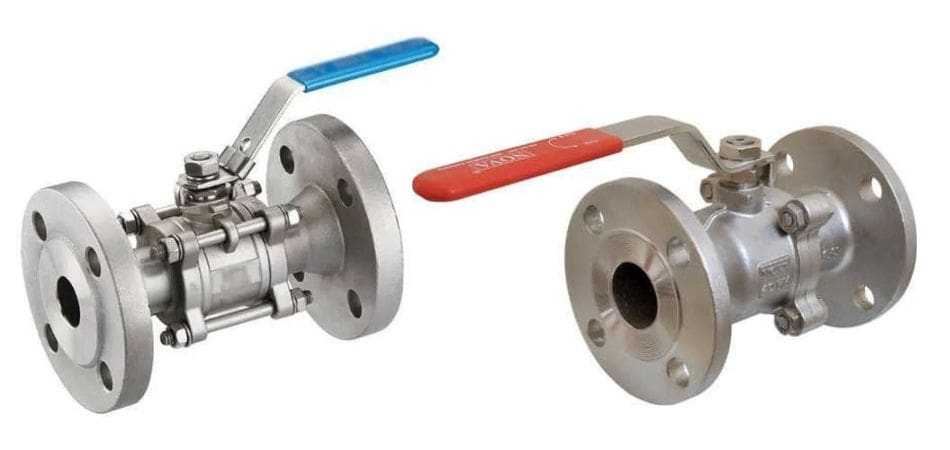

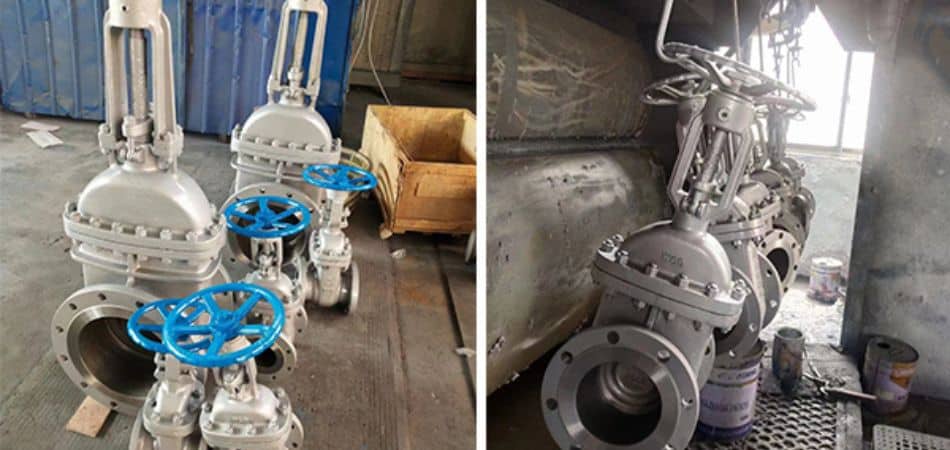

Flanged Connections:
These connections have flanges with rims and edges for connecting pipes with valves or 2 pipe sections. Flanged connections consist of 2 – 3 pieces of valves, and they can be easily removed without disturbing other connections.
3. Advantages of Flanged End Connections:
- Due to their easy assembly and disassembly, they are useful for systems requiring regular maintenance.
- Their robust design makes them highly suitable for working under high temperature and pressure conditions.
Click here to buy flanged end valve connections
4. Disadvantages of Flanged End Connections:
- The flanged connections are heavier than other end connections, so they may not be ideal for limited-space projects and applications.
- They are more expensive than NPT-end connections because of their complex installation.
Comparative Analysis
1. Handling of Temperature and Pressure:
NPT valve end connections are ideal for low to moderate temperatures and pressure systems.
Flanged end connections can conveniently operate in conditions of high temperatures and pressures.
Socket weld connections are the best choice for handling extreme temperatures and pressures.
2. Installation:
NPT valve end connections are easy to install without requiring any special tools.
Flanged end connections require precision in alignment, making them more complex than NPT valve end connections.
Socket weld connections are the most complex installation as they require skilled welding.
3. Maintenance and Repair;
NPT valve end connections require simple maintenance, which makes them convenient to handle.
Flanged end connections can be easily disassembled for maintenance.
The socket weld connection needs re-welding and cutting for repairs.
4. Cost Comparison:
NPT connections are cost-effective and budget-friendly.
The cost of flanged connections is high compared to NPT due to the flanges and the complexity of their installation.
Socket weld connections are the most expensive due to the need for skilled labor and welding material.
5. Best Application:
NPT connections are best for low-pressure systems requiring easy installation.
Flanged connections are ideal for systems that require frequent maintenance.
Socket weld connections are the best for high-pressure and temperature environments.
How to Choose the Best Valve End Connection?
All types of valve end connections have pros and cons, so the question remains of how we should select the best valve end connections for our system.
But the answer is quite simple: by analyzing your preferences, you can select the suitable connection, thereby increasing the productivity and efficiency of your system.
Application Preference:
You can select the most suitable type of valve end connection depending on the requirements of your application, such as pressure, temperature, and system flow. Flanged end or socket weld connections are the best for higher temperatures and pressures.
Material Selection:
Select the material compatible with your system’s requirements to prevent corrosion or other damage.
Installation and Space:
Specific valve end connections can also be selected depending on the installation and space. For limited-space projects and systems, NPT valve end connections are ideal as they require little space; on the other hand, flanged end connections require more space.
Maintenance:
Depending on the need for maintenance, valve end connections can be chosen. For systems requiring frequent maintenance, the easily disassembled connections should be picked, e.g., Flanged end connections. In contrast, durability should be preferred for less frequent maintenance requirements, e.g., socket weld connections.
Budgeting and Costing:
For limited and low-budget projects, you can select a relatively low-cost solution like NPT connections, whereas, in the case of high-budget projects, flanged and socket weld connections are better options because of their durability and performance. For detailed information, visit our website at plumberstar.com
FAQs:
What Is The Difference Between a Flanged And Threaded Connection?
In flanged connections, the pipes are connected with flanges (holes) and bolts which are strong and act as leak-proof seals, whereas in the threaded connection, the pipes are joined together in a screwing method which consists of threads.
What Is The Difference Between Welded And Flanged Connections?
The flanged connections are temporary and easily assembled and disassembled for frequent maintenance. They are usually joined using the welding, lap, or screw method, whereas welding is the joining method in the case of socket weld connections.
Final Remarks:
After comparing different types of valve end connections, you can decide according to the mentioned preferences, ensuring your system’s efficiency, life span, and longevity. There is not a single formula for finding the best among all types of connections; it all depends on your preferences, but it plays a key role in the efficiency of your plumbing system.
