A pressure gauge is an essential tool when measuring the pressure of a liquid or gas. The force was changed by using this instrument linked to a tank or pipes. Numbers like psi, Pascal, bar, and Torre measure pressure on a scale. Water pressure gauges help determine the exact water pressure in homes, businesses, and factories.
Pressure measures that are strong, easy to use, and don’t need many things. In this article, we will talk about water pressure gauges, including the different kinds, sizes, materials, and elements to consider when picking one out and how they can be used.

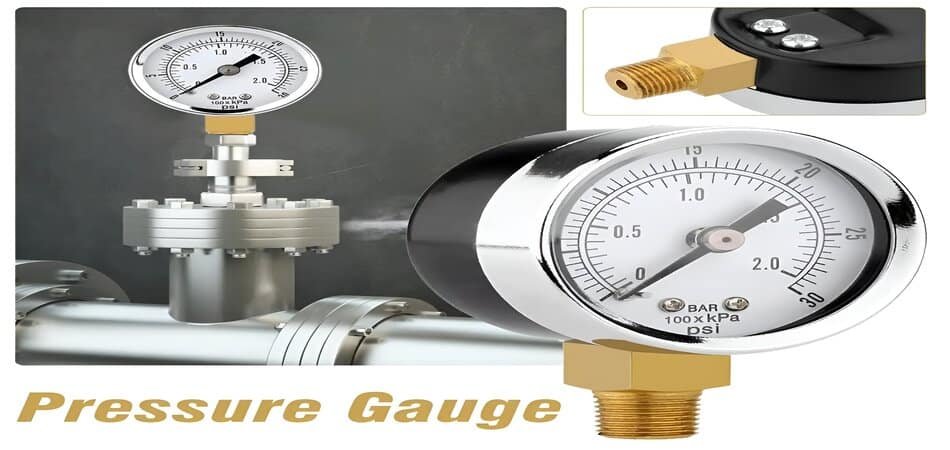

What Is Water Pressure Gauge?
In plumbing and water systems, water pressure gauges are used to determine the amount of water pressure. Although they are primarily used in the heating and utility businesses, they can also be used around the house. Mains water gauges are made for professionals only. The water pressure in a structure can be steady or change over time.
Pressure in water that is not moving is called static pressure. On the other hand, dynamic pressure is the pressure of moving water. Checking your equipment’s water flow and pressure is done with a water pressure gauge. These tools can check the pressure in wells, pumps, and watering systems on business and home sites.
Types Of Water Pressure Gauge:
There are some main types of water pressure gauges are as follows:

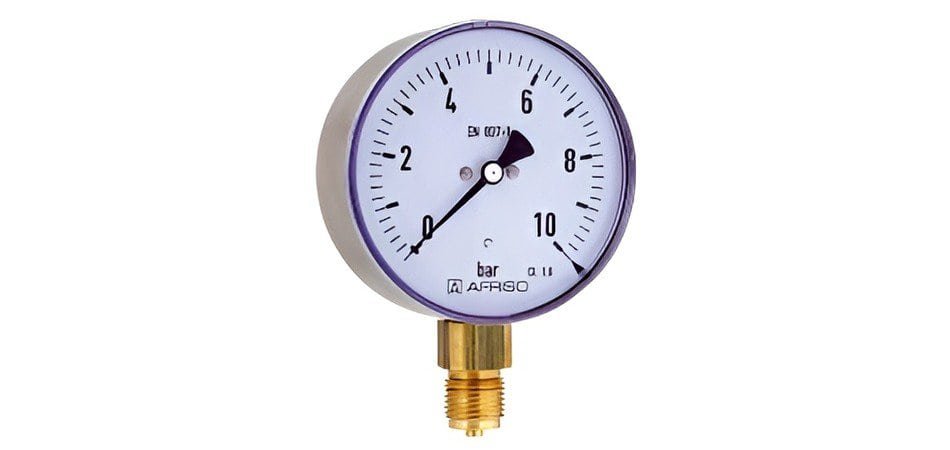

Bourdon Tube Pressure Gauge
The pressure measure that is used most often is a Bourdon tube. The pressure is measured by a mechanical device that doesn’t need electricity. Steel is used to make it so it won’t wear down or rust.
A Bourdon tube pressure gauge can read pressures between 0.6 bar and 7000 bar, or 8–10000 psi. That means it can work with air and liquid media in vacuum and low- and high-pressure situations. For heavy shaking and dynamic pressure loads, this tiny device is perfect.
• Applications:
This product is used by companies that make painting installations, cars, and other surface coatings. It includes Bourdon tube pressure gauges for sprayers used in agriculture and filling levels in the auto industry. It also has in-line seals for measuring pressure on painting installations.

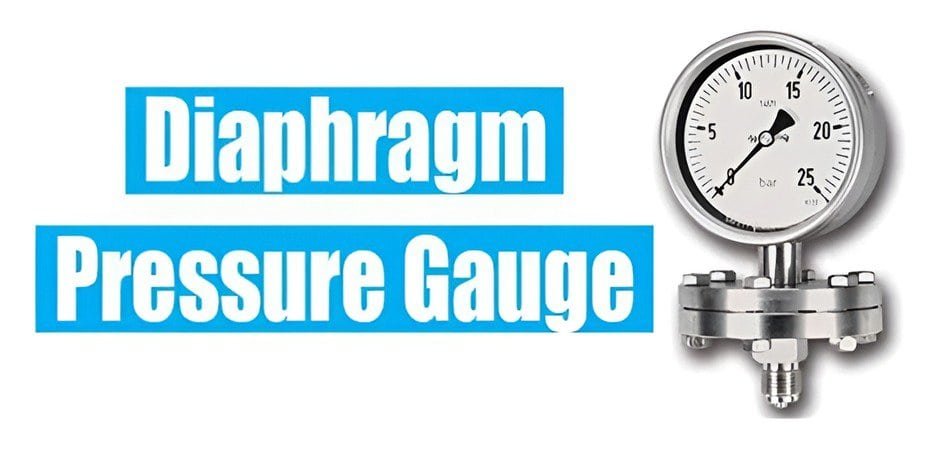

Diaphragm Pressure Gauge:
This is used to determine how much pressure there is in a machine. It was made specifically to measure how low solid pressure is. You might also hear this called a membrane pressure gauge. The diaphragm is a thin, bendable material that changes shape when this device is used.
The pressure is shown by a needle that moves with the help of pinions that are attached to the diaphragm. A needle, which moves with the help of pinions attached to the diaphragm, shows the pressure. Applications When used in the oil exploration and hot spot industries, it’s mostly for measuring the pressure of high-temperature and high-pressure steam.
When used in petrochemical, soda-making, chemical fiber, dyeing, pharmaceutical, food, sanitation systems, and other fluid-transport systems, it’s mostly for measuring the pressure of fluid media.

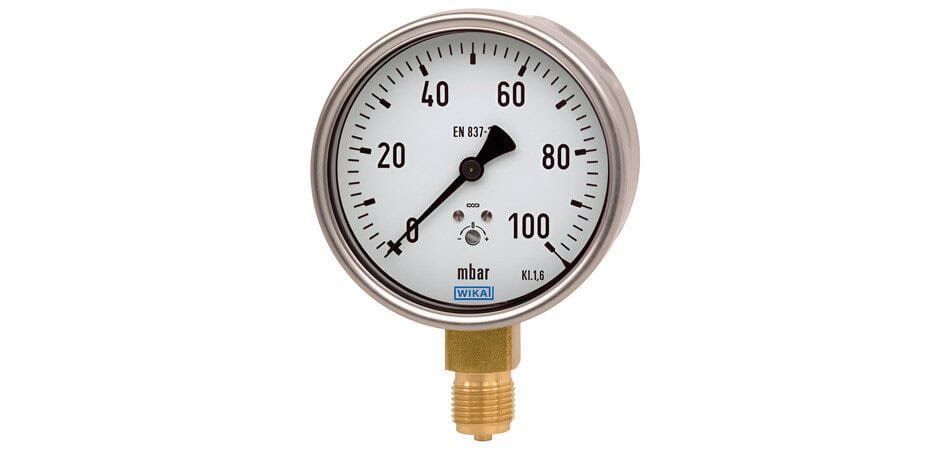

Capsule Pressure Gauge:
Two corrugated diaphragms are welded at their periphery to create a capsule in this type of pressure gauge. This capsule is the primary component responsible for pressure sensing. One of the diaphragms in the center contains an opening that allows the medium to penetrate.
In response to pressure, the diaphragms either expand or contract. The capsule pressure gauge determines the pressure of gases and substances with a maximum pressure of 600 mbar.
• Application:
The Capsule Pressure Gauge is effective if you require an accurate low-pressure measurement. The Capsule Pressure Gauge is intended to measure gaseous media. These gauges are exact and have a pressure range that is lower than that of a Bourdon tube gauge.
They are frequently employed in various applications, including low-pressure pneumatic systems, ventilation valves, overpressure monitoring, filter monitoring, and vacuum compressors, for which precision is necessary.

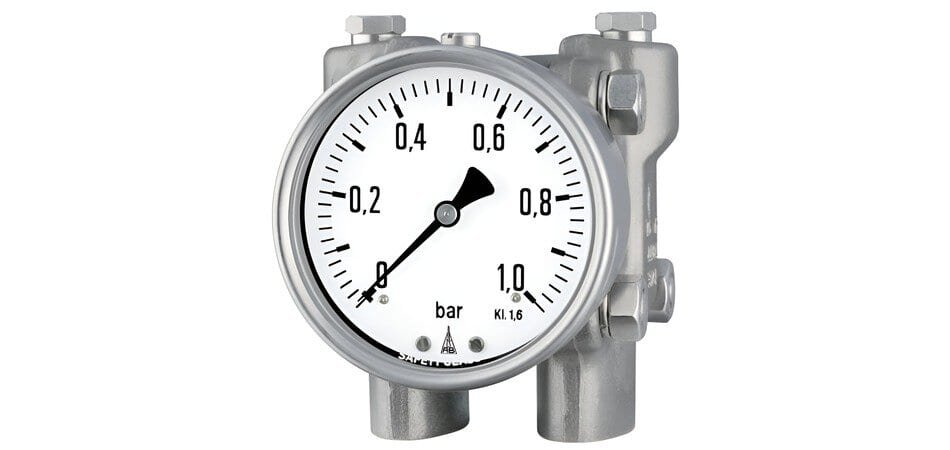

Differential Pressure Gauge:
The differential pressure gauge measures the pressure between two receptacles. They are separated by an element that oscillates in response to fluctuating pressure. The media chamber and vacuum chamber are separated by a diaphragm in the differential pressure gauge. The diaphragm deforms into the vacuum chamber as the pressure expands. The pressure value is obtained by converting the deformation and change.
• Applications:
Differential pressure gauges regulate and supervise the movement of gases and liquids through pipelines. To guarantee that the system is functioning efficiently and effectively. Differential pressure gauges are employed to monitor air passage through ducts and filtration. Differential pressure gauges are employed to monitor and regulate the flow and pressure of fluids to guarantee the safe and efficient operation of hydraulic systems.

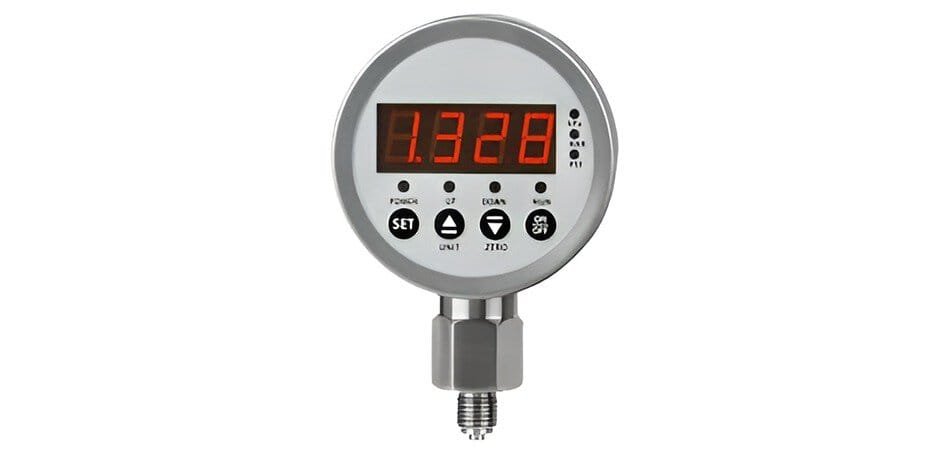

Digital Pressure Gauge:
Digital pressure gauges can measure the pressure within a method and display the value on an integrated digital display. It is possible to store and transmit pressure data electronically. These gauges are more precise and straightforward to read than conventional mechanical gauges.
They are frequently employed in various industrial, scientific, and medical applications. They also quantify the pressure of gases, liquids, or substances in tanks, pipelines, or other containers. Pressure sensors that convert pressure into an electronic signal. They are employed in digital pressure gauges.
Nevertheless, piezoresistive pressure sensors are the most frequently employed. They have a robust design and lower cost compared to capacitive sensors. Various forms of pressure sensors are suitable for digital instruments. The piezoresistive pressure sensor is composed of a diaphragm.
This diaphragm is fitted with piezoresistive elements. The deflection of the diaphragm generates a voltage difference due to the pressure of the medium. This deflection results in a change in the cross-sectional area of the piezoresistive elements. Turn alters the material’s electrical resistance. A pressure reading is subsequently displayed on the digital display by the gauge’s internal microprocessor, which processes the voltage.
• Applications:
Pharmaceutical, food processing, and automotive industries use digital pressure gages. • Hazardous materials are also monitored and contained using digital pressure gages. • The oil and gas industry also employs digital pressure.

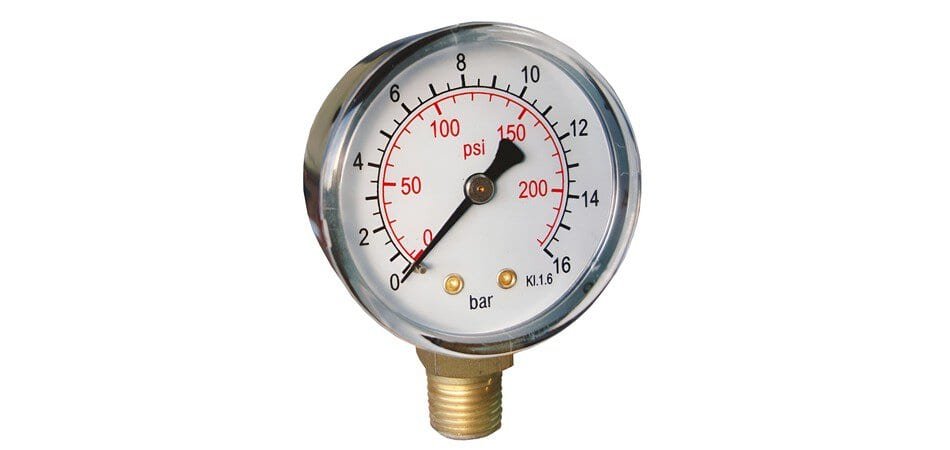

Manometer Pressure Gauge:
The device is employed to measure the pressure of a fluid by balancing one column of fluid against the second column of fluid. The tube in the manometer pressure gauge is connected to the location where pressure is to be measured at one end.
While the other end is exposed to the atmosphere. Symbolizes the most basic variety of manometer pressure gauges. It has a transparent tube shaped like a “U” partially filled with a manometric fluid such as mercury.
• Applications:
Chemical processing, manufacturing, and oil and gas industries rely heavily on manometers. Manometers’ precise regulation of pressure is essential for operational efficiency and safety.
Manometers are employed in heating and ventilation. Manometer works in air conditioning (HVAC) systems to measure and balance duct pressure. They are also used to ensure air quality and optimal performance.
To guarantee patient safety and effective treatment, manometers are utilized in medical devices such as ventilators and anesthesia equipment to check and regulate pressure.

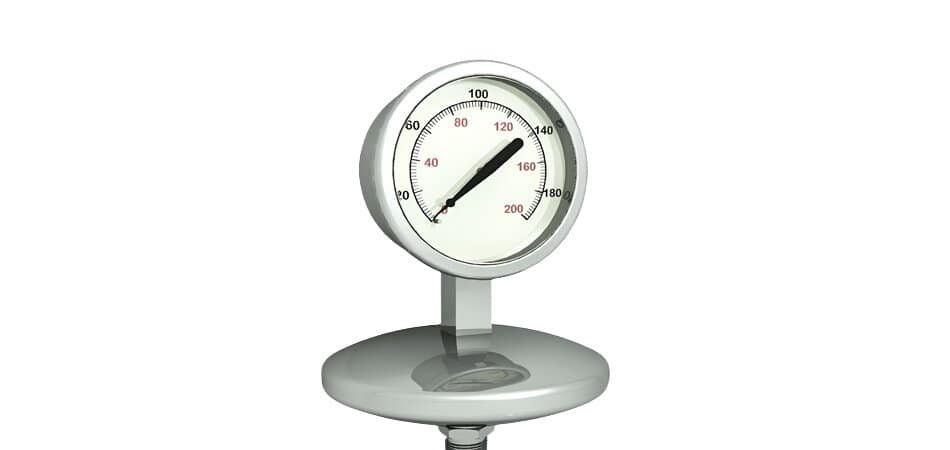

Absolute Pressure Gauges:
Ideally, these instruments are employed to measure pressure that is not influenced by the natural fluctuations in atmospheric pressure. Attached to the side of the measuring element, a vacuum reference measure is impervious to pressure.
Therefore, it is devoid of pressure and exhibits no fluctuations. Their primary application is in scientific laboratories. The absolute pressure instruments are employed in aeronautics, heating, and ventilation. They are also used in air conditioning systems and distillation processes, as altitude does not influence them.
How to Choose Water Pressure Guage:
Some of the factors to take into account when selecting a water pressure gauge for a residential, commercial, or industrial application include:
• Pressure Range:
A water pressure gauge should be rated for the highest possible pressure encountered in the system.
• Accuracy:
The gauge must satisfy the application’s accuracy requirements. A gauge with a full-scale accuracy of 2-3% is generally acceptable for most applications.
• Visibility And Size:
The gauge should be appropriate for the installation location, and the instrument should be sufficiently large to be readily readable by the operator.
• Mounting options:
The gauge should be compatible with the mounting options for the installation location.
• Materials:
The gauge and its internal components should be constructed from materials resistant to corrosion, abrasion, and other factors typical of the process.
• Environmental Factors:
The gauge must be capable of withstanding the prevalent temperature and humidity levels at the installation site.
• Certification:
Choosing a gauge that complies with the pertinent certifications and standards is crucial if the application is in an industry with specific regulations. Certifications and standards are subject to change and are contingent upon the location and application. Still, there are currently some common standards:
ASME B40.100 is the standard for pressure gauges in the United States. It establishes guidelines for pressure gauges’ design, construction, and performance.
• Installation Considerations:
Bellow and diaphragm gauges may necessitate unique mounting arrangements. At the same time, Bourdon gauges have a more straightforward installation process.
Water Pressure Gauge Material
Plastic, brass, black-painted aluminum, stainless steel, and other materials are frequently employed to produce gauge cases. A hermetically sealed or impermeable gauge is necessary if exposed to liquid or humidity.
Additionally, consider the case’s structural design. Pressure gauge features are solid or exposed on the front. Most gauges do not require a substantial front, as they will be utilized for general pressure measurement.
However, a solid front gauge may be appropriate when process media, such as refineries, are of more significant concern. When making decisions regarding the material, it is essential to consider the cabinet—and the process connection of a pressure gauge.
- Process Connection:
This refers to any component that is in direct contact with the fluid. The threads and sensing element are the typically included components. However, the specific components are contingent upon the sort of pressure gauge. Stainless steel or copper alloys are the standard materials. Gauge failure and elevated safety hazards, such as corrosion, may result from material incompatibility.
- Cabinet:
The cabinet is also referred to as the housing material. It depends more on the application’s environment and has a broader material selection. Stainless steel, Inconel, aluminum, and copper alloys are the most frequently used materials for pressure gauge housing.
- Fluid Temperature
Pressure gauge components must be capable of withstanding the temperature of the media. Using a siphon, cooling tower, or diaphragm seal in conjunction with heated media instruments is advisable. For the pressure gauge materials, the utmost recommended fluid temperatures are as follows:
- Copper alloys:60 °C (140 °F)
- Stainless steel:100 °C (212 °F)
- Inconel:315 °C (600 °F)
- Pressure Range
The gauge’s most significant and minor pressure readings are the pressure range. Ideally, the gauge’s measure should be twice the system’s working pressure. The gauge’s scale should be at most 75% of the working pressure.
Industry’s Applications:
Water pressure in pipelines, containers, and other vessels is measured by pressure gauges for water in various industries. It guarantees that the system operates within safe and efficient parameters.
Water pressure indicators are utilized to monitor water flow and pressure levels. The water pressure of various systems, including cooling, heating, and process water. These instruments can be measured in various contexts, including power plants, manufacturing facilities, and buildings.
In the event of any anomalies, the pressure gauge functions as a diagnostic instrument to pinpoint the problematic area within the system. The latter are illustrations of the locations in which water pressure instruments should be installed in a power plant:
• Boilers:
The pressure feedwater and steam of power facilities that employ boilers should be monitored by installing a water pressure gauge at the inlet and exhaust of each boiler.
• Cooling towers:
Like furnaces, water pressure gauges are installed at the inlet and outlet of cooling towers to check the pressure of the circulating water.
• Pumps:
Install water pressure gauges at the discharge to check the water pressure and flow rate emanating from the pumps.
• Pressure drop points:
Install a water pressure gauge after any point in the system that generates a significant pressure decline, such as after a filtration unit. By doing so, the pressure decrease will be monitored to prevent it from exceeding the acceptable range.

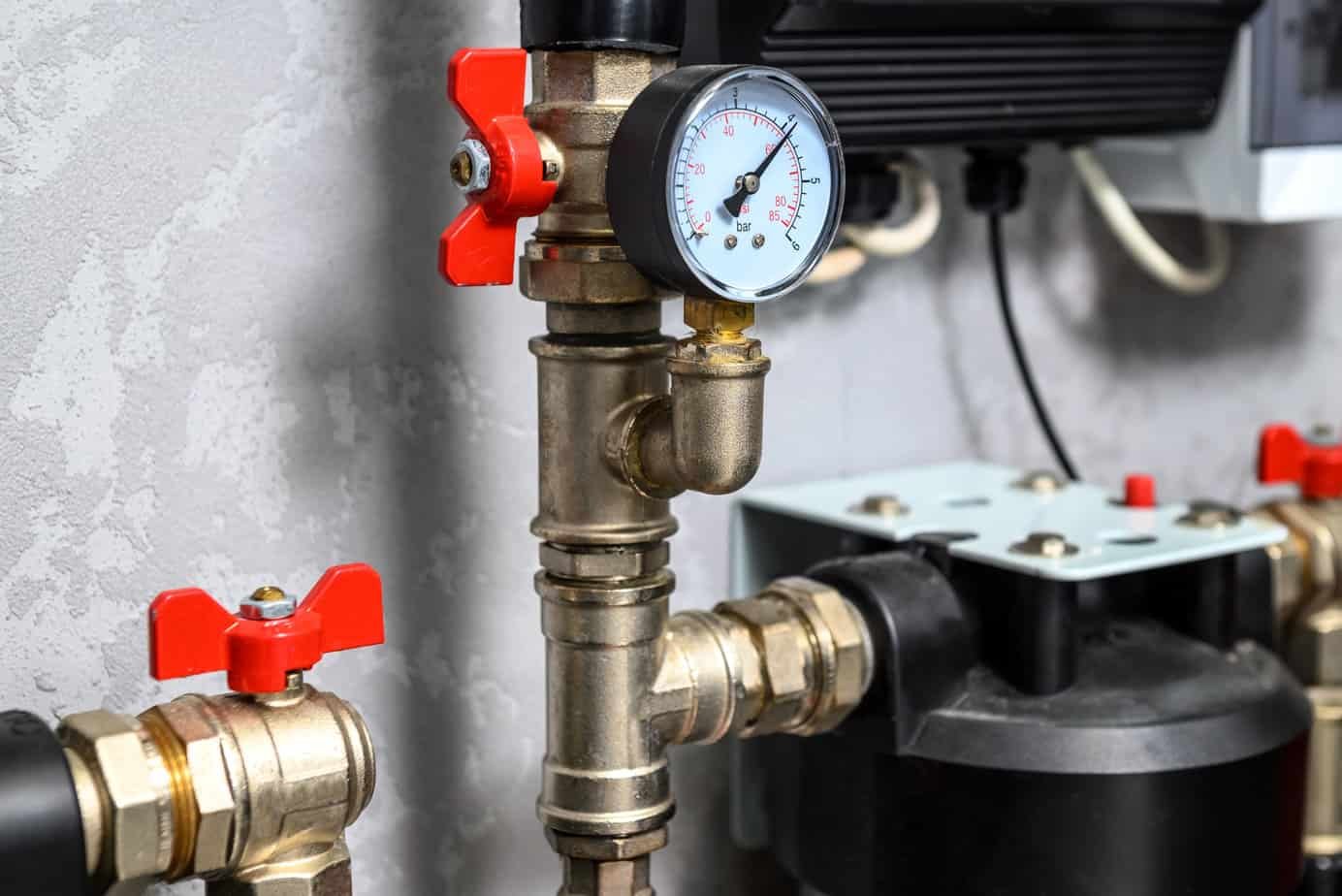

Residential And Commercial Applications:
A water pressure gauge should be installed near a primary water control valve in commercial and residential plumbing systems. It is recommended that they are typically located near the point where the water supply enters the structure. This will enable monitoring of the incoming water pressure to guarantee it remains within a secure range.
If the system includes a pressure-reducing valve, it is also recommended that a pressure gauge be installed on the discharge side. A pressure gauge is located at the outlet of the PRV. PRV operates correctly, and the pressure at the building’s drains (such as basins and showers) is secure.
Conclusion:
Suitable for both residential and commercial settings. The Water Pressure Gauge category provides a concentrated selection of gauges. You can guarantee that your water system operates at an optimal pressure level.
You can guarantee safety, efficiency, and comfort by utilizing options such as the Monument 2510F Mains Water Pressure Gauge. Selecting the appropriate pressure gauge is crucial for the precise measurement of pressure.
Also, you need to maintain the safety and efficacy of your systems or processes. You can decide by comprehending the many pressure gauge types, their features, applications, and factors to consider. Consider the long-term maintenance and calibration needs. Compare the advantages and limitations of each variety, and test your specific requirements. You can take advantage of the assurance that your pressure measurements are precise, reliable, and tailored to your requirements when you have the appropriate pressure gauge deployed.
