Ultimate Guide To Radiator Drain Valve Types

In this blog post, you’ll read:Understanding various radiator valves is crucial for an efficient heating system. This guide covers types like manual, thermostatic, and smart valves, detailing their functions and selection criteria. Choose the right valve to enhance your system's performance, energy efficiency, and comfort. Proper installation and maintenance ensure optimal heating, tailored to your needs.
Table of Contents

Introduction

One must understand the various radiator drain valves to maintain an effective heating system. These are essential valves in regulating the flow of hot water that courses through your radiators, ensuring heat distribution to all areas of your house. This comprehensive guide outlines different types of radiator valves and their functions and information on selecting the suitable valve for your requirements.

What Are Radiator Valves?

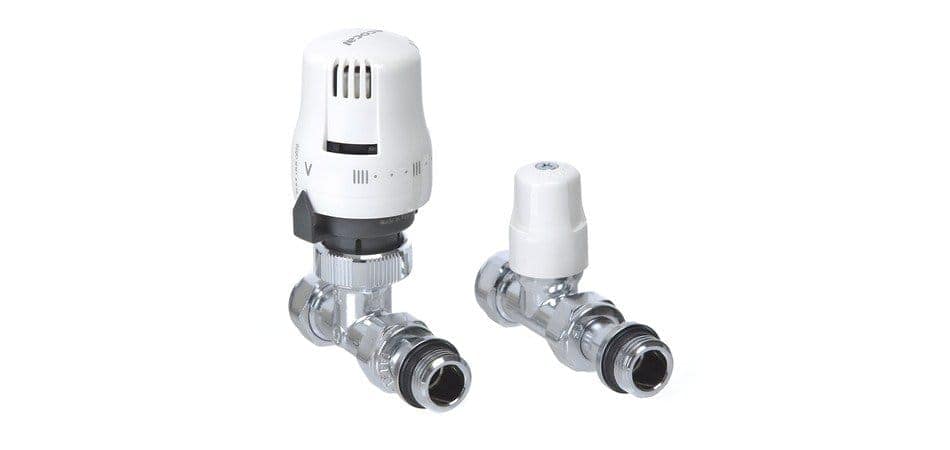

radiator valves
radiator valves

Radiator valves are attached to radiators and permit the flow of hot water within the system to be regulated. This allows the temperature of individual radiators to change by controlling each unit’s hot water in and out. Properly working radiator valves are necessary for maximum heating efficiency and comfort inside your home. There are various styles of radiator valves intended for specific purposes and configurations for installation.

How Radiator Valves Work?

Radiator valves allow water to flow in and out of the radiator by opening and closing. When open, the valve lets in hot water from the central heating into the radiator, thereby heating it. The now-heated water flows through the radiator, then out via the return valve, and back to the boiler to be reheated.

The flow side describes the side where hot water enters the radiator, while the return side is where it leaves the radiator. These sides should be correctly identified so the radiator valves can be fitted correctly and serve the intended purpose.

 Thermostatic radiator valves set the flow automatically to the room’s temperature. They work independently to bring sharper control over the heating system. Manual flow control valves, by contrast, require manual adjustment to set flow.

Radiator Drain Valve Types

Manual Radiator Valves

manual radiator valves
Manual radiator valves

Manual radiator valves are the most basic kind of radiator valves. They work the same way as any tap; you shut off or allow a flow of hot water into the radiator. If you turn the valve head clockwise, the flow will decrease; if counterclockwise, it will increase.

 So, using these valves is pretty simple, and many older heating systems are equipped with them. However, they do not have the accuracy of thermostatic valves in keeping the temperature at the required level, as this has to be done manually.

Advantages:

  • Easy and straightforward to use.
  • Generally inexpensive compared to thermostatic or intelligent valves.
  • It is used with fewer fingerprints and thus is reliable, with few components that can fail.

Disadvantages:

  • There is no automatic control of temperature.
  • It requires manual adjustment.
  • The heating could be uneven if not adjusted properly.
  • It wastes more energy than the thermostatic valves.

Thermostatic Radiator Valves (TRVs)

thermostatic radiator valves with cp
thermostatic radiator valves with cp

These thermostatic radiator valves are far superior to manual ones because they shut off the flow of hot water automatically when the temperature rises and turn it on again when the temperature drops in a room. The sensor, in other words, detects the surrounding temperature and opens the valve accordingly so that the temperature remains constant.

TRVs not only provide comfort but also enable energy efficiency by avoiding overheating. These may fitted to either the flow or return side, although fitting to the flow side will allow optimum performance.

Advantages:

  • They automatically reduce radiator output at room temperature.
  • Energy efficiency is increased by the reduction of heat to unused areas.
  • Allows for accurate temperature control.

Disadvantages:

  • The initial cost is higher than manual valves
  • Periodic service/maintenance of the TRVs is required to ensure correct temperature control.
  • Their installation procedure is more complicated compared to manual valves.

Smart Radiator Valves

smart radiator valves
Smart radiator valves

Intelligent radiator valves represent the very latest in radiator control. They are controllable remotely via a smartphone app or integrated with smart home software. In addition, they allow for precision temperature and scheduling control, letting you heat your home wisely.

 Many of these intelligent valves will have learning algorithms that learn your habits of heating and occupancy sensors, allowing the valve to adjust the temperature depending on whether a room is occupied.

Pros:

  • It provides remote control and programming via smartphone or voice command.
  • It can integrate with any home automation system for peak energy management.

Cons:

  • It is expensive to acquire compared with manual and TRV valves.
  • Requires a smart home system or hub for its complete operation.
  • It operates on batteries or must be supplied with power to run.

Lockshield Radiator Valves

These are fitted on the return side of the radiator and enable the operator to balance the heating system. They are adjusted during installation and locked against tampering. The function of the lock shield valves is to control the water’s return flow to the boiler so that all radiators get the appropriate volume of hot water to have even heating throughout the house. Balancing home radiators with lock shield valves can help improve the overall efficiency of your heating system.

Advantages:

  • All systems require balancing for even heat distribution
  • Minor adjustment is needed after setting a reliable
  • Helps to optimize overall system efficiency

Disadvantages:

  • Initial setup and calibration required a bit, which is complicated
  • These cannot control the temperature of individual radiators
  • Less flexible compared to manual or thermostatic valves

Angled Radiator Valves

angled radiator valves
angled radiator valves

Angled radiator valves are designed for pipes from the wall into the radiator. The valve is angled at 90 degrees, thus easily connecting to the radiator without using other fittings. Angled valves are standard in modern heating systems where pipework is concealed within walls. They provide a neat and efficient connection between the radiator and the central heating system.

Advantages:

  • Suitable for all installations where the radiator connections are not directly in line.
  • It is easier to install in tight spaces or difficult angles.
  • This valve would help to create a neater and more streamlined look.

Disadvantages:

  • The more specialized design may mean fewer options in styles and finishes.
  • Not for every configuration of radiators and pipes.
  • It may cost more because of the unique design.

Corner Radiator Valves

corner radiator valves
corner radiator valves

Corner radiator valves differ not at all from angled valves; they are designed for installations wherein pipes are run along a wall. They have a 90-degree angle that allows them to fit snugly in corners.

 Corner valves are designed for compact areas where standard angled valves might not fit properly. They offer a clean and effective solution for connecting radiators to the heating system in areas where space is compact.

Advantages:

  • Suitable for radiators that are mounted in corners or installed in cramped spaces
  • Installation is more accessible, and less pipework is involved for a neater look.

Disadvantages:

  • Fewer designs are available for these types of valves compared to most ‘standard’ valve types.
  • Design can dictate specific radiator and pipe configurations
  • Specialized designs are expensive

Straight Radiator Valves

straight radiator valves chrome plated
straight radiator valves chrome chrome-plated

These straight radiator valves are used when the pipes come up from the floor. These valves are connected directly to radiators without bends and are suitable for installations where pipework is visible and runs vertically. Straight valves are installed in most older homes with traditional heating systems. They provide a direct and reliable connection between the radiator and the central heating system.

Advantages:

  • Simple in structure and easy to install with straight pipe connections.
  • Commonly available and inexpensive.
  • Suitable for most standard drain radiator

Disadvantages:

  • It is not suitable for installations where pipes are not aligned directly.
  • Limited flexibility in terms of installation angles.
  • It won’t be as aesthetically pleasing as angled or corner valves.

H-Block Radiator Valves

h block radiator valves
h block radiator valves

H-block radiator valves are designed for radiators with a central connection point. These valves are configured as an ‘H,’ allowing flow and return pipes to connect in the radiator’s center. This type of valve is often used with designer radiators and towel rails to give them a modern appearance. They provide a compact, efficient solution when installed on central connection radiators.

Advantages:

  • Offers flexible pipe connection in several ways.
  • Can install complicated pipework into systems with complex or multi-radiator installation.
  • Gives options for pipework layout optimization.

Disadvantages:

  • It may be more complicated to install and adjust.
  • The initial cost can be higher than other standard types of valves.
  • Probably less common: fewer style options.

How to Choose the Right Radiator Valve

Determine the Valve Type

First, determine what type of radiator valve would be best for your needs. Two major types are manual and thermostatic. While manual radiator valves let you turn the temperature of a radiator by hand, thermostatic radiator valves regulate temperature automatically, depending on room conditions. The potential benefit of TRVs is finer control, which could result in potential energy savings by reducing heat output during periods when target room temperatures are attained.

System Compatibility

Ensure the valve you buy will work with your existing radiator and heating system. There are many different sizes and thread types for radiator valves. Check the size and thread pattern of your current radiator to choose a valve that will fit with it. Compatibility guarantees an obstacle-free installation and proper functioning.

Check Energy Efficiency

For improved energy management, consider thermostatic radiator valves (TRVs). TRVs will save you on heating costs by reducing the radiator’s temperature, depending on the temperature of your room. This can reduce consumption and utility bills since it only heats rooms that are in demand.

Check Valve Design and Style

There are so many different designs for radiator valves, not to mention several finishes. Choose the valve that will complement your interior design if you care about looks. Modern designs and finishes can add touches of class to your radiator setup, helping to add style to the overall look of your room.

Control Mechanism Assessment

Consider which shall work best for you: the manual, thermostatic, or thermostatic mixes. Manual valves are simple and have a plain dial to control heat levels. The thermostatic valve has a temperature sensor and a control dial to automate the adjustments. Prefer what lets you feel comfortable while being able to operate it efficiently.

Check Installation Requirements

Consider installation ease; manual valves are generally easier to install, and thermostatic ones are sure to demand more setup and calibration. You may need professional help setting up TRVs if you have never done DIY work.

Check for Build Quality and Durability

Opt for a valve made from quality material to ensure strength and durability. Select valves with solid constructions. Such valves will not tend to leak or malfunction over time. Brass and chrome materials are used because they are solid and wear-resistant.

radiator valves specs
radiator valves specs

Maintenance Needs

Different valves have different maintenance needs. For instance, manual valves require little maintenance, while TRVs may need servicing periodically to maintain accuracy. Therefore, choose a valve based on your readiness and ability to perform regular maintenance.

Budget and Cost

Consider your budget when choosing a valve. Though thermostatic models are expensive, manual valves always save money. Again, quality thermostatic valves give better value in the long run with improved energy efficiency. Balance your budget against the benefits each valve offers.

Adaptability in the Future

Think about whether the valve will suit future changes in your heating system. If you plan to upgrade the system or make other changes, a versatile valve that accommodates those changes is worth the investment. See that the valve chosen will be compatible with any future modifications or enhancements in the heating setup.

Conclusion

The valves are a critical part of your heating system since it would be through these that the flow of the hot water can be controlled, thus ensuring that the radiators are working effectively. knowing which type of radiator valve and its functions will help you pick the best fit for your home.

From manual, thermostatic, and intelligent models to angled, corner, straight, and H-block, choosing the suitable valve can enhance both performance and efficiency in your heating system. Consult an expert if you have further questions or need assistance regarding your radiator valves. Proper installation and maintenance are vital to ensure that everything regarding your heating system runs smoothly and serves you as it should. Don’t hesitate to get in touch with us if any further needed.
