Introduction

A water temperature control valve is used for pipeline systems to control the passage of liquid or gas and prevent backflow. Moreover, they control the temperature and pressure of a system. This forms one of the integral parts of any system and is used as a control instrument by production and processing channels.

Electrical, hydraulic, or pneumatic actuators could be used to operate control valves. These devices should maintain the temperature of the fluid inside the system to ensure that the process operations are effective. This includes liquid levels, pressure, and temperature. The temperature control valve controls the flow rate, fluid flow, and process extents.

What Are Temperature Control Valves?

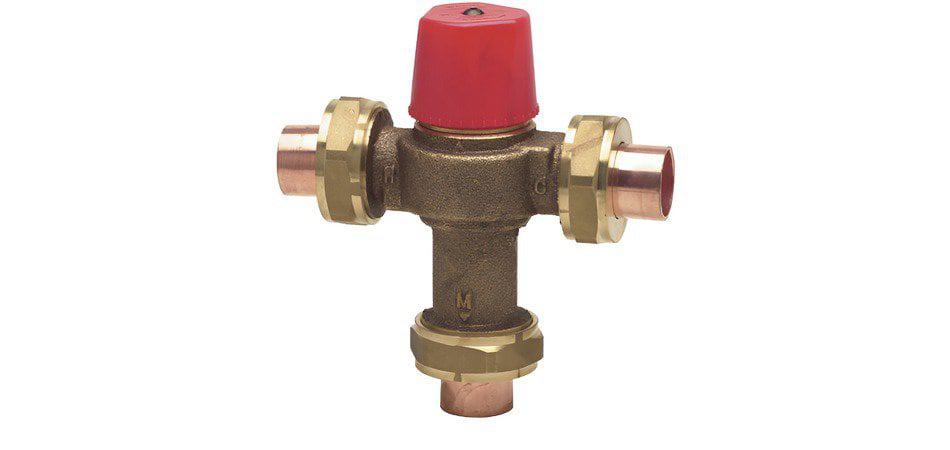

temperature control valves
Temperature control valves

Control valves can be defined as valves used to control a medium’s flow by varying the flow passage’s size by instructions from the controller. It has an application in various industries because it has made direct control of the flow rate easy. The valve industry embraced innovations in control valves for different applications.

The control valve controls the operating conditions, be they pressure, temperature, or gas/liquid levels, by opening and closing partially or depending on the signal received from the controller. Valves used in the industry are similar to the ‘shower faucet. ‘However, control valves are designed with high accuracy and controlled through a control system.

Water Temperature Control Valves Types

There are three types of temperature control valves

  1. Thermostatic Mixing Valves:
  2. Actuated Control Valves
  3. Thermostatic Control Valves

· Actuated Control Valves:

actuated control valves
Actuated control valves



An actuation control valve is part of an integrated system using an external sensor to monitor temperature changes as opposed to internal sensing valves, which use the same external power source to send an input to the PCM, allowing the valve port to open and close. The most common forms of systems are pneumatic, electric, or a combination of both.

Though the following valve needs more components to be functional, it has many advantages. First of all, it is usually more accurate. Therefore, this method is the best solution for the application, as it requires tight temperature control. In contrast to a thermostatic valve, an actuated control valve allows temperature range adjustment with varying operating conditions.

· Uses:

  • Control of water flows through filtration, chemical dosing, and other treatment processes undertaken in water and wastewater treatment plants.
  • It controls and regulates fluid flow automatically for any industrial process, particularly those in the chemical, petrochemical, and pharmaceutical industries.
  • Change fluid flow rate through pipelines/systems to achieve operational specifications, thus meeting efficiency and process stability.
  • Shut off or regulate fluid flow automatically during emergencies to prevent an accident or damage to equipment.
  • It controls the flow of heating or cooling fluids within HVAC and industrial heating processes to maintain required temperatures.

· Thermostatic Mixing Valves:

thermostatic mixing valves
Thermostatic mixing valves

TMVs apply not only to residential systems but also to commercial plumbing. They mix both the hot and cold water to produce a constant temperature at the outlet, independent of fluctuations of either pressure in the supply of water or its temperature.

It uses a thermostatic element that expands or contracts because of temperature changes. TMVs are an essential safeguard against scalding and ensure safe water temperatures, especially in basins, baths, and showers. In most areas, they are statutory in building regulations.

Ensures safe water temperatures for the patient to avoid scalding. Used in hospitals, clinics, and nursing homes, installed in bathrooms and kitchens to provide a safe, consistent water temperature for showers, baths, and sinks. The devices prevent scalding to users, mainly to children and elderly people.

· Thermostatic Control Valves:

thermostatic control valves
Thermostatic control valves

The temperature of the liquid thermostatic control valves is regulated by detection and detection. There is no need for an external power source to be applied to work with this type of temperature control valve.

At the factory or local dealer, the composition of the wax material is calibrated on the specifications furnished by the manufacturer of the engine or equipment to be used, which defines the range of temperatures at which the operation will be carried out.

When the thermostat element has reached the desired temperature, it cannot be reset to its former self and must be replaced with a new one. This efficiently designed but robust creation avoids what an operator would do in overloading and overcooling equipment, causing poor fuel economy, entailing extensive maintenance, and creating downtime.

· Uses:

  • Holds constant the temperature of water in sinks and showers
  • Keeps constant the temperature of water in systems subjected to exact thermal conditions
  • It prevents scalding by holding the temperature of the water constant.
  • Provides safe water temperatures in high-use environments

Uses of Water Temperature Control Valves:

water temperature control valves
Water temperature control valves



  • Water temperature control valves control the flow of fluids, either water or steam, to attain a desired system temperature.
  • They are applied in residential heating and conditioning systems and industrial and commercial settings.
  • The temperature control valves are also applied in industrial process control of manufacturing processes to modulate the temperature of substances/gases involved in the operation.
  • It ensures that the process works within the recommended temperature range to avoid damage to equipment while ensuring maximum output is achieved.
  • The temperature control valves in refrigeration systems regulate the amount of refrigerant to be admitted to the evaporator and maintain the required temperature in areas that have to be refrigerated.
  • One of the common uses of temperature control valves is in HVAC. This is because they allow temperature adjustment in air or water flowing through a system.
  • It controls the temperature of air or water in a building or facility to that level, providing comfort conditions for residents.

Factors to be Consider While Choosing the Right Water Temperature Control Valve

water temperature control valve with chrome plated
water temperature control valve with chrome-plated

Selecting a temperature control valve is crucial for comfort, efficiency, and, most importantly, safety. In this regard, the following are some factors to consider:

· Define Your Application

First, it is critical to understand the actual application of the valve in which to invest. Different requirements exist for different control valves. For instance, the shower system of a domestic house differs from the kind of system to be anticipated in industry processes. Attributes such as the maximum pressure of water, temperature range, and discharge rate facilitate the purchase of the most appropriate valve.

· Safety Features

Safety comes into play when discussing water temperature regulation in this claim. Valves containing safety features, such as automatic shut-off and anti-scald technology, will work well to prevent surprise accidents, especially in institutions like hospitals and schools and at home.

Hospitals, schools, and homes will always have young kids and aging parents; these groups will likely get scalded. Uncovering a valve containing these safety features will reduce such danger and likely injuries, thus giving the user confidence in turning around such surroundings.

· Flow Rate

The flow rate within the system is the other influential parameter. It is a defining factor in a case where a constant water supply is necessary. The valve should be capable of handling the flow without losing energy. In particular, it should not reduce the pressure in any way.

In the case of over-demand, a high-capacity valve should be in place. By knowing the requirements of the previously mentioned flow rate, the valve becomes in a position to work with effectiveness.

· Temperature Range and Accuracy Standard

Each valve retains the accurate temperature and is placed in specific temperature conditions. If sectors need high accuracy, they are like hospitals and laboratories. The type of valve will keep desirable conditions without necessary constant tuning since a required temperature range is known and the necessary level of precision is defined.

· Compliance with Standards

Water temperature-mixing control valves must follow local and international set-up requirements safely. Many standards have set up safety features, material content, and temperature control standards.

One can be safe and produce sound output depending on compliance with the standards. So, ensuring that the valve meets any subjected standards such as ASSE, CSA, or EN is vital. This confirms that the valve has gone through all the requirements per the necessary regulations.

· Material and Durability

The material used in running the valve manufacturing dictates its durability and the context of its application. Common construction materials are brass, stainless steel, and plastic. Stainless steel and brass valves are very durable due to their capability to resist corrosion.

The valves can fit in environments and require long service durations, especially where the surrounding conditions are hazardous. The plastic varieties can be used in less critical applications. However, they are less durable than other metals. Selecting the suitable material will ensure that the valve remains effective even with time.

· Types of Valve

The valves used in water temperature control are thermostatic, pressure-balancing, and manual mixing. Pressure-balancing valves relieve and balance the pressure without any temperature adjustment, but a thermostatic valve will recompense to avoid scalding.

A manual mixing valve requires a user to achieve the desired temperature by combining the two water streams, whether hot or cold. Know the differences to determine which valve will work best for you.

Conclusion

Control valves are the devices that play a crucial role in the accurate and efficient flow of fluid control. Their importance must be considered. They are helpful in many applications and must be flexible with the system conditions and constraints.

Proper selection, installation, and maintenance of these valves require good engineering decisions. With smart technologies and continuous innovations, the importance of control valves will increase.

This improvement is expected to continue to benefit industrial and residential systems. Having such systems in industries will ensure process reliability and sustainability. This adoption can be a crucial driver of significant strides in efficiency and sustainability.
