| Brass Angle Thermostatic Radiator Valve This brass angled thermostatic radiator valve is a dedicated temperature control fitting made for household and commercial radiator heating systems. It automatically changes the hot water flow going into radiators to keep room temperatures steady. This fitting is bent at 90 degrees, so it fits wall and corner radiators perfectly. The twist knob on the top lets you manually adjust heat output easily, and you can set different warmth levels for individual rooms or zones as needed.
|
|
| 3-Way PVC Ball Valve This three-way PVC ball valve splits and controls liquid flow within pipes. It’s widely used in water treatment, chemical projects, and farm irrigation systems. Inside, there’s a T-shaped ball; simply turn the red handle 90 degrees to switch or cut off fluid flow. It’s cheap and easy to use for liquid pipelines in factories and farmland.
|
|
| Brass Boiler Drain Valve This brass drain valve is made just for boilers and other gear that needs regular draining, such as gas water heaters and floor heating units. It has a 90-degree flow design, so you can mount it on the bottom or side drain openings of boilers without trouble. The red handwheel lets you open or close the water flow simply. It comes with male threads on its bottom and side ends, so you can hook it straight to your machine or water hoses.
|
|
| Bronze Downspout Nozzle This bronze rain spout nozzle is a dedicated diversion fitting built for building roof drainage to channel away rainwater. It comes with a flange joint to lock firmly onto drain outlets. Its curved inner channel lets rainwater flow smoothly through turns, lowering water impact and quieting drainage noise when it rains hard. This sturdy piece lasts a long time and works great for all roof drainage setups.
|
|
| Steam Radiator Valve This steam radiator valve controls water flow and is made to work with steam heating systems. It works great when updating old buildings or fitting new factories. The 90-degree bent shape fits neatly in corners right on steam radiators. The black handwheel on top lets you tweak steam flow or fully close the valve whenever you want. It does two jobs at once: adjust the flow and cut off the whole heating system.
|
|
| Spring Vertical Check Valve This vertical spring check valve has a small straight-through shape made to fit vertical pipe setups. Inside, there is a spring-driven valve core that stops liquid from flowing backward in your piping system. The spring design works without relying on gravity, so it keeps working steadily even when fully installed upright. It’s a great choice to stop backflow for pump outlet pipes and all kinds of vertical water supply and drain lines.
|

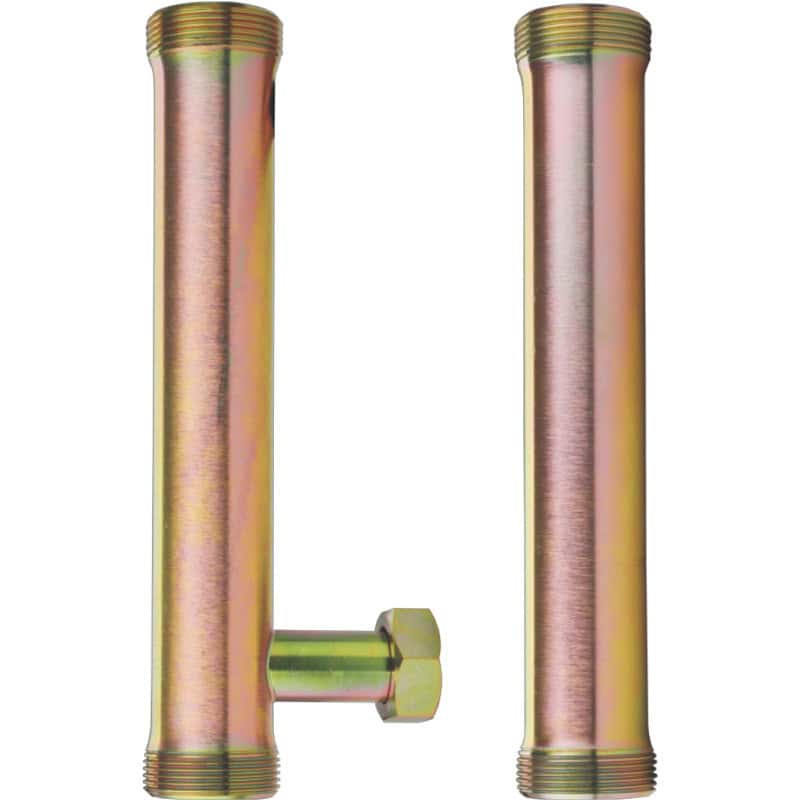

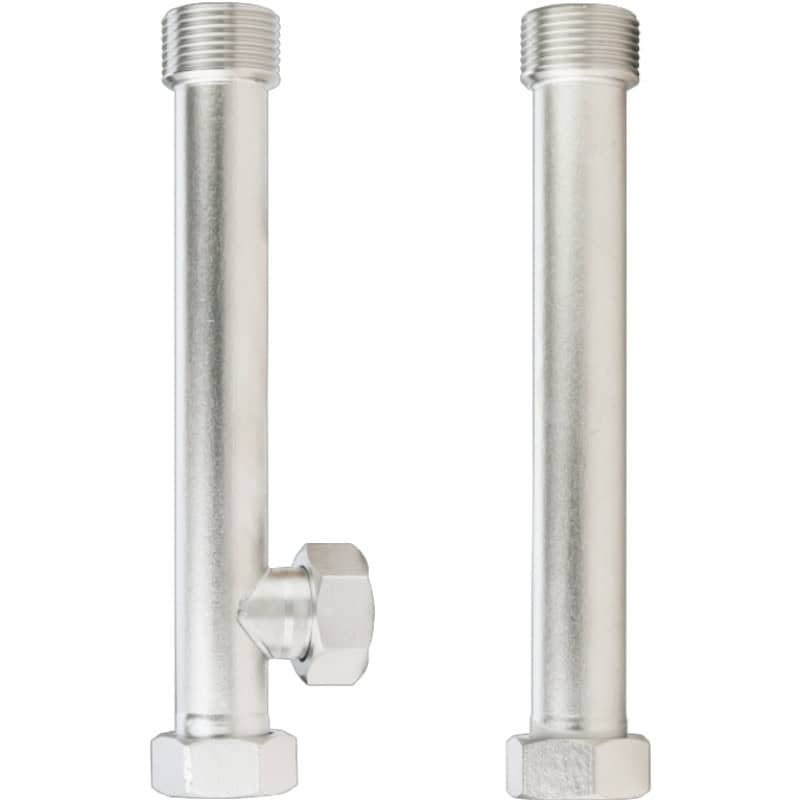

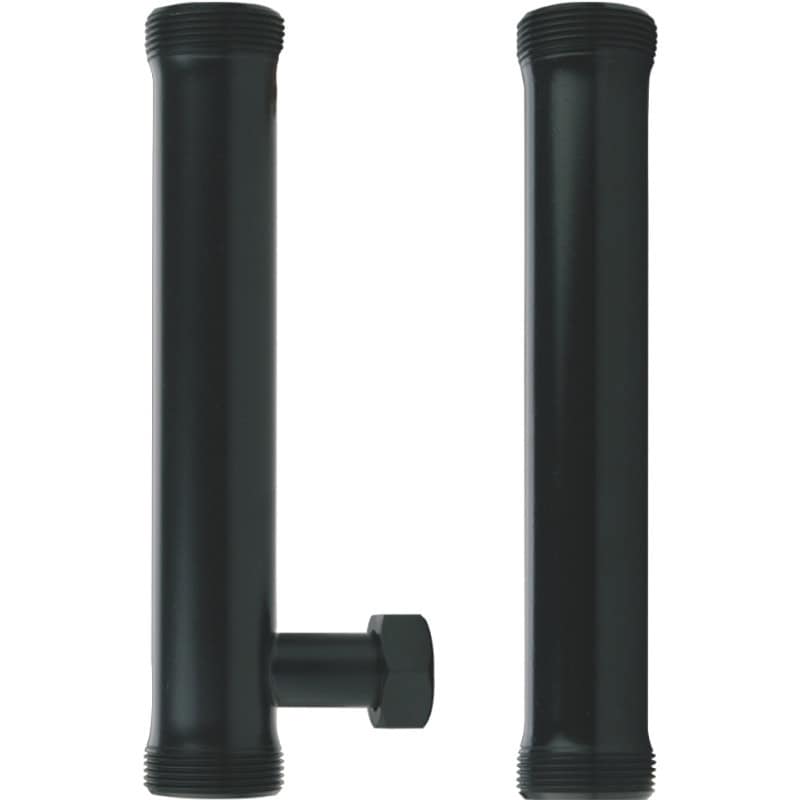

Pump Station Pipe
Pump Station Pipe
This pump station pipe works as a steady flow line for pump setups. It has a side opening built right in, so you can quickly fit pressure gauges, air release valves, or sensors to track how your pump runs. The longer tube design also lets you tweak the spacing between the pump and main piping. This piece fits well for water supply and drain pump stations, HVAC circulating loops, and many industrial liquid transport jobs.
- Model No.: JX-10030
- Material: Stainless steel 304/Iron
- Surface treatment: Electrolysis, electrophoresis, electro-zinc plating(yellow)
- Specifications: 1″, 1-1/2″
- Applicable medium: cold and hot water
- Type: Hydraulic balance/Hydraulic distribution
- Nominal pressure: 6bar
- Working temperature:0 -10℃-110℃
- Application System: Heating Boiler, Air Energy, Water tank, Radiator, Floor heating
- Increase the connection length between system components
- With a 3-year warranty
- OEM/ODM service available
- Free sample
- Free raw materials analysis testing report.
1. Is the Pump Station Pipe suitable for open and closed circulating water systems?
Absolutely yes, our pump station pipes work great for both open and closed circulating water systems, and we match different pipe materials for each system’s special working conditions. Closed-loop systems run under fixed, stable pressure with clean water inside, so we supply seamless steel tubes or thick-wall stainless steel pipes with a wall thickness above 2.0mm for this use. We also add a complete anti-corrosion coating on the inner pipe wall, which slows mineral scale build-up by over 60%, keeps water flowing smoothly nonstop for 10+ years of continuous operation.
Open circulating systems let water touch outside air nonstop, which easily creates limescale and algae inside pipes. For this environment, we only use grade 304 or 316 stainless steel pipes. These two steel types can resist oxidation and water corrosion 3 times better than ordinary iron pipes, stopping rust and slimy algae layers from forming on inner pipe surfaces even with long-term air contact.
No matter which circulation system you use the pipes for, every single pipe will finish two standard pressure tests before packing. We pump water to 1.5 times the normal working pressure and hold pressure for 30 minutes to check for leaks. All passed test records will be attached to your shipment, to make sure the pipes run safely and steadily once you install them on your water circulation equipment.
2. Can you provide MTRs for the Pump Station Pipe?
3. Is each Pump Station Pipe pressure tested before shipment?
Yes, every single pump station pipe gets full pressure testing before shipping out. Our factory has a dedicated test zone with 150 trained inspectors who test each pipe one by one; no finished pipes skip this testing step at all. All test data is logged and saved permanently for later quality checks.
The first test we run on every pipe is an air tightness inspection. We block both ends of the pipe completely, then fill dry air into the tube and raise the pressure to 1.2 times the standard working pressure. High-accuracy sensors watch the pressure value for 10 minutes straight. This test finds tiny pinholes and thin microcracks that simple water tests can easily miss.
Right after the air test passes, we move on to water pressure testing. We fully fill the pipe with clean water and boost pressure up to 1.5 times its rated working pressure, keeping this pressure unchanged for a full 30 minutes. We watch all pipe walls and connection spots closely to spot any water seepage. Every pressure value and inspection result is written down on a test record form attached to your order.
4. How to start a custom Pump Station Pipe order?
Starting a custom pump station pipe order only takes 3 easy opening steps. You can share clear CAD drawings, rough hand-drawn sketches, or just tell us your real usage problems and size demands directly. Our tech staff will recommend 3 common durable materials: standard brass, anti-dezinc DZR brass, and 316 stainless steel. We pick the best match based on your working environment and local customers’ habits, and double-check all key sizes plus thread standards to guarantee a perfect fit with local pipeline systems. We also offer two logo printing methods: casting logos into pipes or laser engraving on the surface for your brand.
After we sort out all material, size, and branding details, we will send complete CAD drawings for your review within 2 working days. Next, we make free pre-production samples for you to test. We will not begin large batch production until you fully confirm the sample quality and pass all pressure, tightness, and size tests, which avoids rework and delays to your project.
There are 3 simple channels for you to send custom order requests anytime. You can fill in the demand form on Plumberstar’s official website, send all your design details to our dedicated customer mailbox info@plumberstar.com, or chat straight with your exclusive sales agent. Our team will reply to every customer inquiry within 12 working hours.
5. How to prevent Pump Station Pipe deformation during transportation?
We start protecting each pump station pipe one by one to stop bending and surface marks. Regular pipes get wrapped in 3mm thick soft foam and sealed in plastic bags alone. For heavy, thick-wall pipes, we add hard-shaped foam covers as an extra-tough outer layer. This thick soft wrap takes all hard hits during moving, so there will be no scratches or small dents on the metal pipe surface.
Every wrapped pipe goes into small inner boxes with thick cardboard splitters; each pipe sits in its own space and never touches another pipe. We pack these inner boxes into strong 5-layer or 7-layer outer cartons, and stick 2 cm-thick cardboard protectors on all four box corners. These corner pieces take hard bumps from forklifts or stacked boxes and keep the pipes inside from bending out of shape.
All sealed cartons are stacked on two safe pallet types: light plastic pallets or ISPM 15 heat-treated wooden pallets that work for all sea shipping worldwide. We only pile boxes up to 5 layers high to stop the bottom boxes from being pressed flat and bending the pipes. Finally, we wrap the whole pallet tightly with stretch plastic film to lock all boxes steady, so they will not slide around on ships or trucks.
6. Can DDP service be available for the Pump Station Pipe?
Yes, we provide complete DDP door-to-door delivery for all pump station pipe orders. After you lock in your order, just tell our sales team you want DDP service and send us your exact receiving warehouse address. We will note down your address details within 1 working day and start sorting out the full delivery plan for you right away.
Our team takes care of every single shipping step from our factory floor straight to your warehouse. We load all pump station pipes, book sea or air shipping space, finish all import customs work at your local port, and pay all import taxes for you. You do not need to fill out any customs papers or pay extra fees along the way. When the goods reach your door, you only need to sign your name and check your pipes.
We calculate all DDP delivery fees based on four straightforward factors: your total order quantity, whether you pick sea or air shipping, the delivery distance to your location, plus your country’s local import tax rules. All quotes we send break down every expense one by one, such as sea or air freight, import tax, customs processing fees, and pallet packing costs. There are no hidden extra charges at all; every cost figure on the quotation is fully transparent for you to review.
