Compact Thermostatic Mixing Valve
Compact Thermostatic Mixing Valve

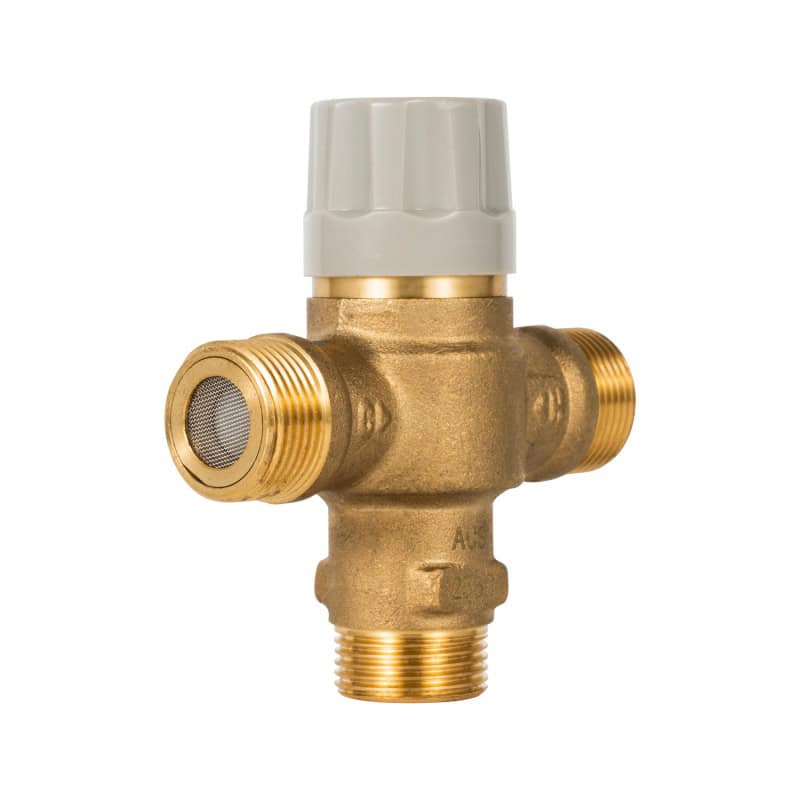

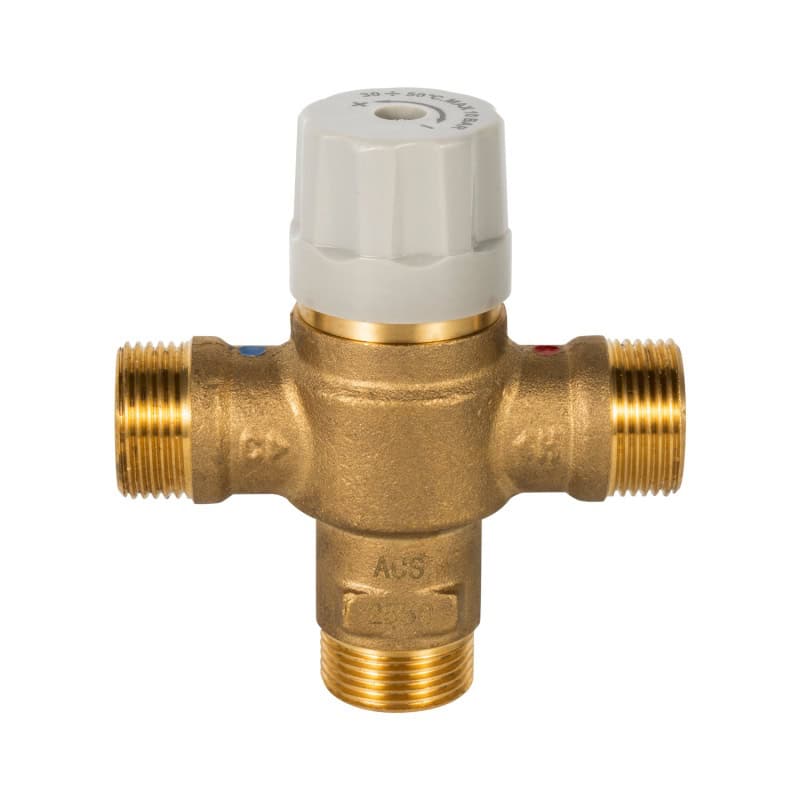

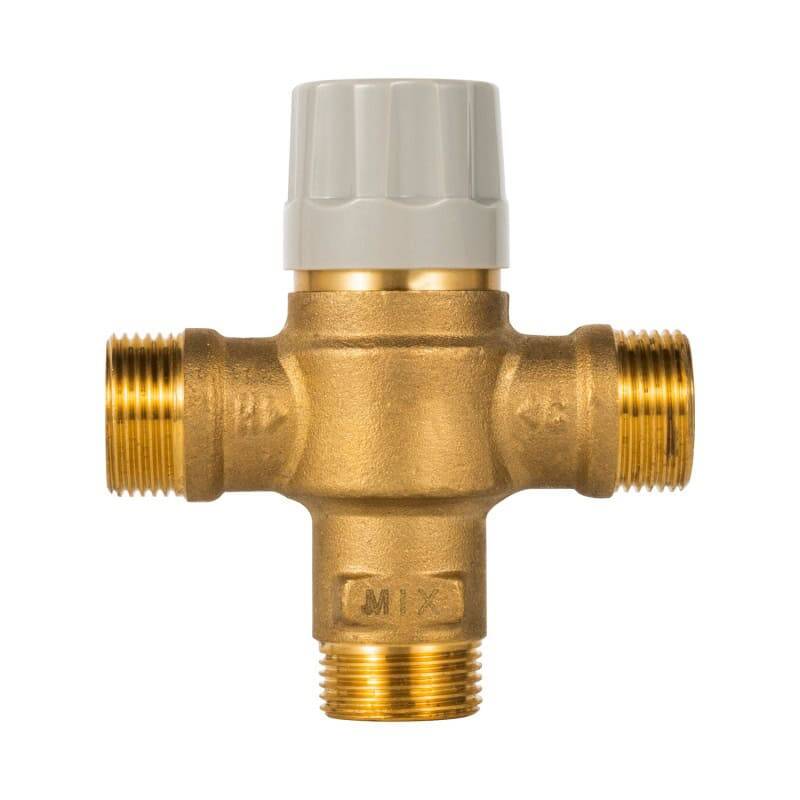

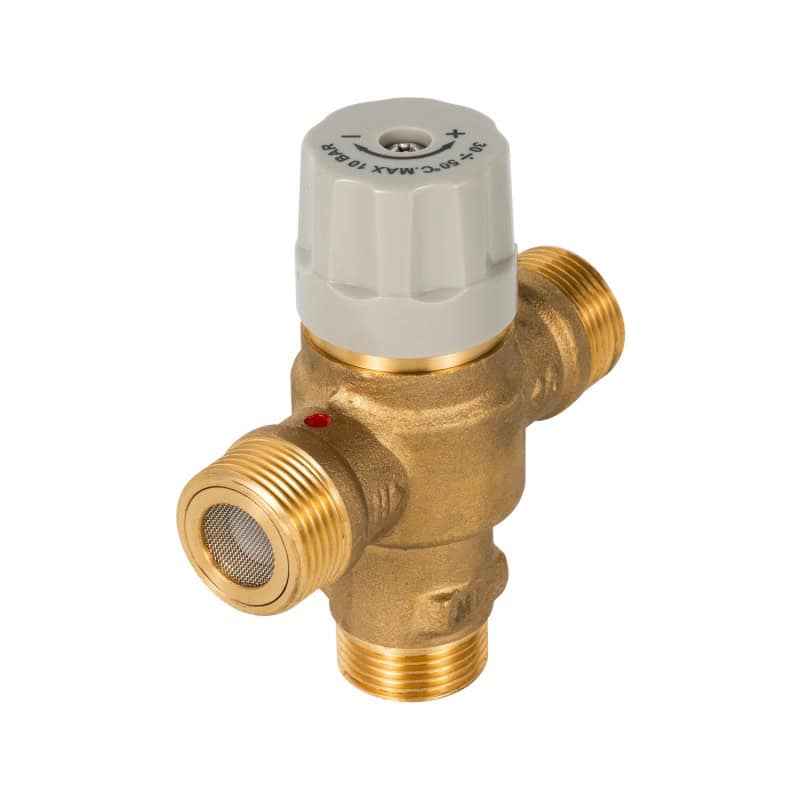

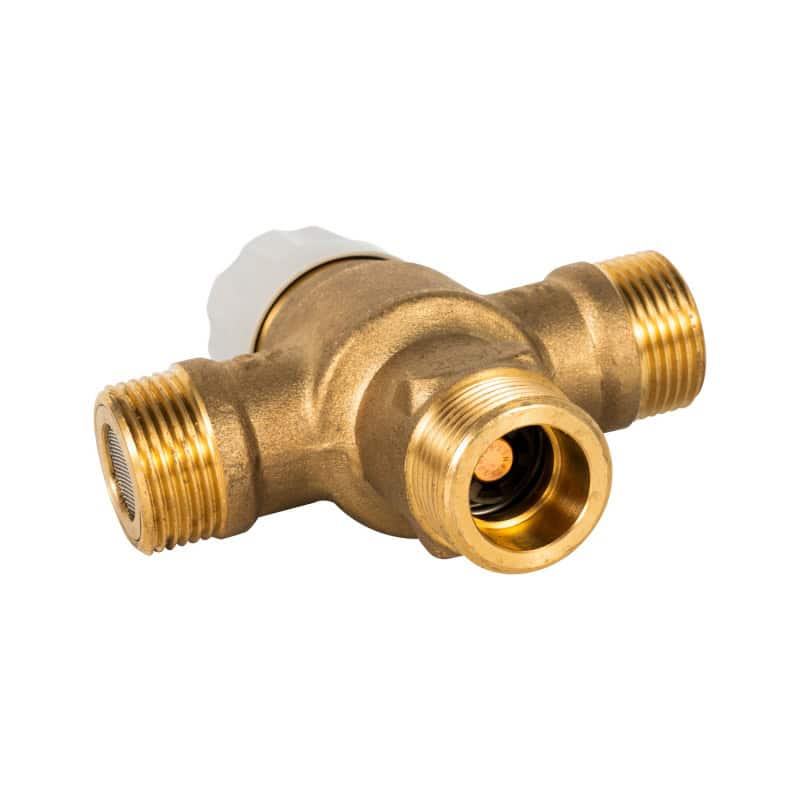

This compact thermostatic mixing valve features a built-in thermostatic component and valve cartridge that automatically adjusts the cold-to-hot water mixing ratio based on the outlet temperature. The top knob is used to set the target temperature. All three ports adopt standard external threads for direct connection to cold water, hot water, and outlet pipelines. It works well with water heaters, wall-hung boilers, and solar water heating systems.
- Model No.: JX-10111
- Size: 3/4″, 1″
- Material: CW511L, CW617N
- Control knob material: ABS
- Finishing: Sand blasted
- – Obturator: PSU
- – Springs: stainless steel
- – Seal elements: EPDM
- – Cover: ABS
- Adjustment range: 30–50 °C
- Accuracy: ±2 °C
- Max. working pressure (static): 10 bar
- Max. working pressure (dynamic): 5 bar
- Max. inlet temperature: 85 °C
- Inlet temperature recommended for optimum performance: ≤65 °C
- Max. inlet pressure ratio (H/C or C/H): 2:1
- Min. temperature difference between the inlet hot water and
- outlet mixed water to ensure anti-scald performance: 15 °C
- Min. flow rate for stable operation: 6 l/min (3/4”)
- Connections: 3/4” M with built-in check valve at the inlets
- Thermostatic mixer with anti-scald protection
- Spring material: Stainless steel spring
- Ideal for domestic hot water heating networks in individual housing, condominiums, or public buildings
- Anti-scalding and anti-thermal shock function
- Standard: ACS, EN228, CE
- OEM and Custom are available
- Free samples
- Free inspection report
1. What is the MOQ of the compact thermostatic mixing valve?
Our compact thermostatic mixing valves have an MOQ of 1,000 units. Standard samples are free; you only pay for shipping. Custom samples incur a small fee, which will be credited to your next formal order. We have an in-house lab to provide inspection reports, and we also support third-party testing, with all documents sent alongside shipments. You may mix 1/2″ and 3/4″ models to reach the order quantity.
2. Does your compact thermostatic mixing valve meet Europe standard?
Our compact thermostatic mixing valve meets relevant European standards. We use CW617N and CW510L lead-free brass as raw material. Our products maintain lead levels under 0.25%, well below the EU’s 0.5% standard. They hold French ACS certification and fully meet EU Regulation 2020/2184. Temperature stays steady within a ±1°C range, and our factory sets the factory default temperature to 38°C. If water pressure shifts by ±20% or the hot water supply cuts out entirely.
We have been exporting this product to Germany, France, Italy, Spain, and other European countries for 10 years. Its ISO228 threads match local pipe fittings. We provide English and bilingual certification papers for each shipment to avoid problems during customs clearance and product returns. Over this decade, we have shipped orders to 18 European countries and regions.
3. Can you pre-set the compact thermostatic mixing valve before shipment?
This small thermostatic mixing valve can be pre-set to fixed temperatures at our factory. All work follows the EU bathroom temperature control industry rules. You may set a steady temperature anywhere from 30°C to 45°C. Small tweaks of 0.5°C are available inside this range.
Once we finish temperature calibration, we fit a special lock clip on the temperature knob. This clip makes the knob 80% harder to twist by hand. It stops the knob from shifting accidentally during shipping, storage, and on-site fitting. The factory-set temperature stays unchanged through every step. Every batch ships with its own temperature record paper. The paper shows the exact fixed temperature for all valves in that batch. We pull one sample out of every 200 valves to test temperature stability. We record temperature changes for 10 straight minutes during testing. Temperature errors never go over ±0.8°C.
We offer more than the standard preset temperature service. We also make custom changes to fit unique needs. You can ask for special mixed outlet water temperatures, take off the lock clips, or adjust the valve’s temperature damping. We save all your custom settings and lock them into our production system. Our factory builds all valves strictly from your technical drawings and requested parameters. Every mass-produced valve holds the same steady temperature control performance.
4. Can you customize installation instructions for the compact thermostatic mixing valve?
Plumberstar provides fully customized installation manuals for our compact thermostatic mixing valves. We also put in practical content for local use. You will find installation tips, pressure adjustment guides, and steps to set temperatures. We add burn prevention reminders, certification logos, and warranty terms, too. Common faults and fixing methods are also included.
We list the default factory temperature settings as well. We add guides for removing and fixing clips. These details work well with our temperature lock function. We permanently archive all original files, so you can reuse them for repeat orders without redesign work. Free high-resolution PDF copies are available for your website and online shops.
5. Can our logo be added to the compact thermostatic mixing valve body?
We offer custom logo marking on the body and knobs of our compact thermostatic mixing valves to support your branding, product categorization, OEM sales, and project-specific marking. We provide two proven options for different order sizes.
Laser Engraving: Using fiber laser machines, we etch logos, brand names, and model numbers on valve bodies and knobs. Markings feature crisp edges with a uniform depth of 0.03–0.05mm, causing no damage to the brass material. Batch position and size deviation are kept within ±0.1mm for a uniform look. This fast process will not delay delivery, and production starts right after design approval.
Die-Cast Embossing: We stamp logos directly onto valve bodies during casting, which works well for bulk and recurring orders. The minimum order quantity is 1,000 units, and mold production takes around 30 working days.
Send over your logo vector file. Our team will finish the layout review and send samples out within 24 hours. We’ve worked on thousands of logo embossing jobs on curved valve surfaces, so the marking stays clear. We won’t start mass production until you sign off on the samples. All custom valves carry CE, ACS, and other European certifications. Every order is shipped with complete material reports and test documents to get through customs and third-party inspections without trouble. We’ve offered this custom logo service to clients in 26 European countries for years, and relevant qualification paperwork is always kept up to date.
6. How do you manage color-coding for different international markets?
We use a standardized color-coding system on handles, indicator rings, and scales to distinguish product specs, preset temperatures, and target regions. We follow regional color rules for Europe, Southeast Asia, Australia, and the Middle East:
- Europe: Designed in accordance with EN1111 thermostatic mixer valve requirements. Blue and red markings clearly indicate cold and hot water inlets.
- Southeast Asia & Australia: Keeps the standard blue and red for cold and hot water. High-temperature marks are simplified to light grey scales. Custom yellow rings are also available for exclusive branding.
- Middle East: We use distinct color coding on the valves. Dark blue marks cold water ports and bright red marks hot water. The black control knobs are fitted with white scales, which remain easy to read even under direct strong sunlight. This design works well for outdoor and commercial installation scenarios.
