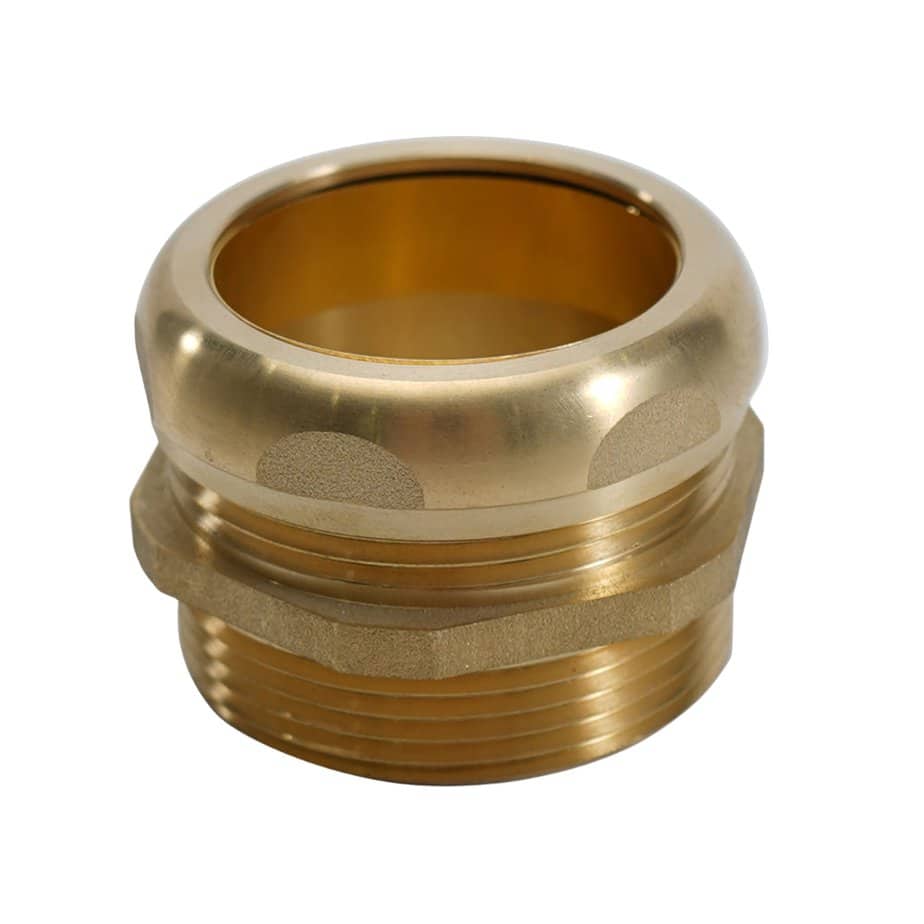

Brass Trap Connector
This brass trap connector is a pipe part that links sink traps to drain pipes, it’s a sleeve piece with threads on both the inside and outside, one side locks onto the trap and the other fits drain pipe ends tightly, it connects traps to drain branches so no water leaks out, this also keeps bad sewer gas from floating back up into your room, it works great for drains under bathroom sinks, kitchen equipment and other similar plumbing fixtures.
|
|
|
Brass Male Y-Strainer This brass male Y-strainer is a specialized filtration fitting designed to remove impurities from media in piping systems. Featuring a Y-shaped structure, it has a male-threaded port on one end for pipeline connection and a female-threaded port on the other. A detachable cap with a built-in filter screen is fitted on the top. As the medium flows through the strainer, contaminants are trapped by the filter screen. For maintenance, simply remove the cap to clean or replace the screen easily. It is ideal for use in a wide range of piping systems that require impurity filtration.
|
|
|

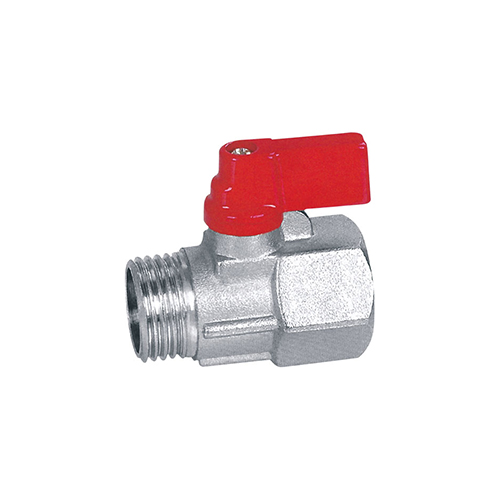

Nickel Plated Brass Mini Ball Valve
This small nickel-plated brass ball valve turns water or air flow on and off for thin pipes. It’s tiny with outer screw threads on one side and inner threads on the other. You can use it to control small water drains, air tubes, and liquid pressure lines, and it fits really well in tiny, cramped spots where there’s not much room for big valves.
|
|
|

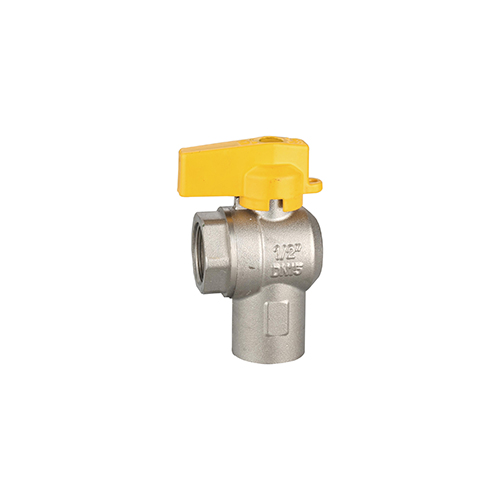

Brass Gas Angle Ball Valve
This brass gas angle ball valve is used for controlling gas flow and changing the direction of gas in piping systems. It has a 90° angle design and a yellow handle for quick on-off operation. The angled structure enables the gas pipeline to turn at a corner while the valve simultaneously controls the gas flow. It is commonly used in residential and commercial gas installations where space is limited or pipe direction needs to change.
|
|
|

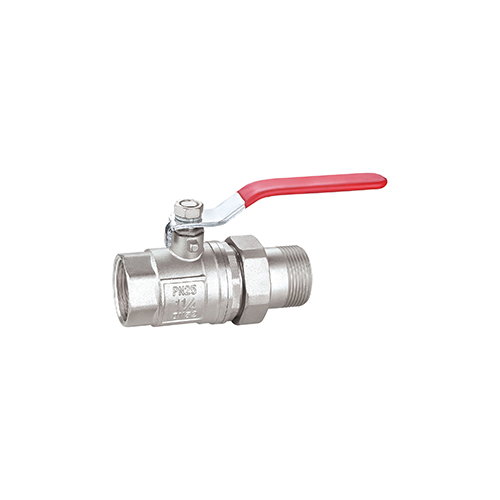

1/2″ Ball Valve with union threaded connection This union-threaded ball valve is used to turn pipeline flow on and off and is designed for easy removal and maintenance. It has threaded connections on both ends and a union joint built into the middle of the valve body, which allows the valve to be taken out without removing the whole pipe. The extended red handle on top makes opening and closing simple and direct. Thanks to the union design, routine repair or replacement can be done quickly, reducing maintenance time and effort.
|
Brass Tubular Flanged Tailpiece
Brass Tubular Flanged Tailpiece

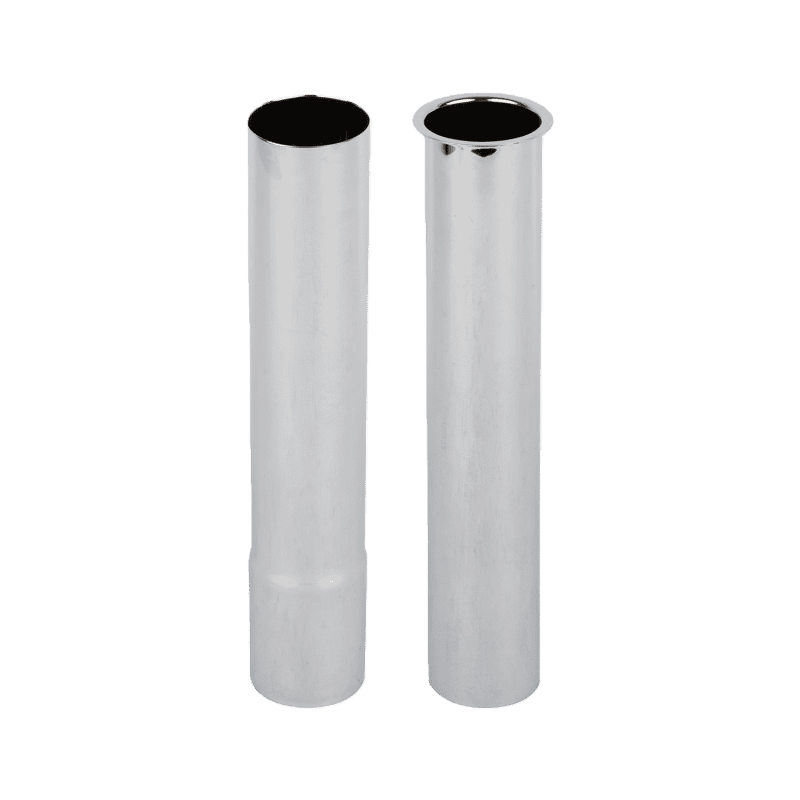

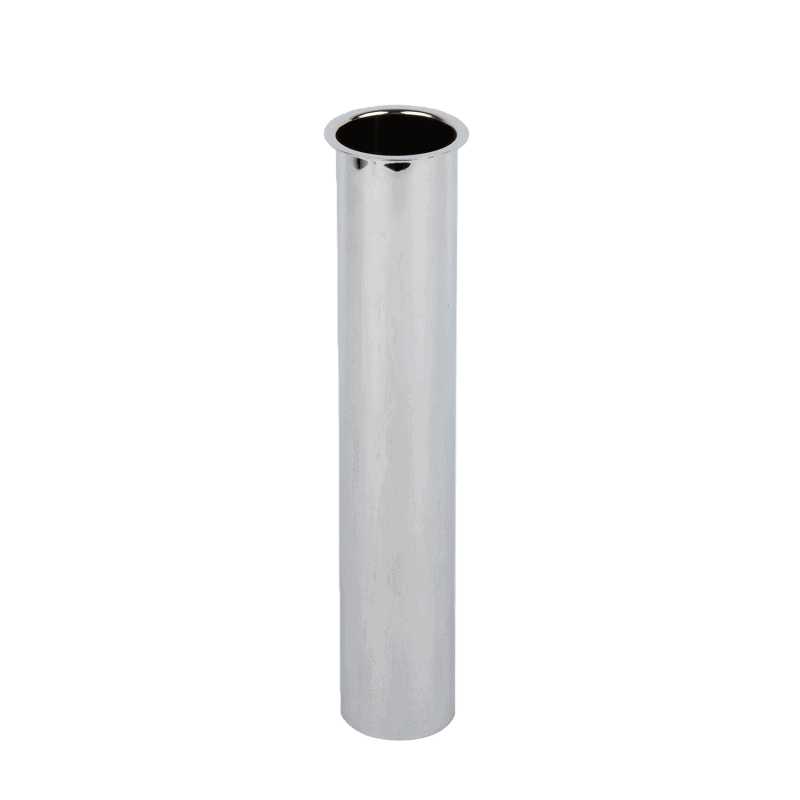

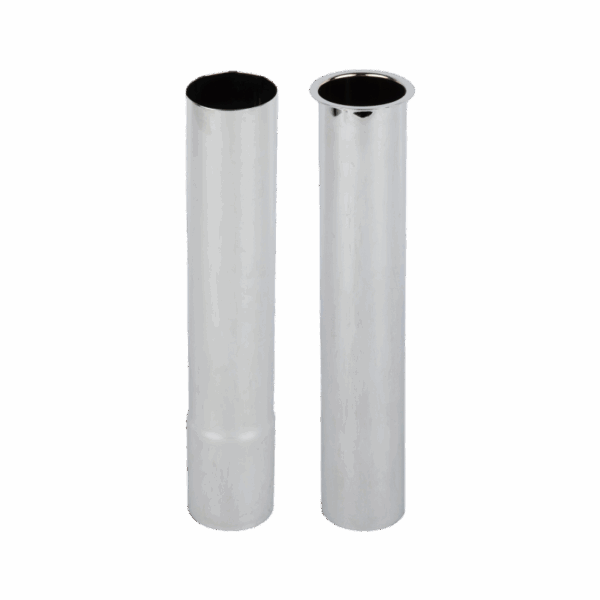

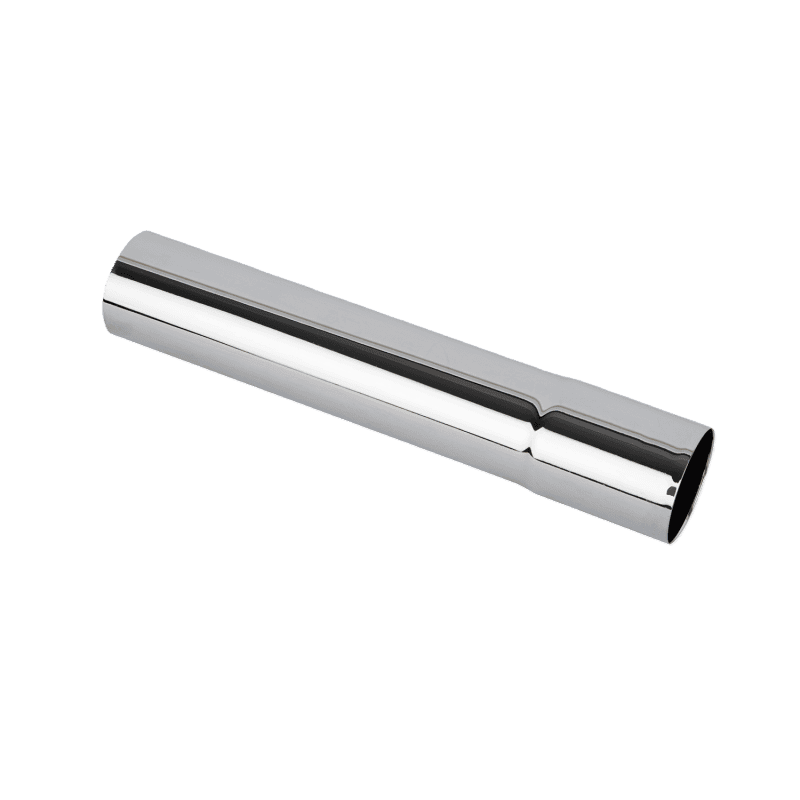

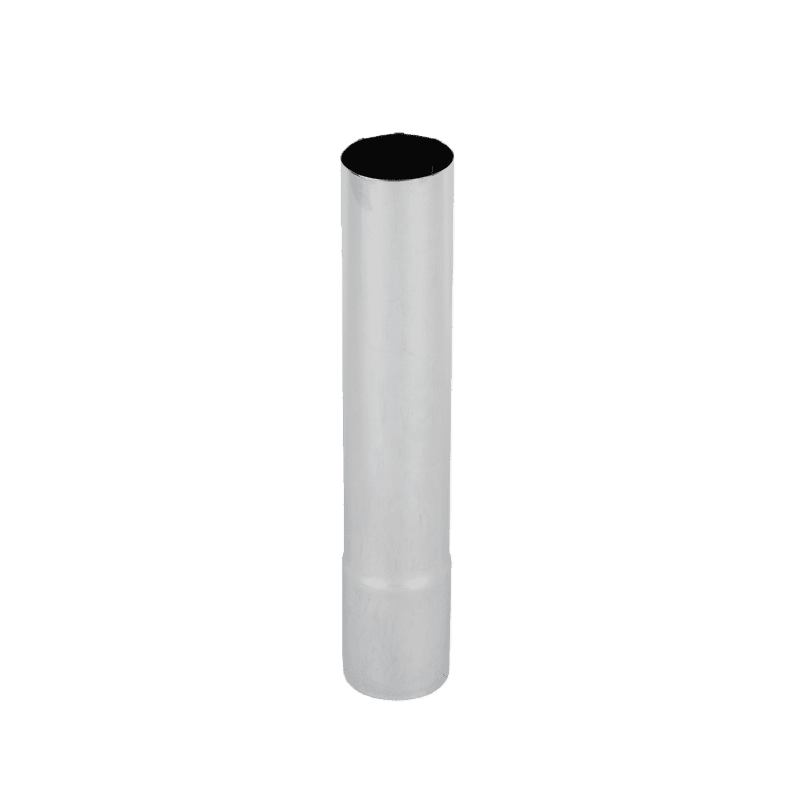

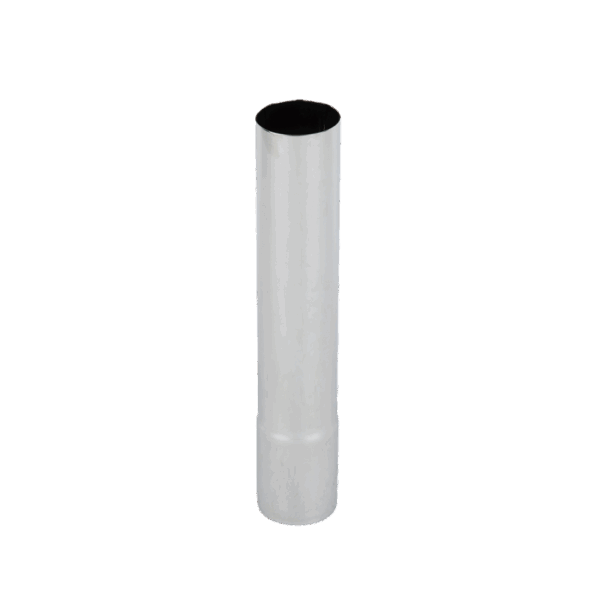

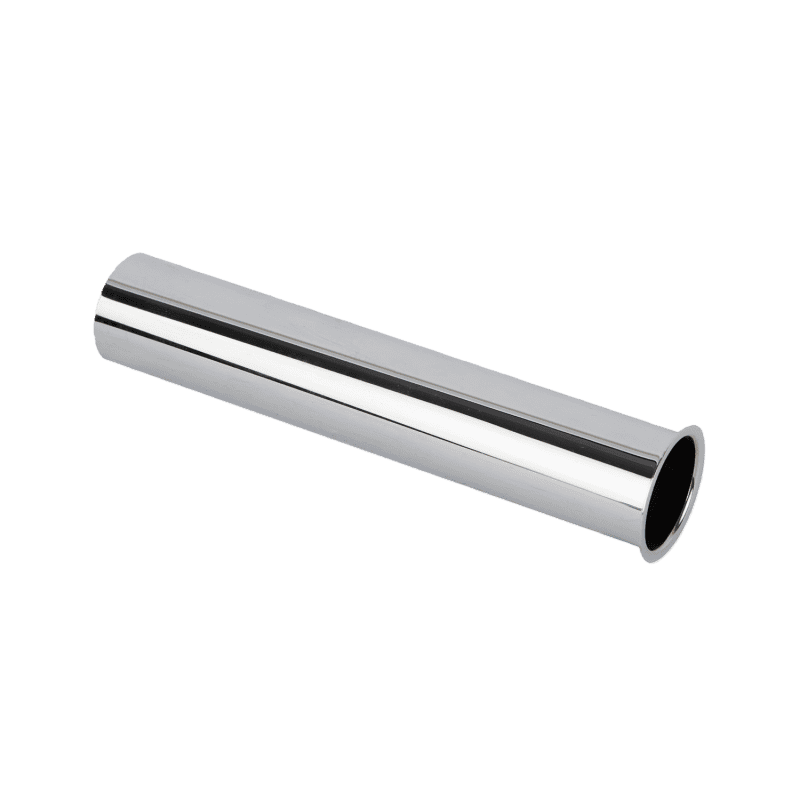

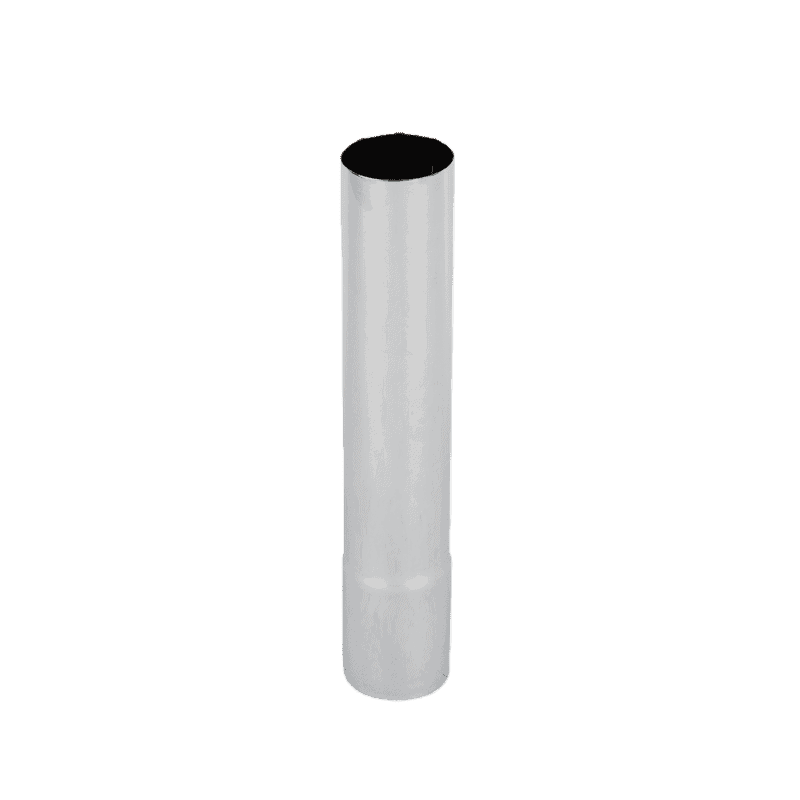

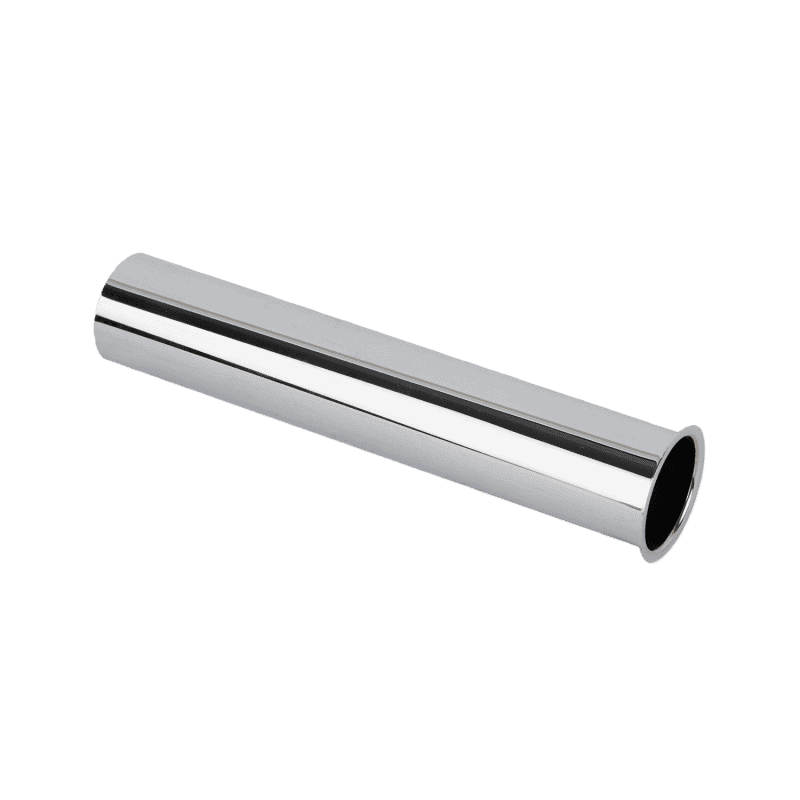

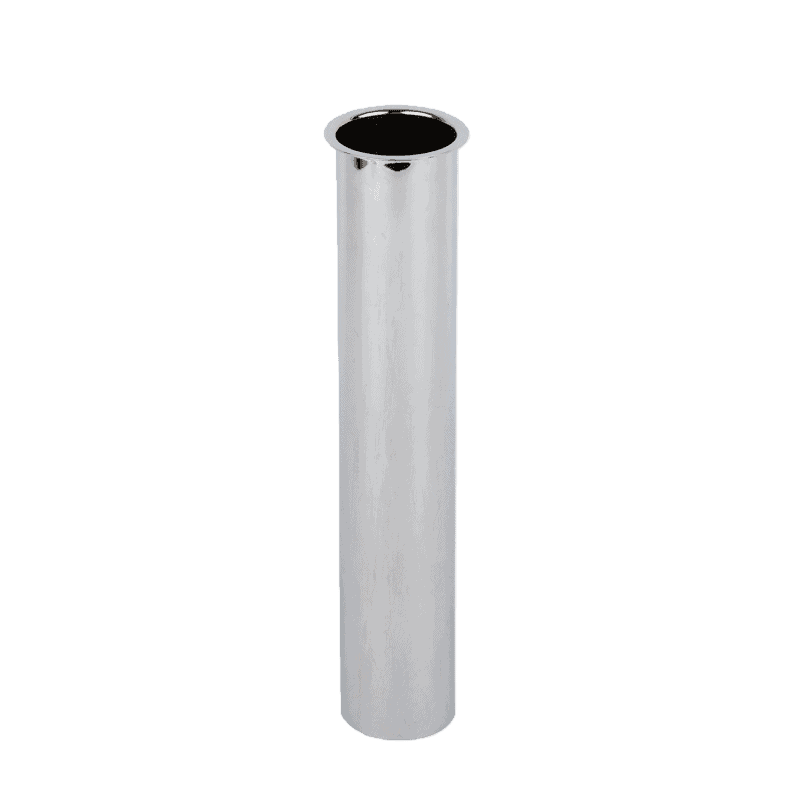

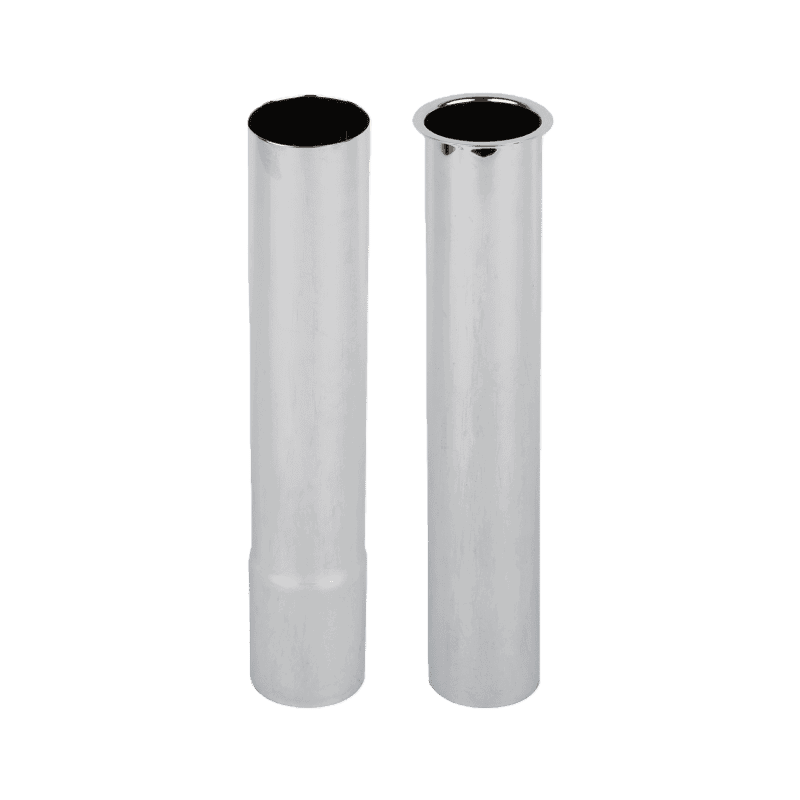

1-1/2″ X 8″ Chrome Plated Tailpiece Flanged
This chrome-plated flanged tailpiece is used to connect or extend the end of a pipeline. It has a straight tube shape, with a flange on one end for secure connection to fixtures or equipment. It is commonly used at the end of water supply or drainage lines, such as those for washbasins, bathtubs, or small appliances. Simple in structure and easy to install, it is a practical fitting for finishing pipeline connections.
- Model No.: JX-10077
- Size: 1-1/2 ” x 8 “
- Length: 8″
- Material: Brass and stainless steel
- Finishing: Chrome-plated
- Used in hot and cold potable water systems
- Connection Type: Flanged end to strainer, slip-fit, or compression on opposite end
- Gauge: 17 GA
- Kind: Sewer Pipe
- Odour Proof
- Connect with Bottom of Strainer
- With a 2-year Warranty
1. What main purposes does the brass tubular flange connection serve?
This tubular flange connector is built from chrome-plated brass with 17 GA material. It works on plumbing systems for both hot and cold drinking water. The flanged end attaches right to the base of strainers, and the opposite end accepts slip-fit or compression pipe connections. The flange spreads tightening force evenly, creating a much tighter seal than standard threaded joints when tap water flows through the pipes.
This fitting comes in the specification of 1-1/2″ × 8″. It can extend pipeline routes or change pipe orientation to adapt to complex on-site installation arrangements. The structure features odour-proof properties, blocking gas backflow inside the pipeline. When assembled with quality gaskets, the flange joint maintains reliable sealing under sustained working pressure up to 8 bar.
One major advantage of this flange connection is convenient disassembly for inspection and servicing. It creates a stable link between strainers, taps and other sanitary plumbing components. Thanks to its brass and stainless steel composite structure, it resists daily corrosion, and holds consistent performance under long-term operation of drinking water pipelines.
From The Building Expert
2. How to verify the authenticity of the brass tubular flange connection materials?
You can check the material authenticity of our brass tubular flange fittings through multiple practical methods. Each fitting has permanent brand and specification markings made by casting or laser engraving. The engraving depth reaches no less than 0.2 mm, so these marks won’t fade away even after 2 years of regular installation and water flow contact.
All shipments include complete papers like material certificates and factory test reports, each assigned a unique batch number. Every batch code covers no more than 5,000 finished items. Labels on outer cartons and inner bags display sizes, material details and production dates. All printed information matches the actual fittings and supporting documents perfectly.
In cases where third-party testing verifies material inconsistency against contractual specifications, we shall bear all testing charges, transportation expenses and associated consequential losses. For our established long-term partners, we are capable of securing fixed raw material specifications and allocating exclusive dedicated production lots.
3. Can the wall thickness of brass tubular flanged tailpieces be customized?
Yes, we can adjust the wall thickness of these brass flanged tailpieces according to your project’s working conditions. We offer custom wall thickness options starting from 0.8mm up to 3.0mm. We can also produce extra heavy-duty variants reaching 5.0mm for projects with strict operating demands.
Opt for wall thickness from 0.8mm to 1.2mm for plumbing setups that operate under low pressure. Thicker tubing makes the fitting stronger, so it can handle greater internal water pressure during long-running use.
We are also able to use different thickness values for the flange section and the tubular body separately. All custom machining keeps proper sealing performance. Just share your target pressure rating and installation environment, and we can confirm suitable wall thickness solutions for your plumbing layout.
4. Why source brass tubular flanged tailpieces directly from manufacturers?
You can cut out middlemen by purchasing these flanged tailpieces directly from our factory. Distributors and traders normally add 10% to 20% extra on prices. Buying straight from us removes these added costs. You will receive tiered pricing on larger orders, so the cost for each piece drops as you increase your order quantity.
Working with the original manufacturer brings far more flexibility for custom requirements. Resellers mostly carry fixed standard products and cannot easily adjust specifications. Our workshop allows modifications including wall thickness, flange hole layout, pipe length and thread standards such as NPT, BSPP and BSPT to match your exact plumbing layout.
Direct factory cooperation also eases your inventory planning. You won’t be forced to purchase excess stock just to satisfy strict minimum order limits. This reduces funds locked in stored goods and warehouse expenses. We arrange production according to your actual schedule, deliver customized fittings and provide consistent quality control for every batch of brass flanged tailpieces.
5. Can you provide a sample for the brass tubular flanged tailpiece?
We can provide samples of brass tubular flanged tailpieces for different uses. You can carry out performance tests, verify fitting compatibility, finish project inspections, set up exhibition displays and confirm specifications together with your clients. Standard samples of widely used sizes are ready, allowing you to test how well they match your current plumbing equipment.
We keep standard samples on hand for common lengths, diameters, flange measurements and end connection types. If your project requires special sizes, unique structures or custom threads, we can create custom samples using your technical drawings or physical reference parts. All samples follow the same production standards as bulk orders. This means there will be no unexpected differences once mass production gets underway.
Send us your full specs and working environment details, or feel free to share technical drawings and sample parts. Our technicians will check what can be done and tell you the sample production timeline and fees shortly after your request arrives. After all requirements are agreed upon, we usually send samples within 3 working days. Standard sample requests can be shipped in just 48 hours once confirmed.
6. Can the design of the brass tubular flanged tailpiece be optimized for specific markets?
We can adjust and refine these brass tubular flanged tailpieces to fit your target market’s requirements. Our factory runs independent product design and mould development. We tailor each product based on local plumbing habits, official pipeline standards, certification demands, working environments and budget limits. Each optimized design shortens your market entry cycle by roughly 30% compared to using generic standard fittings.
Plumbing codes and connection styles vary greatly from region to region. Our fittings built for Europe follow EN standards and come with G/BSP threads. Variants developed for North America adopt NPT threads and fit copper, PVC or PPR piping, and can gain NSF and UPC certification. For the Middle East and Southeast Asian markets, we enhance corrosion resistance. This allows the fittings to run reliably in regions where temperatures exceed 35°C and water contains high mineral content.
Customised structural adjustments improve compatibility and cut on-site installation troubles. We adjust thread forms, flange layouts and connection measurements to comply with local standards. This helps your products pass regional inspections without hassle. Items optimized for target markets will outperform generic alternatives and strengthen your competitive edge.
