Brass Ball Valve with Union Nut
Brass Ball Valve with Union Nut

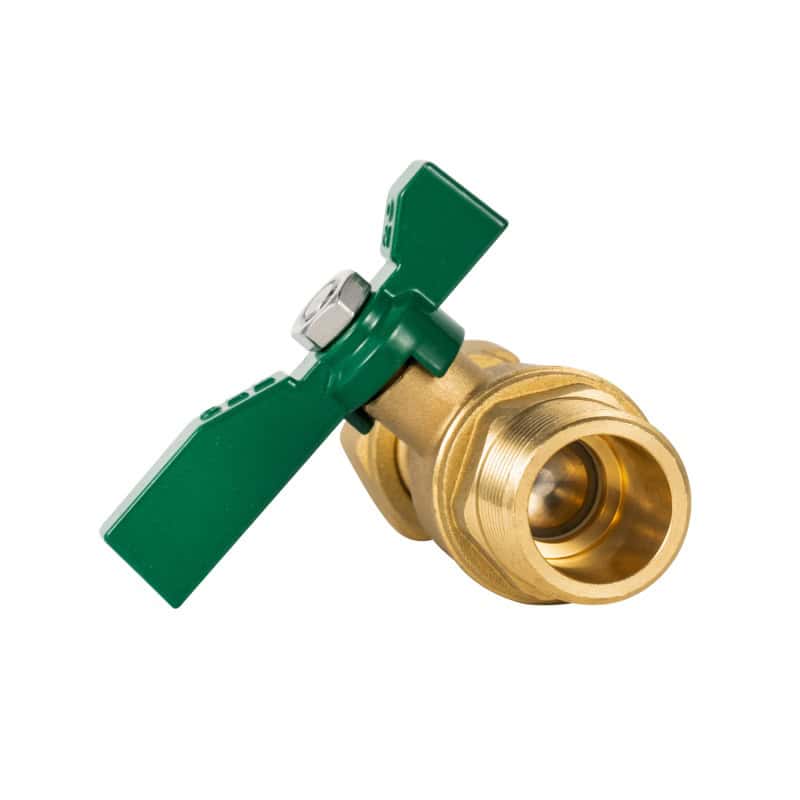

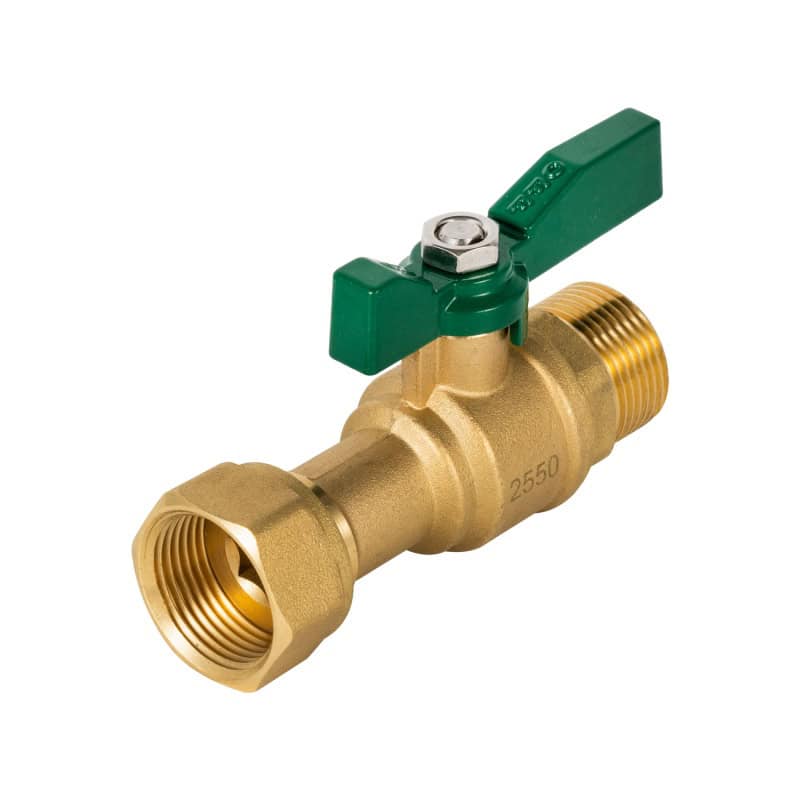

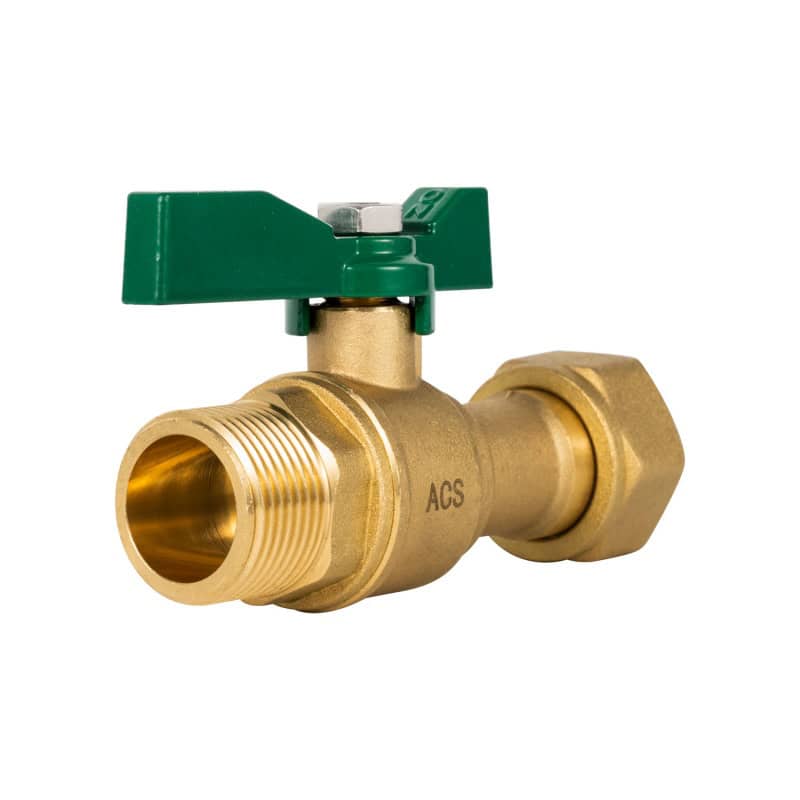

This ball valve is built with a union connection. which facilitates easy pipeline coupling as well as convenient maintenance, disassembly, and replacement in later use. It comes with a long butterfly‑style handle for rapid 90‑degree opening and closing. Featuring a female‑threaded union on one end and an external thread on the other. It boasts strong versatility and is compatible with common household water pipes, radiators, gas pipelines, and water heater pipelines.
- Model No.: JX-10109
- Size: 3/4MF Union
- Material: CW511L and CW510L, CW617N
- Handle: Aluminum butterfly handle with green epoxy painting
- Finishing: Sand blasted
- Connection: BSP, NPT

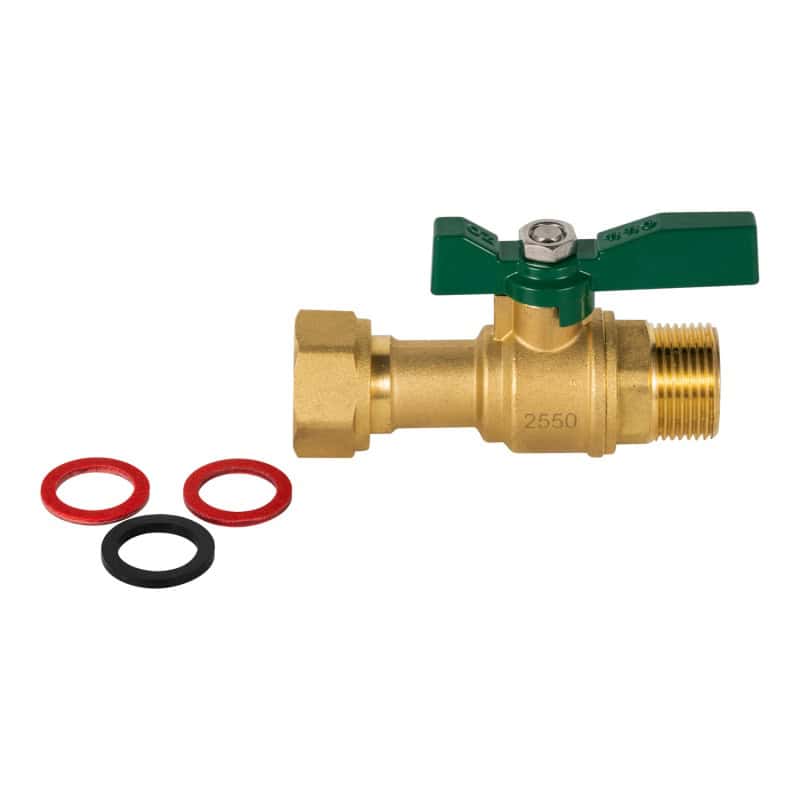

- With free nut
- Union material: Brass
- Temperature range: -10-120 °C
- Max working pressure: 20bar
- Seal material: PTFE, EPDM
- O-ring material: Rubber
- Suitable for use in water supply and distribution networks
- Application: Heating System
- OEM and Custom are available
- Certificated; ACS,CE
- Free samples
- Free inspection report
1. Does the ball valve’s union design stop gasket extrusion under high pressure?
Plumberstar brass ball valve with union nuts has an optimized connection structure.
We use a double limit design for the union joint. A precision groove on the male end holds the gasket firmly, with tolerance controlled within ±0.08mm to prevent sideways movement. The union nut features reinforced locking threads. When tightened, the joint fits tightly with no gaps.
Every valve passes strict pressure tests. It holds 2.0MPa for 300 seconds, and the gasket stays intact. We also run overload tests at 2.2MPa. After 500 cycles of switching and pressure pulsing, the gasket shows no extrusion, offset, or damage.
2. Can we order this brass ball valve with different end connections?
Absolutely. You can customize the end connections of our Plumberstar brass ball valve freely. Our regular stock comes with one union end paired with a female thread end, but we’re able to switch up the ends per your project needs. Popular custom options include dual union ends, union plus male thread, as well as an elbow variant with union and male thread.
On thread specs, we cover mainstream global threads: NPT, BSPP(G), and BSPT. All threads are CNC machined to standard dimensions for a tight fit and reliable sealing. No matter how you adjust the end connection layout, the valve body, internal ball, and sealing components remain unchanged, so its pressure performance won’t be affected at all.
We accept mixed connection specs within a single bulk order.
3. How to ensure consistency for bulk brass ball valve with union nut orders?
We maintain strict consistency across every bulk order of our brass ball valves with union nuts. From raw material sourcing to production and testing.
We use the same lead-free brass blanks for one-time bulk orders, with all incoming materials tested for composition and hardness to avoid batch-to-batch variations. Dedicated components are used and stored properly throughout production. Automated CNC equipment, fixed molds, and locked machining parameters ensure every valve body, union, and nut is made to precise specs. Our technicians recheck equipment every four hours to prevent drift, and every valve undergoes 100% union trial assembly to guarantee a consistent fit and feel.
For repeat orders, we keep all original molds, process parameters, and supply chain records.
4. Can you provide a sample of the brass ball valve with a union nut?
Yes, Plumberstar can send you samples of our brass ball valves with union nuts.
We offer single‑size samples or mixed‑spec samples of union ball valves. They come in different bore sizes and thread types such as NPT, BSPP, and BSPT. You can pick whatever sizes you need.
All samples are taken directly from normal mass‑production batches. They use the same brass materials, production steps, sealing parts, and production standards as bulk orders. Every sample passes 100% water pressure and air-tightness tests. We usually send small sample orders by courier. Shipping cost can be discussed between us. After you receive the samples, you can run pressure tests, try installation, and check material quality.
Once you confirm the samples are acceptable, we start bulk production right away. We make sure all bulk goods match the sample quality perfectly.
5. Can you customize the brass ball valve with a union according to our drawing?
Yes, we offer full custom service for brass ball valves with union nuts per your drawings. We can adjust the union structure, bore size, threads, body length, sealing design, and appearance. Our in-house R&D, mold workshop, and CNC machines deliver precise non-standard products.
Our engineers review drawings, check feasibility, and run performance calculations within 24 hours. We will suggest improvements for potential structural or sealing issues early on, to prevent production failures and extra expenses.
Our workflow is simple: drawing confirmation, sample approval, and mass production. Every custom valve is fully tested. We supply material reports, pressure test certificates, and compliance documents for customs and project inspections. We also sign NDAs to protect your designs.
