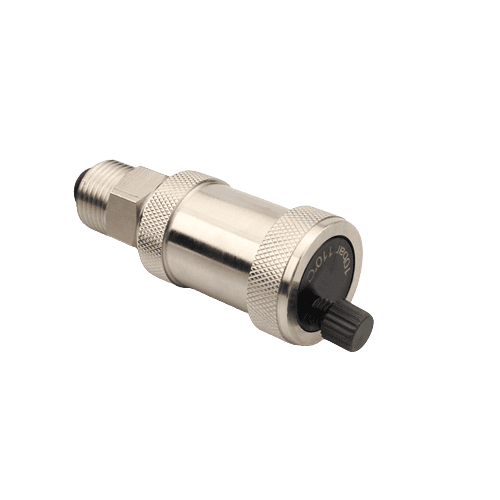

Manual Air Vent Valve
The Manual Air Vent Valve is equipped with a rotary handwheel switch. It can accurately discharge the accumulated air in the pipeline by manually turning the valve. It has excellent sealing performance and no leakage after closing. It is compatible with various specifications of heating and water supply pipeline interfaces. This product is widely used in household heating systems, small boiler pipelines, central air conditioning, water circulation branches, and other scenarios. It is suitable for small pipeline systems that require fixed-point and on-demand air exhaust.
|
|
|
Automatic Float Ball Exhaust Valve
The Automatic float ball exhaust valve is made using integral casting. Its core float ball linkage mechanism can automatically adjust opening and closing according to the amount of air in the pipeline. When air accumulates in the pipeline, the valve will automatically open to exhaust air. After the air is completely exhausted, the float ball rises to close the valve. No manual monitoring is required throughout the process. It is applied in closed-loop pipelines such as heating systems, central air-conditioning, water circulation systems, boilers, and heat pump pipelines. It can eliminate air blockages, prevent water pump idling, and improve the heat exchange efficiency of the system.
|
|
|
Automatic Air-vent Valve with Side Connection
Automatic Air-vent Valve with Side Connection features a side-mounted interface design, which is compatible with more pipeline installation layouts. It saves space and enables convenient connection. The built-in float-driven mechanism can automatically sense the accumulation of air in the pipeline. It can prevent the backflow of external air. It is suitable for scenarios where the installation space is limited or the pipeline direction is special. It is a practical accessory for the efficient operation of the system, avoiding air blockage and idling of water pumps.
|
|
|

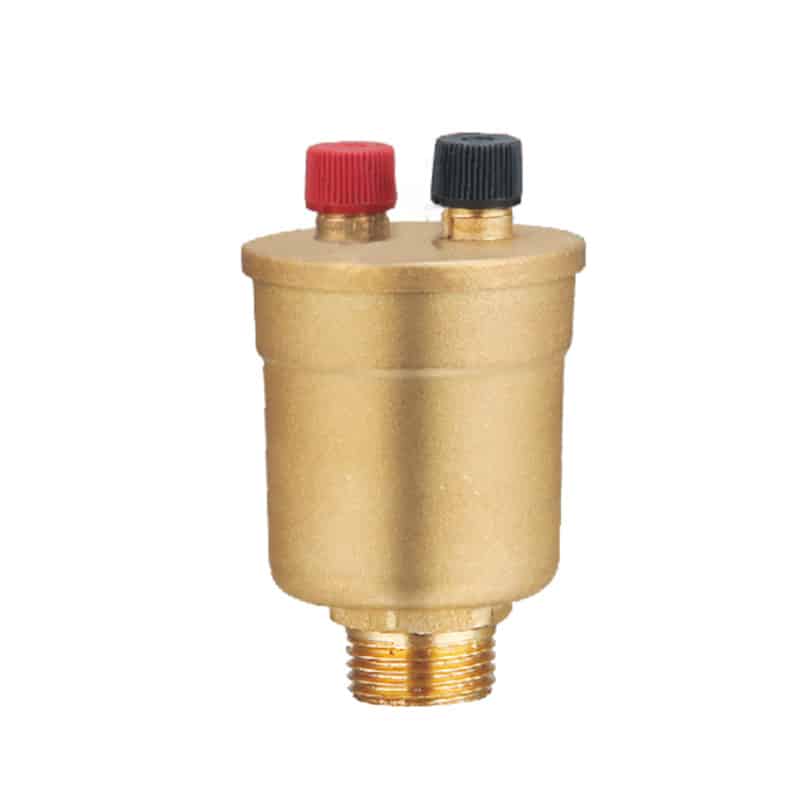

Automatic Dual Air Vent Valve
The Automatic Dual Air Vent Valve is designed with dual exhaust ports. It can quickly discharge a large amount of air and a small amount of trapped air in the pipeline at the same time. The exhaust efficiency is more than doubled compared to single-port exhaust valves. The built-in float linkage mechanism enables fully automatic opening and closing. It has a negative-pressure anti-backflow function. This product is widely used in large-flow closed-loop pipelines.
|
|
|
Automatic Exhaust Valve for Water Heater
The Automatic Exhaust Valve for Water Heater can withstand high temperatures. And a high-pressure environment when the water heater is working. Its built-in float-type exhaust structure can automatically discharge the air generated during the heating process in the water tank and pipelines. It prevents problems such as poor hot water supply and local overheating of the water tank caused by air blockage. It can prevent water backflow.
|
|
|
Automatic Exhaust Valve with Shut-off Function
The Automatic exhaust valve with shut-off function can automatically discharge the air in the pipeline when the system is running, without manual operation. It can automatically close after exhausting to prevent water leakage. It can be customized with a manual shut-off device. It is convenient to directly close the valve during maintenance or replacement without affecting the operation of the system. This product is commonly used in heating systems, floor heating, hot water systems, and pipeline equipment. It can reduce pipeline noise, avoid air blockage, and improve the stability and efficiency of system operation.
|

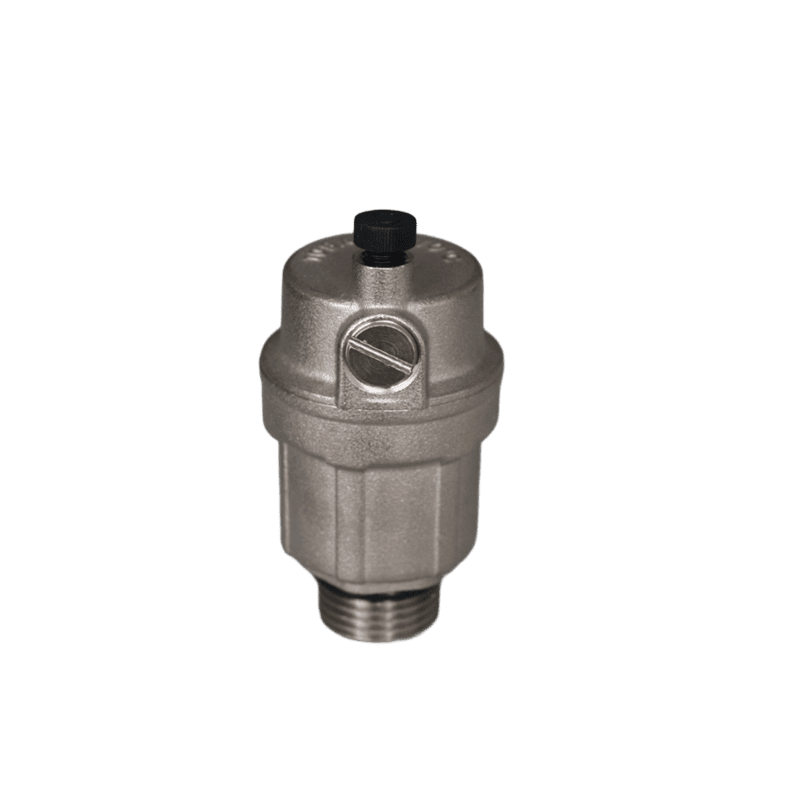

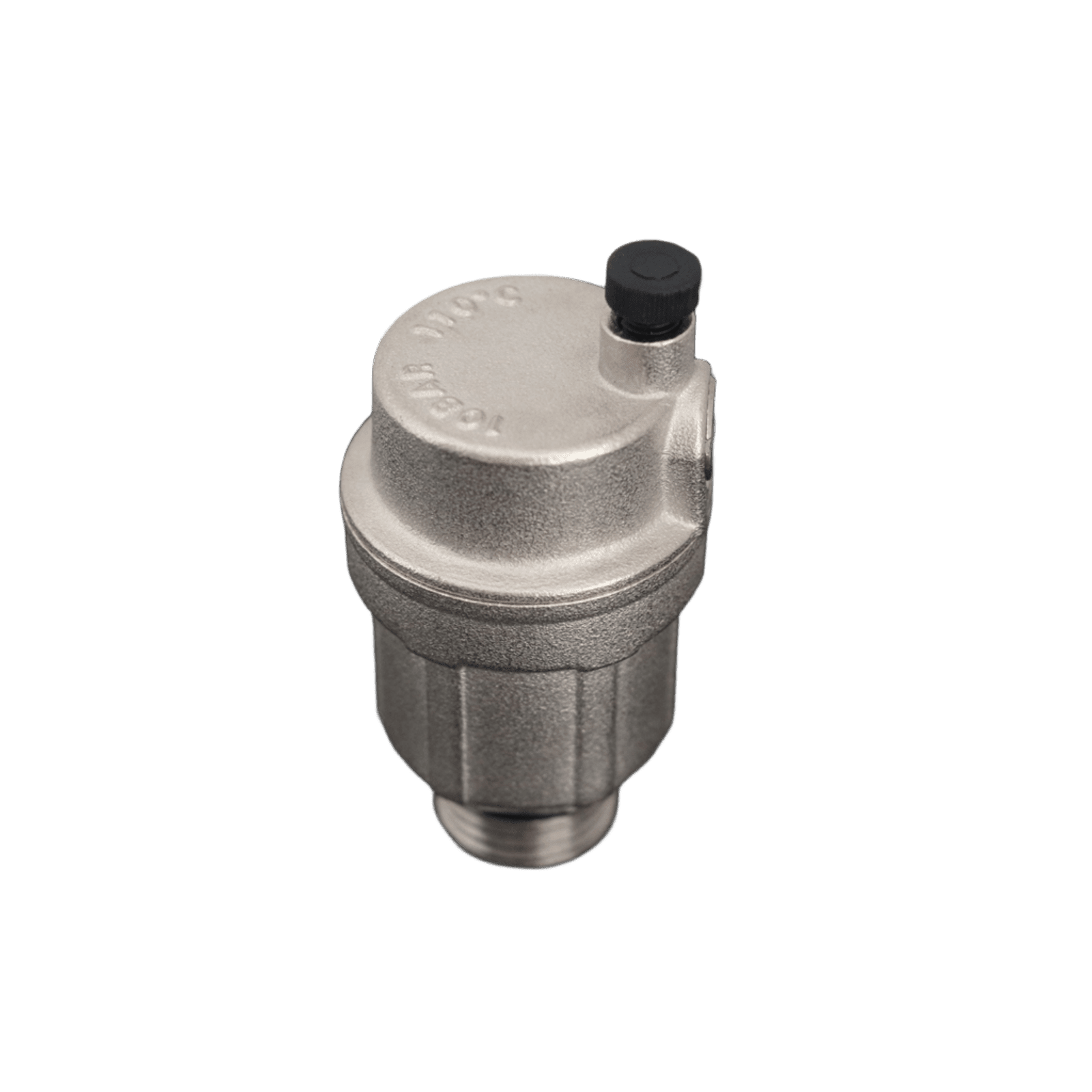

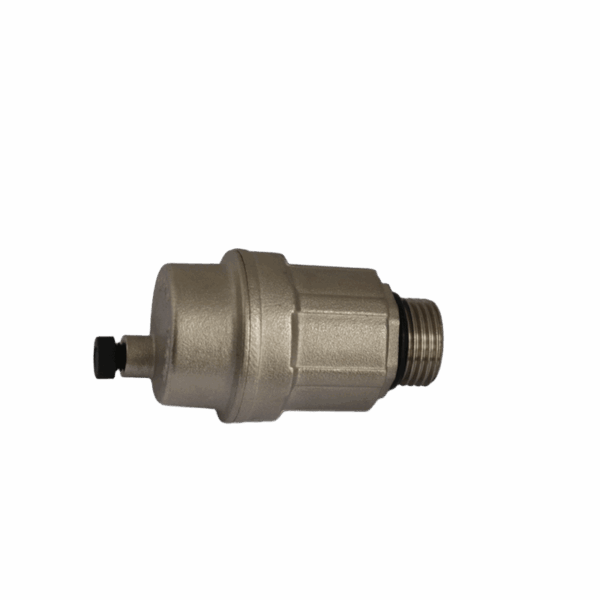

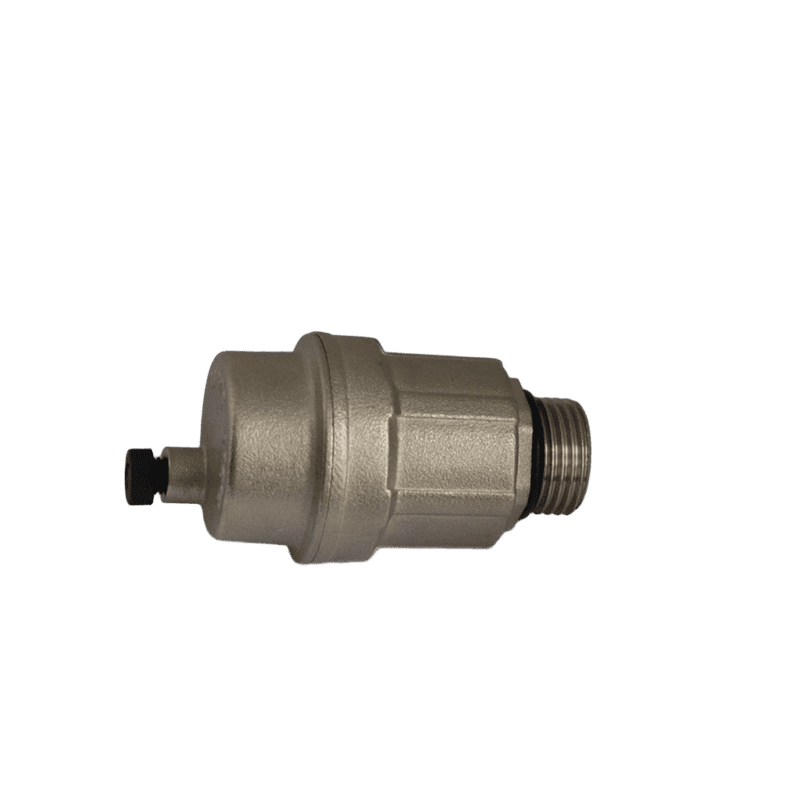

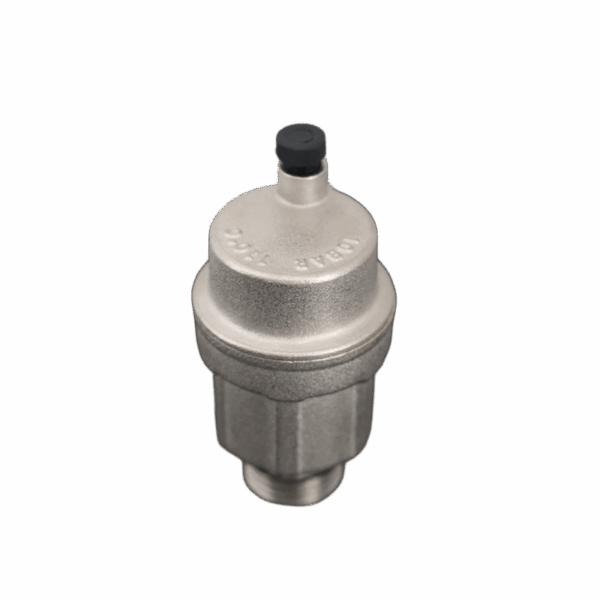

Brass Automatic Exhaust Valve
Brass Automatic Exhaust Valve
The built-in float-type automatic exhaust structure of the Brass automatic exhaust valve can automatically discharge the accumulated air in the pipeline during the operation of the system. No manual operation is required. It can avoid problems such as uneven heating and idling of water pumps caused by air blockage. It has a negative-pressure automatic closing function to prevent backflow of external air. This product is widely used in closed circulation pipelines such as heating systems, central air-conditioning water circulation systems, and boiler pipelines. It is a key accessory to ensure efficient, stable, and energy-saving operation of pipeline systems.
- Model No.: JX-10044
- Size: 1/2″
- Valve body material: Brass, CW617N
- Flow direction: Bidirectional
- Applicable medium: Water
- Standard: ISO9001, CE
- Maximum working pressure: 10 bar
- Drive mode: Hydraulic control
- Maximum temperature: 100 °C
- Connection mode: External thread
- Exhaust pressure: 3 bar
- Connection thread: ISO228
- Free sample
1. What material is the float of the Automatic Exhaust Valve made of?
The floats of our Plumberstar automatic air release valves are mainly made of SS304 or plastic. How to choose the material of the float can be based on the following information:
Stainless steel float: Good density and stability. Enable the air release valve to open and close sensitively, effectively discharging the air in the pipeline. Suitable for environments requiring high temperature and pressure resistance, such as hot water heating systems and steam systems.
Plastic float: Usually used in applications that are cost-sensitive or have specific requirements for chemical resistance. Common plastic float materials include polypropylene (PP), hollow plastic, and rigid foam polyurethane.
From AC Service Tech LLC
2. Do you have experience in manufacturing automatic air release valves for the European market?
Yes, we have over 20 years of experience in exporting automatic exhaust valves to the European market. We have a good understanding of the technical specifications, certification requirements, and market preferences of the European plumbing and HVAC industries, which has enabled our products to have an excellent track record in residential heating and commercial water supply projects in Germany, the United Kingdom, France, Italy, and Northern Europe.
The main compliance aspects of the Automatic Exhaust Valves we manufacture are as follows: Certifications: Compliant with CE, RoHS, and ISO 9001 standards. Design and Materials: Designed in accordance with European standards, our valves use stainless steel or PP floats. They can be applied in central heating systems. Quality Control: The factory conducts strict 100% pressure testing and leakage testing. This ensures that products meet EU performance standards before shipment.
3. Can the Automatic Exhaust Valve provide a factory inspection report and material certificates?
Yes! Plumberstar even provides factory inspection reports and material certificates for automatic air release valves free of charge.
The factory inspection report includes 100% of the test items for the products during the production process. It includes pressure resistance testing, tightness testing, exhaust efficiency testing, and dimensional accuracy inspection. All these tests are conducted in accordance with the ISO 9001 quality management standards and the requirements of the EU CE certification. The quality inspection report will cover the testing of raw materials before production. The testing of each step during the production process, and the final integrity testing before packaging. All these will be recorded in detail to ensure the traceability of quality.
Regarding material certificates, we will issue corresponding certificates based on the materials used in the products (such as PP floats). The certificates include material composition, performance indicators, and compliance with RoHS environmental protection standards. We will match the material certificates one-to-one with the batch numbers of the delivered goods.
4. What is the process for warranty claims for an Automatic Exhaust Valve?
If your automatic air vent valve fails after delivery or installation due to faulty raw materials or production flaws, please get your supporting evidence ready first. Please take clear photos and videos that show the product defects. Also, gather your order number and batch shipping documents. Our technical and QC teams will pull production records and factory pressure test data for that exact batch. We work out the root cause within 24 hours.
When we confirm that defects stem from manufacturing and are covered under warranty. We supply brand-new replacements free of charge, deduct the corresponding costs from your next order. For quality problems affecting large batches, our engineers can arrive at your site within 72 hours. Our skilled team will provide comprehensive targeted solutions within seven calendar days.
No agreed remedy will be implemented until both parties confirm everything in writing. If you request replacement goods, your order will receive priority in production, packaging, and shipment.
5. What is the standard for the machining accuracy of the Automatic Exhaust Valve?
The machining accuracy of Plumberstar automatic air release valves strictly complies with ISO 286 and DIN 323. Critical dimensions are controlled within the IT8–IT10 accuracy grade range.
- Brass valve body: The dimensional tolerance of the internal sealing cavity is controlled within ±0.05mm.
- Threaded interface: (The EU market adopts the G/BSP standard, and the US market adopts the NPT standard). It uses Class A thread accuracy, with a pitch error of ≤ 0.02mm. It can be directly matched with standard pipe fittings.
- Float assembly (PP): The roundness error of the float surface is ≤ 0.03mm. It can accurately respond to changes in air pressure in the pipeline. The fit tolerance between the float and the valve seat is H7/h6, ensuring the sensitivity of the exhaust and closing functions.
6. Can I visit your Automatic Exhaust Valve factory located in Taizhou, China?
Of course you can! Our factory is located in Taizhou City, Zhejiang Province, China, China, Zhejiang Province Qinggang Industrial Zone 7. We welcome customers to visit our factory.
During the tour, we will show you our finished goods warehouse and OEM/ODM capability showroom. Q & A sessions, on-site sample inspections, and product test demonstrations with our engineering and quality inspection teams, as well as discussions on custom requirements, MOQ, lead times, and logistics solutions for the European and American markets.
We welcome your visit. You can contact us on +86 576 8252 9985 or WhatsApp +86 159 6864 8802 to arrange your itinerary.
7. Do you offer fixed-price agreements for Automatic Exhaust Valves?
We offer fixed-price contracts on automatic air vent valves for long-term and high-volume customers. This applies to 6–12 month-long term agreements or big bulk orders. We lock in unit rates for the whole contract term on standard items, with no hidden charges. Even if brass, gasket raw materials, or labor costs see mild hikes during the contract term, your unit price won’t change.
