Many things must be known while picking the brass fittings. The correct brass fitting must be considered to determine whether it will work properly and, if yes, how long it will last. In this blog post, I’ll provide detailed guidance regarding choosing brass fittings.

What are Brass Fittings?

Brass fittings are components in plumbing systems that serve the purpose of connecting pipes and different types of fixtures. Basically, they connect, control, or divergently change the flow of fluids in any system. Since they stand firm against corrosion and are good conductors of heat, brass fittings are widely used in many plumbing systems, fuel lines, A/C units, and more.

Why choose Brass fittings?

Before choosing the brass fitting, it is important to know why brass fittings are commonly chosen. Some common reasons are described below:

• Corrosion Resistance: Brass reacts very little with water and other non-acidic things; therefore, it is used in plumbing and water systems.
• Hardness: Brass fittings are hard and durable, strong enough to bear high pressure and temperature differences.
• Versatility: It finds diverse applications in water, gas, and chemicals.
• Easy Installation: Brass is easy to machine and thread, making its installation easier than other materials.
• Cost Effectiveness: It is not the cheapest, but it is relatively of good value considering its life and performance.

Where do I use Brass fittings?

Before selecting, you must have to know the following few things:

• Where it will be used: in plumbing, gas, and HVAC.
• What is its purpose: connecting pipes or changing the direction of flow?
• What kind of substance will pass through it: for example, water, gas, or chemical?
• What environmental conditions will it face, such as pressure, temperature, and exposure to corrosive elements?

These things will help you choose the right brass fittings for safe and reliable use.

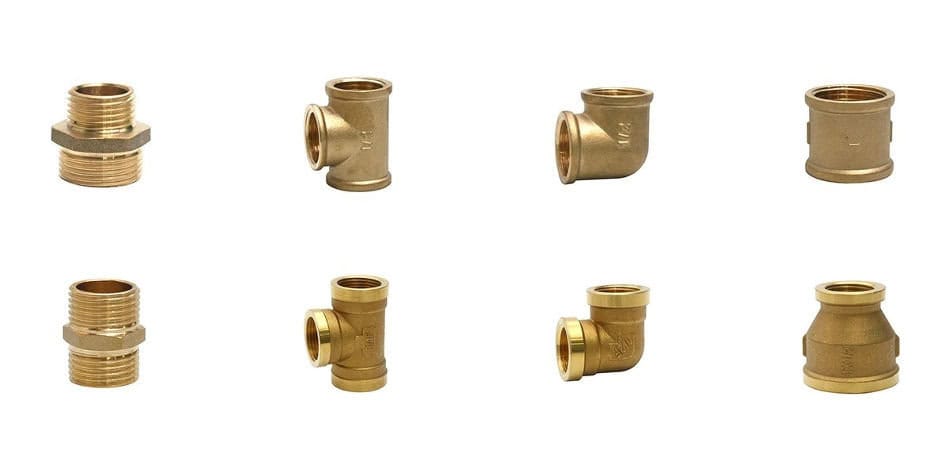

Types of Brass fittings:

Brass fittings come in different types. Each type is designed for its specific function. A few types of brass fittings are described below:

• Elbow: It changes the direction of the pipe or flow. It bends the pipe to 90 degrees and 45 degrees.

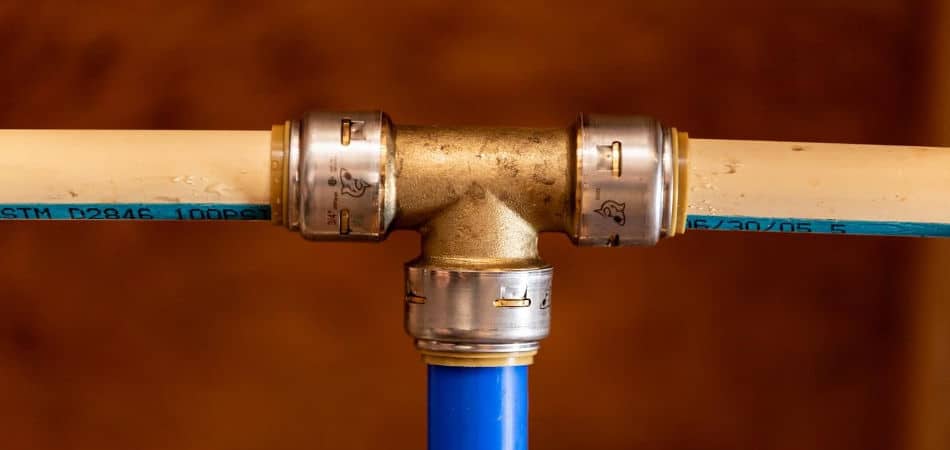

• Tees: It has a T shape. It creates a branch from the main pipe and divides the main pipe into two directions. It also combines two pipes into one.
• Compression: It connects the pipe by tightening a brass ring onto it. When you compress the materials, it creates a seal without requiring welding or soldering.
• Couplings: Connect two pipes of different sizes using couplings for fixing pipes. It is also used to extend the length of the pipes.
• Unions: It disconnects and reconnects two pipes quickly without cutting them.
• Reducers: These are used to connect pipes of different sizes. It reduces the diameter of the pipe and ensures a smooth flow between smaller and larger sections of the pipe.
• Adaptors connect the pipes and different fittings, sizes, and thread types. It is available in various designs.
• Bushings: This fitting is used to decrease the pipe size or fitting. One of the jobs in this kind of fitting would be to assist in changing the flow from a large pipe to a small pipe.
• Plugs and Caps: These are utilized to block or close the end of the pipe. On the other side, caps are like lids. It is used to cover the back and to stop the flow.

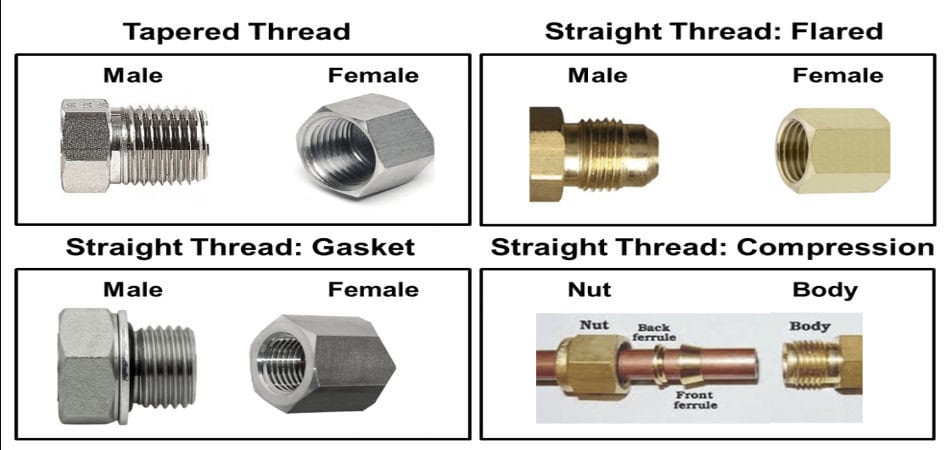

Types of thread:

Always choose the thread that is compatible with your fitting and system. The following are the common types of threads:

• NPT (National Pipe Thread):  It gives a tight seal as it gets tightened. It is mainly used in North America.
• BSP (British Pipe Thread): It is used in different sealings and connections. It is mainly used in Europe and Asia.
• MPT (Male Pipe Thread): It is used inside a fitting.
• FPT (Female Pipe Thread): It is used over the fittings.

Brass fittings with different pipes:

Brass fittings are used with different types of pipes. Like:

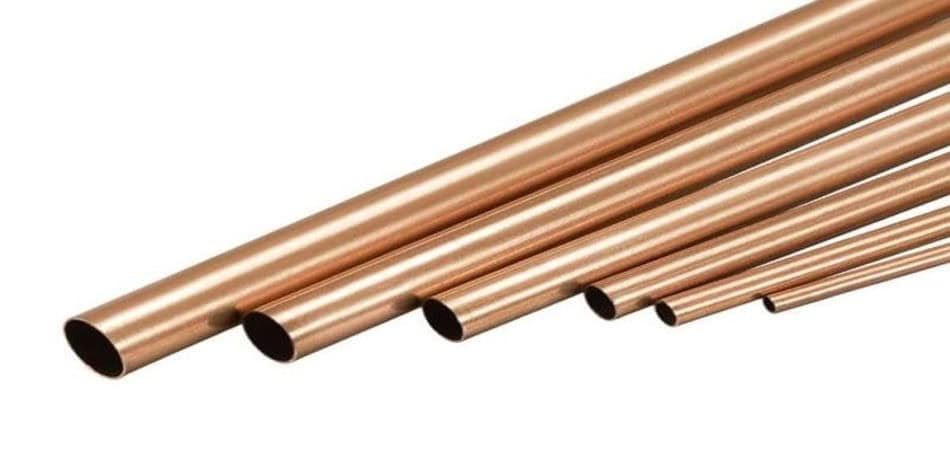

• Copper Pipes

Copper pipes can also be used with brass fittings as they do not rust. They attach to copper pipes by threaded or compression fittings.

• PVC and CPVC Pipes

Usually, brass fittings can be fitted into PVC and CPVC pipes using specific adapters. This happens in most water supply systems, thus allowing versatility in applications.

• Stainless Steel Pipes

Brass fittings can create connections with stainless steel pipes. It’s important to take precautions to avoid rusting.

• PEX Piping

Brass fittings match perfectly well with flexible PEX pipes using crimp rings or expansion fittings. This type of combination is commonly used in house plumbing because its installation is easy.

• Galvanized Steel Tubes

Galvanized steel pipes are often paired with brass fittings to prevent corrosion, where a dielectric union can be employed for added protection.

• Cast Iron Pipes

Brass fittings are applied with cast iron pipes and sealed with rubber gaskets. This system combines all the strength of the cast iron with the all-important reliability of brass.

You can easily get all types of pipes from Plumberstar because Plumberstar is a trustworthy Stainless steel pipe manufacturer, UPVC pipe fitting manufacturer, copper fitting manufacturer, and supplier in China and worldwide.

The material composition of brass fitting:

Brass is a metal made of Zinc and Copper. Due to different grades, brass fittings resist corrosion, are ductile, temperature and pressure resistant, and budget-friendly; this is what differs in different grades of brass fittings, like the metal content: Zinc varies from 5% to 45%, and copper varies from 55% to 95%. But brass fittings usually have about 67% copper and 33% zinc. As the amount of zinc and copper changes in brass fittings, so does the grade, properties, and price. So, it is essential to know what grade of brass you want or in which condition.

Size and Compatibility:

Getting the right-sized brass fittings is essential to your installation. Measurements should be accurate to ensure a perfect fit between the pipes and the fitting. Otherwise, if they are not of perfect sizes, there will be leaks, poor performance, and possibly even damage to your plumbing system.

Another important thing to consider is compatibility. Ensure the chosen fittings are compatible with the pipe sizes, thread types, and other plumbing system components.

For perfect size and compatibility, First, measure the outer diameter of your pipe with measuring tape or by using a Calliper. Then look at the reference book on plumbing for the size of the corresponding fitting as per pipe outer diameter and make sure the exact thread type you want. If you use a thicker wall pipe, select a large-sized fitting to accommodate the material.

Evaluate Pressure and Temperature Ratings:

Brass fittings have some ratings for pressure and temperature. This should be included in your specification if you need fittings for high pressure or high temperature. Check the manufacturer’s specifications at all times. If you want brass fitting for high temperatures and harsh chemical environments, choose brass fitting with higher copper content.

Choose the Appropriate Finish

Different finishes are available for brass fittings, depending on the purpose for which they are used. A few common finishes are described below:

• Un-plated Brass: It provides the look that brass has naturally. Therefore, it is good and therefore recommended for general use.
• Chrome Plated Brass adds another protective layer and a shiny mirror look. It is usually applied to finish flush installations.
• Plated Nickel Brass: It provides corrosion protection and is commonly used in chemical and marine conditions.

The kind of finish that would be used must match the environmental conditions where the fitting would be fitted.

Corrosion Resistance and Longevity:

One of the major reasons brass is preferred over other materials is its very developed resistance to corrosion, especially in wet environments. If the system involves harsh chemicals or saltwater exposure, ensure the brass alloy is suitable for such exposure.

Cost and Availability

Although the fittings are usually inexpensive, the price of brass fittings may differ depending on the type, size, and manufacturer. Compare prices from different suppliers, but do not compromise on quality. Fittings can be cheaper, but they can cost you through leaks and failures over time.

Consider the Ease of Installation and Maintenance

Some types of fittings are easier to install than others. For example, compression fittings are easier to deal with and do not require soldering or special tools. If your system needs frequent maintenance, then choose fittings that can easily be disconnected and connected again.

Compliance and Standards

Finally, ensure the brass fittings you have chosen must meet the industry standards and their respective certifications. Again, this is most important for systems carrying potable water, gas, or another sensitive application. Follow local plumbing codes and standards for safely and correctly performing installations. Compliance includes safety and reliability.

Consult Experts

If you still doubt which kind of fittings to use, consult a plumbing expert, contractor, or supplier. Plumberstar is the top brass fitting supplier in China.

They shall give you practical suggestions and help you avoid the common blunders when choosing among them. Consult with a licensed plumber like Plumberstar for professional guidance and advice.

Common Mistakes to Avoid When Choosing Brass Fittings

Here are some common mistakes that you must avoid while choosing brass fittings:

• Mismatched Sizes: Ensure the fittings and pipes are matched perfectly for the size to avoid leakages and bad performance.
• Not Checking Pressure Ratings: If the rating of the system’s pressure is not considered during fittings, it may cause leakage or even dangerous failures.
• Inattention to thread compatibility: Using fittings with threads that don’t match could lead to big issues, including leakage and failure to seal.
• Selection of low-quality, cheap fittings::When you get tempted by low-priced brass fittings, it can add wider expenses in the future through repairs and replacements to your cash.
• Ignoring Environmental Conditions: This would not consider environmental conditions like temperature, humidity, and exposure to many chemicals. This can be the major cause behind early wearing out.

Conclusion:

Choosing the right fit for brass fittings requires looking at the application, type of fitting, thread compatibility, material composition, and many more. Consult a plumber or plumbing supply store like Plumberstar for expert advice. Plumberstar is the top brass fitting manufacturer in China. Select fittings that will last and withstand the demands of your plumbing system. Ensure that the measurements are very accurate to avoid mismatches of the fittings. Look for fittings that adhere to industry standards and certifications. Understand your specific needs and options. So you can make informed decisions that lead to reliable and long-lasting connections.
