Check valves are important for fluid systems, allowing liquid to flow in one direction and stopping backflow. Among the numerous check valves available, people note the durability and reliability of brass ball valves. Understanding typical check valve problems and how to resolve them is critical for smooth system performance.

Check valve failure, which can happen due to bad maintenance, neglect, or misuse, among other reasons, when the valves malfunction or pipes, pumps, and well equipment are in danger.

Here, we will investigate check valve issues and prominent check valve manufacturers and provide troubleshooting tips.

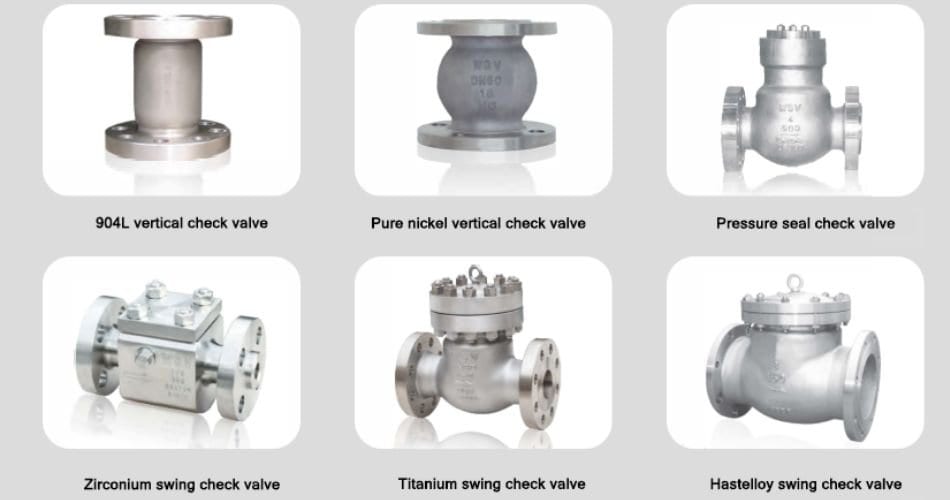

types of check valve
Types of check valve

Types of Check Valves:

Check valves come in various types. For example, Swing check valve, lift check valve, ball check valve, brass ball valve, brake booster check valve, PVC check valve, and vacuum check valve.

Effective troubleshooting requires an understanding of the function and design of all types of valves.

Understanding Check Valves and Their Importance:

Check valves, or non-return valves, are essential equipment for preventing backflow. Mainly, they prevent “backflow,” or fluids, from flowing in the other direction. The well might fill up again if the check valve malfunctions. They ensure it moves in only one direction, maintaining system efficiency and preventing potential damage.

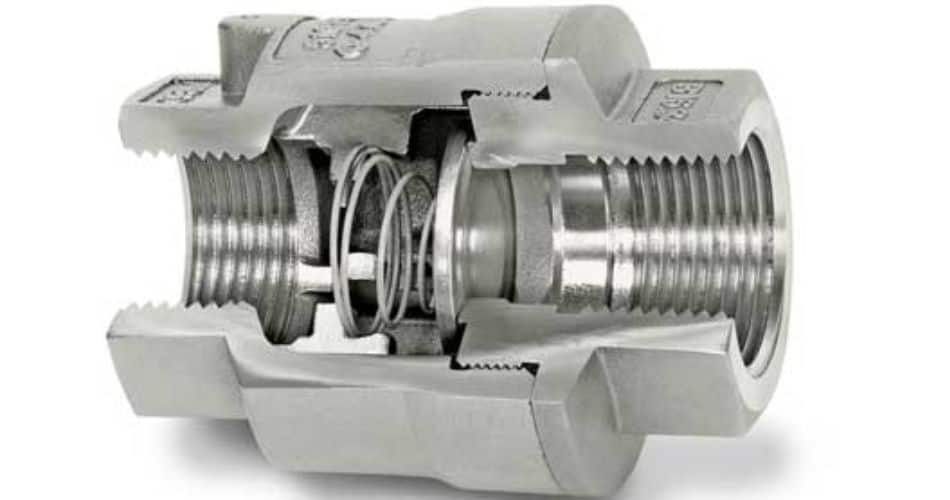

vertical spring check valve inside structure
Vertical spring check valve inside structure

Preventing Check Valve Failures

To reduce check valve failures, install carefully, monitor regularly for issues, and perform preventive maintenance.

Valve Manufacturers:

When dealing with check valve issues, choosing valves made by reputed valve manufacturers is serious. Below, we mention some of the most prestigious valve manufacturers and wholesalers.

1.     Valve Corp

It makes good valves, like brass ball valves, that reduce problems.

2.     Balancing Valve

How to check the pressure balancing valve. Their makers provide special valves to control flow and pressure, which can impact check valve performance.

3.     Water Valve Manufacturers

Water valve manufacturers make various water valves, including check valves. Choosing the proper valve for your unique application is critical to lowering the likelihood of complications.

How can you decrease the likelihood of check valves sticking?

In-Depth Look at Check Valve Testing and Maintenance

Reducing Chances of Stuck Check Valves:

Make sure all check valves are open and not stuck. A stuck performance may result in performance problems.

Picking the correct check valve and performing regular upkeep can lower the chance of this occurring.

Evacuation Procedure Verification of the Check Valve

Testing a Check Valve

It is important to find a broken check valve. This will help avoid issues and keep things running smoothly in suitable pumps, water heaters, and pool systems. Common symptoms of a malfunctioning check valve for a well pump are as follows:

  • Reduced water pressure
  • Cycling on and off often
  • A complete lack of water flow

Issues such as fluctuating water temperatures and excessive pressure in a water heater can indicate a broken check valve. Routine maintenance checks can help avoid a faulty check valve. To avoid system failure, check valves for leaks and seal them properly to catch problems early.

Symptoms of a Bad Check Valve

Recognizing the symptoms of a bad check valve is critical. These Symptoms include:

  • Reduced flow
  • Water hammer
  • System vibration

Releasing a Stuck Check Valve:

There are ways to release a jammed check valve, such as Tapping the valve body or Applying penetrating oil.

Check Valve Well Pump Troubleshooting:

Well-pump systems frequently use check valves. The troubleshooting process includes looking for leaks, obstructions, and electrical problems.

Check valves to ensure a system’s operation. Faulty check valves can cause backflow and water hammer.

Learn how to successfully troubleshoot and solve unusual problems with your sump pump check valve and compressor check valves in our Complete Guide to Check Valve Problems and Troubleshooting.

Therefore, it’s important to inspect them often. Check valve makers must meet the ANSI MSS SP-61 standard. This standard sets the rules for checking the quality of check valves’ shells and seat closures.

How to test a check valve?

Here are the Procedures for Test and Replace a Check Valve:

1.      Shell test

During the Shell test, we submerged valves in water at a pressure of 125 psi. They heat them to temperatures 1.5 times higher than their rating at 100 °F.

Measurements and times for each valve test should be two and a half inches per minute. In a minute, it may grow from 2.5 inches to 6 inches—a speed of 7 inches per 150 seconds. There should be no air gaps in the valve, of course. Putting a Closed Seat to the Water Test

2.      Seat closure test

  • Seat closure test with water and apply pressure to the valves. The pressure is at least 1.11 times their rating at 100 °F. We round up the pressure to the nearest 25 psi.

Valve tests should take less than 30 seconds and measure 2.5 inches. The speed should be faster than 2-8 inches per 30 seconds or 10-18 inches per minute. Over 20 inches means you have 120 seconds.

Metal-seated valves can achieve leak rates of up to 40 ml/h/in2 of nominal valve size. Soft seating on the valves should prevent leaks.

  • Seat closure test with air. Valve seat closure testing involves high-pressure air (about 80 PSIG or more). Measurements and times for each valve test should be Two and a half inches less than half a minute, with a speed of 3.030 inches per 30 seconds.

A soft-seated valve does not expect any leakage, but a metal-seated valve can have up to 0.4 SCFH/inch leakage.

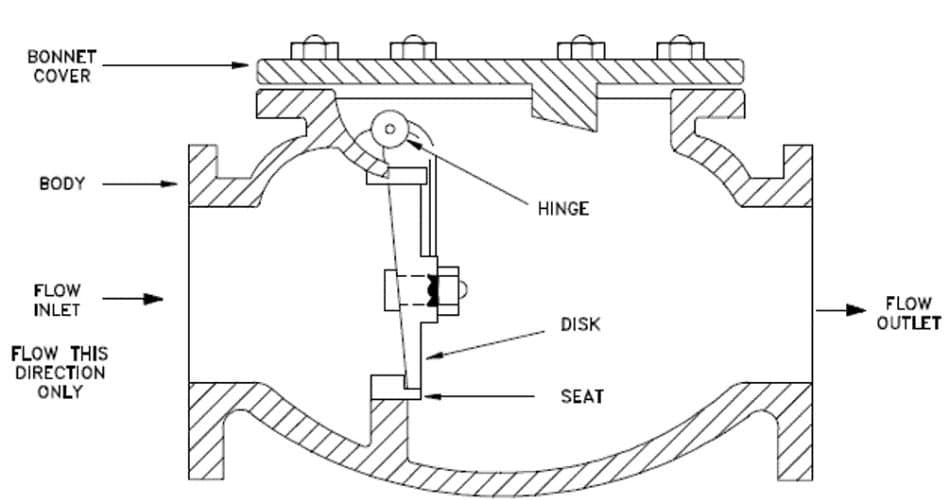

swing check valve with drawing
Swing check valve with drawing

3.    Additional Testing Methods

Lift-type and Swing check valves can also undergo pressure testing. The orientation of the finished product is the defining characteristic of these varieties. The pressure test consists of two phases:

  1. The input fluid saturates, and we turn off the output as a strength test. Both the valve body and the cap must be completely leak-proof.

The closed intake valve ensures a tight sealing test and forces fluid from the outlet. All is good with the valve if the packing, gasket, and sealing surface appear fine.

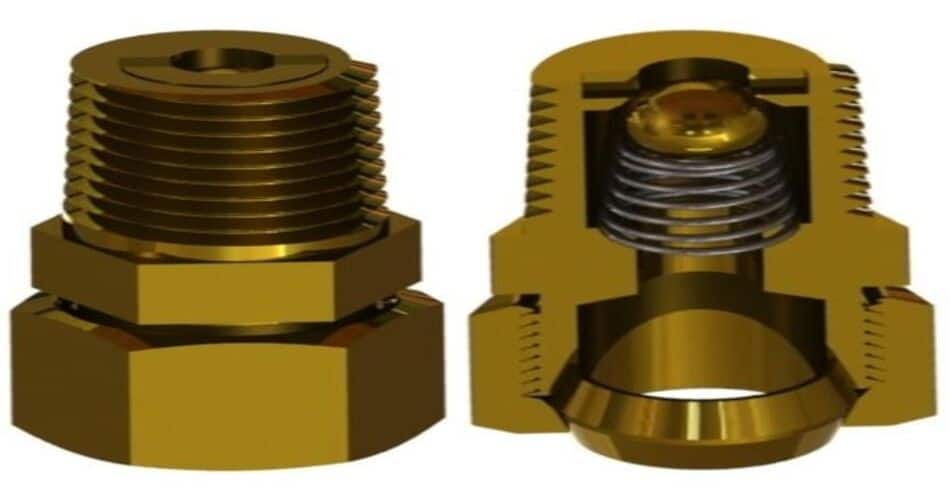

intake check valve structure
Intake check valve structure

Diagnostics of valve issues

When testing a check valve, look for obstructions or debris in the foot valve, as a clogged foot valve might impair flow.

  • It would be best if you often changed a broken valve. It is essential to know how to replace it correctly. This will help keep the system working properly.
  • A discharge from the check valve in a pool system may signal something is wrong.
  • It is critical to inspect the valve internals for obvious damage or clogs.
  • A faulty check valve in a fuel system might result in fuel leaks or inconsistent pressure.

Common Check Valve Failures and How to Address Them

While typically well-constructed and appropriately designed, check valves require regular maintenance and attention like any other equipment. Neglecting the necessary tests and maintenance can lead to issues resulting in check valve failure.

Maintenance and Replacement of Check Valves

Regular maintenance is essential to avoid clogged valve bodies. If issues arise, replacing the check valve on the well pump becomes necessary. Proper installation of a new check valve, whether a 2-inch one-way or an internal check valve, ensures smooth system functioning.

Here are the common check valve failures and ways to resolve them:

Check Valve Failures

Reverse Flow

It happens when water flows back from the outlet to the inlet, indicating a check valve failure. It is especially problematic during discharge pump operations, as backflow can cause the impeller to spin in the wrong direction, leading to pump damage.

Debris in Pipeline

Fluid movement in check valves can cause debris to build up, making the valve stuck open or closed. Irregular maintenance contributes to debris buildup, and high-speed debris in the fluid can damage internal valve parts.

Water Hammer

A water hammer occurs when a sudden blockage or fluid flow changes. It leads to pressure surges that can cause damage to pipes, fittings, and the check valve.

It is a common issue with swing check valves, and fluid backflow can cause sudden valve closure, leading to pressure fluctuations.

Failing Seat Seal

Seals such as elastomer ring seals check valve discs, balls, or plugs to their seats for proper shutoff. Over time, constant friction and frequent use can degrade these sealing materials, causing fluids to seep through the shutoff valves and leading to check valve failure.

Inconsistent Fluid Flow

Check valves to ensure a constant, unidirectional fluid flow until shutoff. Any flow disruptions or fluctuations indicate a check valve failure. Inconsistent flow can disrupt the intended operation of the check valve.

Y type check valve
Y type check valve

Causes of Check Valve Failures

Troubleshooting well pump check valve failures and other types of check valve failures reveals the following causes:

Wrong Installation, Assembly, and Maintenance Practices

Improper installation, assembly, and maintenance can result in severe valve damage, leading to early failure. Incorrect practices can cause premature wear and tear, compromising the valve’s functionality.

High Temperatures

Elevated temperatures cause valve parts to expand and deteriorate rapidly, affecting sealing integrity and causing leaks. High temperatures are detrimental to check valve performance.

Low Fluid Pressure

Check valves require adequate fluid pressure for proper operation. Insufficient pressure can lead to frequent valve openings and closings, causing wear and tear on valve components. Low pressure, often caused by clogged or comprehensive pipelines, negatively impacts valve performance and can lead to failure.

Check Valve Chronicles: Symptoms, Fixes, and Prevention Demystified

Do you have a problem with your check valve? I’m here to break it down for you in plain English. We’ve got symptoms, preventive measures, and solutions for you, just like a trusty toolbox.

Loud Bangs:

If your valve’s making a racket, it’s not jamming out; it’s probably a water hammer. It’s like a drumroll but in your pipes. This noise happens when the valve slams shut and the water smacks it.

Higher Bills:

If your wallet’s taking a hit, it’s a sign that your valves might be slacking. It’s like a leaky faucet for your cash when they don’t control the pressure.

Worn-Out Look:

When your valve’s parts start looking rough around the edges, it’s waving a red flag. It’s like the valve’s saying, “I’m getting old, folks!” Sticky parts mean it’s aging or getting rusty.

Losing Bits:

If you spot valve parts bobbing around in the water with sluggish flow, you have a problem. It’s like finding breadcrumbs in your soup – not a good sign.

Drips and Drops:

Leaky pipes, anyone? They’re like a neon sign screaming, “Check your valves. There may be no hope for them! Finding the leak source will require detective work.

Equipment Going Bust:

When your gear starts acting up, it’s like a domino effect. First, the valve’s off, and then everything else follows. Fixing it might mean replacing the damaged parts.

Preventive Measures:

Clean It Up:

Don’t let your valves turn into a dumping ground for debris and junk. Get rid of those bits and bobs regularly. Think of it like sweeping the front porch.

Installation Know-How:

Putting in a check valve isn’t like assembling IKEA furniture without the instructions. Follow the manufacturer’s guide – it’s like reading the map on a treasure hunt. Use the right valve for the right job.

Lubricate valves frequently.

Your valves need a little TLC, just like your car. Lubricate them to keep things smooth. Less friction means less wear and tear, and that’s a win.

Size Matters:

Picking the right valve size is like finding the right pair of shoes. You wouldn’t wear clown shoes to a formal event. Make sure it’s a match for your system.

Material Match:

It’s like choosing the right tool for the job. Check if your valve’s material plays well with others. You don’t want it throwing a tantrum.

Speed It Up:

Reaction speeds matter. It’s like picking the right vehicle for your commute. You wouldn’t take a snail to a race, would you?

Solutions:

Leaky Business:

If your valve’s leaking, it’s like a detective story. First, figure out where it’s leaking, like finding a leak in a boat. It could be loose bolts, busted gaskets, or a grumpy flapper. Tighten those bolts and swap out the damaged parts.

Part Replacement:

When a valve part’s had enough, don’t try to patch it up – it’s like putting a band-aid on a broken bone. Swap it out before it messes with the whole shebang. Sometimes, you might need a full valve replacement if things are way out of whack.

Water Hammer:

If you’ve got a water hammer, it’s like trying to tame a wild horse. First, locate where it’s happening – like finding the wild stallion. Then, you can use water hammer arresters, release trapped air, change intake connections, or even throw in pressure-limiting valves. It’s like calming the beast.

Valve Blockage:

If your valve’s stuck, it’s like a traffic jam in your pipes. Take it apart, clear out the gunk, and double-check that the size matches your pipe. It’s like unclogging your kitchen sink.

So, there you have it—the lowdown on check valves. Watch for those symptoms, follow some preventive steps, and you’ll be the valve master in no time. Remember, it’s all about keeping the flow smooth and the pipes happy!

How to Replace a Check Valve

  • Apply the following tricks to replace a check valve;
  • Turn off the water supply before replacing a check valve.
  • Using wrenches, remove the old valve.
  • Apply Teflon tape to the pipe threads after cleaning them.
  • Install the replacement valve and tighten it firmly.
  • Restart the water supply to check for leaks.

Signs of a Failing Well Pump and Check Valves’ Role

A failing well pump often exhibits signs like inconsistent water pressure or unusual noises. One common culprit could be a faulty check valve. Understanding where to install check valves on water pumps is essential. Proper placement, such as the well pump check valve location, ensures seamless operation and helps diagnose issues promptly.

Ensuring Efficient Check Valves Operation

Understanding check valve direction is essential for air pumps or In-Line Spring Vertical Check Valve water systems. Homeowners often wonder, “Do I need a check valve on my well pump?” The answer is yes. A well-maintained check valve guarantees an uninterrupted water supply and prolongs pump life.

The Role of Check Valves in the Old Valve Factory

In the historical context of the old valve factory, skilled artisans manufactured check valves to precise standards, showcasing quality craftsmanship. They engineered these valves, including 1-way water and stop check valves, to serve diverse purposes, emphasizing their versatility.

swing check valve parts of all
Swing check valve parts of all.

Signs of a Failing Well Pump and Check Valves’ Role

Enhancing the Best Way to Install and Assemble Check Valves:

Check valves are vital components in various applications, ensuring the unidirectional flow of fluids while preventing backflow. However, the effectiveness of these valves hinges on proper assembly and installation. This guide will explore the key considerations to ensure your check valves perform optimally.

For plumbing or hydraulic systems, here’s a quick guide to help you identify issues:

1. Hydraulic Valve Inspection:

  • Observe for sluggish or erratic movement, leakage, or reduced pressure to determine if your hydraulic valve is malfunctioning. If any of these signs are present, your hydraulic valve is likely not functioning correctly.
  • Check the valve body for any visible damage like cracks or corrosion. Learn how to repair and replace hydraulic valve manufacturers.

2. Plumbing Check Valve:

  • Plumbing check valves prevent water backflow.
  • Check for signs of water flowing in the wrong direction, indicating a faulty check valve.

3. RV City Water Check Valve:

  • A stuck check valve can disrupt your RV’s city water supply.
  • Listen for unusual chattering noises and inspect the valve for obstructions or damage.

4. Check valves for wells:

  • Wells also uses check valves to maintain water flow in one direction.
  • Regularly check these valves for any issues to ensure a consistent water supply.

5. RV Water Pump Check Valve:

  • RV water pumps sometimes have a stuck check valve, making flow difficult.
  • If your RV water pump isn’t working correctly, inspect the check valve for any obstructions or signs of wear and tear.

6. Water Check Valve:

  • A water check valve is a device that allows water to flow in one direction only, preventing backflow.
  • Regular inspection and maintenance are essential to ensure they function correctly.

Understanding the Basics

To install, it’s important to understand “perplexity” and “burstiness,” which impact writing quality. These factors play a significant role in determining the effectiveness of the written content.

Perplexity gauges the intricacy of the text, while burstiness examines the variety in sentence structures. Human-generated content often exhibits greater burstiness, incorporating both intricate and concise sentences. In contrast, AI-generated content tends to be more uniform. We’ll strive to incorporate these textual elements to convey the following information effectively.

Installation Guidelines

Here’s a way to get the test valves flowing smoothly—proper from the start! These 3 pipe layout regulations are your non-negotiable roadmap to a continuing test valve installation, making the highest quality overall performance and operation of check valves:

Pipe Design Rules

  1. Install Check Valves in Non-turbulent (Laminar) Conditions
    1. Designing pipes connected to check valves with straight, smooth, and non-turbulent (laminar) flow is imperative for optimal performance.
    2. Generally, you should have five times the standard pipe size (NPS) of straight pipe. However, You can put some check valves on pipes that aren’t perfectly straight.
  2. Properly Calculate Valve Size
    1. Sizing check valves differs from sizing on-off and control valves. It’s essential to determine the appropriate valve size for each application.
    2. Avoid assuming that nominal valve and pipe sizes match, and perform sizing calculations for minimum, maximum, and normal flow conditions.
  3. Install in the Proper Orientation
    1. The orientation of valve installation plays a significant role in its smooth operation. The valves don’t have to deal with gravity in horizontal lines, so they work better most of the time.
    2. Many valves can be used in lines across the room, but quiet axial flow check valves work best in lines that go up and down.

Installation Guides

Improper installation can lead to check valve failure and potential damage to the entire system. Installation methods may vary depending on the type of check valve. However, here are some best practices for flapper-type swing check valves:

  • Inspect the valve to ensure that you have removed all transport and storage materials.
  • Verify that the flapper operates freely on the seating surface and back.
  • Ensure no obstructions at the valve’s edges might hinder proper sealing.
  • Install the valve with the direction of the flow arrow and provide a 3-diameter straight pipe upstream.
  • In vertical installations, ensure the flow direction opposes gravity (up-flow).
  • Horizontal installations require a cover on the top of the valve.
  • Always inspect and test-run the valve post-installation to prevent premature swing check valve failure.
  • The swing check valve should be free of any packaging or shipping debris when purchased from reliable swing check valve manufacturers. If you use this method, the valve might work better every time.

Professional Installation

For installing industrial check valves, we strongly recommend enlisting the expertise of qualified and licensed professionals. These people have put in valves before, so they know to ensure they are installed correctly. It’s less possible that something will go wrong now.

Check Valve Seat Replacement Guide:

Valve seats are critical components of check valves, responsible for sealing against the closure element to maintain proper shutoff. These seats may require replacement due to the following:

  • Wear and tear from friction or aging.
  • Misalignment during installation with the check valve closure element.
  • Pieces and pieces on the closing element’s surface or inside the valve can damage the seat.

Neglecting the replacement of damaged valve seats can result in leakages, backflow, and non-return valve failure. Follow these steps for a successful replacement:

  • Drain the fluid from the pipeline.
  • Loosen connecting belts and nuts and, if necessary, remove the valve from the pipeline.
  • Remove the cover bolts and the valve cover.
  • Take out the gasket and closure element.
  • Uncouple and replace the damaged seat with a new one.
  • Reassemble the valve with the new seat part.
  • Return the valve to its operational state.
  • By testing it, please verify that the valve seat no longer has a problem.

Check Valve Handle Replacement Guide:

While most check valves operate automatically and do not require handles, stems, or actuators, stop-check valves are the exception. It is possible to control and isolate fluid flow with these valves externally. Handles on stop check valves may need replacement from time to time. Follow these steps:

  • Drain the fluid from the pipeline.
  • Turn the valve to the closed position.
  • Loosen connecting bolts and nuts.
  • Uncouple and remove the valve handle.
  • Replace the old valve handle with a new one.
  • Reassemble the valve with the new handle part.
  • Return the valve to its operational state.
  • If the problem persists, test the valve handle.

Conclusion:

In summary, knowing the different types of check valves is important. It is also essential to choose reliable valve makers. Additionally, having problem-solving abilities is necessary for ensuring efficient fluid systems. It is important to be proactive in maintenance and problem-solving when ensuring the system functions properly. It applies to all valves, including brass balls and check valves.

By adhering to these installation, maintenance, and replacement guidelines, you can ensure your check valves’ efficient and reliable performance by contacting us. Professional expertise is invaluable, so don’t hesitate to seek it when necessary.

Solutions For Waterworks Plumbing

Get quote Now

Free Sample with OEM

× How can I help you?
