Common Valve Problems in Commercial Projects Leakage, Corrosion & Pressure Issues

Valve failures are among the most common equipment issues in commercial buildings, HVAC systems, water treatment facilities, fire protection systems and industrial piping networks. Leakage, corrosion, abnormal pressure, difficult operation and water hammer may appear as separate problems, but they are often closely related. For example, worn valve seats can cause internal leakage, and continuous internal leakage may further lead to pressure instability. Improper material selection can also accelerate corrosion and eventually cause sealing failure. This article from Plumberstar analyzes typical valve failures in commercial projects, including their causes and practical troubleshooting methods.

1. What Are the Most Common Valve Problems in Commercial Projects?

In commercial buildings and industrial piping systems, valve failures usually involve leakage, corrosion, abnormal pressure, operation problems and abnormal vibration. The following sections explain these common issues and their causes.

1) External Leakage and Internal Leakage

Leakage is the most common valve failure in commercial projects. It can be divided into external leakage and internal leakage. External leakage is usually easy to identify, while internal leakage mainly affects system isolation performance. Different leakage locations normally indicate different failure causes.

2) Corrosion and Material Failure

Corrosion is not limited to visible rust on the valve body. More commonly, it appears as pitting corrosion, crevice corrosion, dezincification and erosion, which gradually damage sealing performance.

3) Abnormal Pressure, Insufficient Flow and Control Failure

Pressure abnormalities do not always originate from the pump. Undersized valves, blocked valve passages, incorrect control valve Cv selection or failed pressure reducing valves can all increase pressure loss, reduce flow capacity or cause system pressure fluctuations.

4) Valve Sticking, Difficult Operation and Actuator Failure

After long-term operation, valves may experience difficult opening and closing, increased operating torque or actuator failure. These problems may come from the valve body itself, the actuator system or improper installation and maintenance. For valves that remain at a fixed opening position for long periods, regular operating tests are usually more effective than repairing the valve after failure occurs.

5) Abnormal Noise, Vibration and Water Hammer

Continuous noise and vibration usually indicate abnormal fluid conditions, such as turbulence, cavitation or pipeline resonance. Water hammer caused by rapid valve operation can create instantaneous pressure far above normal working pressure, potentially damaging valves, flanges and pipelines.

2. Valve Leakage: Common Locations and Causes

Valve leakage can occur at multiple locations, and each leakage point usually indicates different failure causes. The following sections analyze the most common leakage locations found in commercial projects and explain their causes and practical solutions.

1) Leakage at the Valve Stem and Packing Gland

The valve stem packing gland is the most common location for external leakage. Aging packing, insufficient gland compression, worn valve stems or incorrect packing material selection can allow the medium to leak along the valve stem. For high-temperature steam systems, flexible graphite packing is usually more suitable than PTFE for long-term operation.

Valve stem and packing leakage

Valve stem and packing leakage

2) Leakage Between Valve Body and Bonnet Connection

The valve body and bonnet rely on gaskets for sealing. Aging gaskets, uneven bolt loading or reduced bolt preload caused by thermal cycling can result in leakage.

Valve body and bonnet connection leakage

Valve body and bonnet connection leakage

3) Leakage at Flange, Threaded and Welded Connections

Leakage at connection points is usually related to installation quality. Incorrect flange gasket selection, insufficient thread sealing, welding porosity or lack of fusion can reduce connection reliability. In newly constructed projects, these failures commonly occur during pressure testing or early commissioning.

4) Internal Leakage Caused by Valve Seat Damage

When a valve still allows flow after closing, the problem is usually related to valve seat leakage. Common causes include sealing surface wear, scratches caused by solid particles, cavitation erosion and incomplete closing. Systems requiring strict shut-off performance should undergo regular sealing tests rather than waiting until abnormal operation occurs.

Valve seat internal leakage

Valve seat internal leakage

3. Valve Corrosion: Common Types and Causes

Valve corrosion has complex forms and causes. It is usually related to material selection, fluid composition, flow velocity and operating temperature. The following sections analyze several common corrosion types.

1) Corrosion Failure Caused by Incorrect Material Selection

Many corrosion problems occur because the valve material does not match the service medium. For example, 304 stainless steel is suitable for general water supply systems, but it is more likely to suffer from pitting corrosion in seawater or high-chloride circulating water environments. Brass valves used for long periods in ammonia-containing or corrosive media may also experience stress corrosion cracking or dezincification.

Valve corrosion

Valve corrosion

2) Pitting Corrosion, Crevice Corrosion and Galvanic Corrosion

Pitting corrosion commonly occurs in chloride-containing media. Although the affected area is usually small, it can rapidly penetrate the valve body or valve stem. Crevice corrosion often occurs around flange connections, gasket contact surfaces and bolt areas. Galvanic corrosion occurs when two different metals are directly connected in the presence of an electrolyte. For example, direct connection between stainless steel and carbon steel can accelerate corrosion of the more active metal.

3) Dezincification Corrosion of Brass Valves

Dezincification is one of the typical failure modes of brass valves. As zinc gradually dissolves from the alloy, the internal structure becomes loose and porous. Although the external appearance of the valve may show little change, its mechanical strength and sealing performance can significantly decrease. For drinking water and commercial water supply systems, engineers should prioritize dezincification-resistant brass (DZR Brass) or products that comply with relevant potable water standards.

Brass valve dezincification corrosion

Brass valve dezincification corrosion

4) Erosion and Corrosion Interaction Caused by High Flow Velocity

When flow velocity is excessive or the medium contains solid particles such as sand, valve seats, balls and sealing surfaces continuously experience erosion, accelerating material wear. Control valves and pressure reducing valves are especially vulnerable under high differential pressure conditions. Reducing flow velocity, optimizing valve sizing or selecting wear-resistant materials is usually more effective than simply replacing the valve.

5) Effects of Medium, Water Quality and Temperature on Corrosion

Higher temperatures accelerate many corrosion reactions. Chloride ions, dissolved oxygen, pH value and solid particles in water also affect valve service life. For example, the same ball valve may operate for more than ten years in normal tap water, but its service life may reduce to only several years in a high-chloride circulating water system.

4. Valve Pressure Abnormalities: Pressure Drop, Fluctuation and Impact

Valve pressure abnormalities are usually related to valve selection, opening position, internal blockage and the condition of pressure control components. The following sections analyze common problems including pressure loss, insufficient flow, pressure fluctuation and pressure impact.

1) Pressure Loss Caused by Undersized Valve Selection

If the valve size or Cv value is selected too small, flow resistance increases and the system experiences excessive pressure drop, resulting in insufficient flow at terminal equipment. This issue is very common in commercial HVAC and water treatment projects. Valve selection should be based on design flow rate, pressure differential and allowable velocity rather than simply matching the pipe diameter. For liquid systems, flow velocity is generally recommended to remain around 1.5–3 m/s. Higher velocity than the design value may increase pressure loss and noise.

2) Insufficient Flow Caused by Valve Blockage or Incomplete Opening

Welding slag, scale, rust or other contaminants entering the valve cavity can reduce the actual flow passage area. Valves that remain partially closed for long periods can also restrict flow. When troubleshooting pressure problems in older systems, engineers should first check valve opening position and possible internal blockage.

Valve blockage

Valve blockage

3) Pressure Fluctuation Caused by Incorrect Control Valve Selection

When a control valve operates continuously near fully open or fully closed positions, its control accuracy decreases significantly. This can cause repeated system pressure fluctuations and even valve hunting. Proper Cv selection and maintaining the valve operating range around 30%–70% opening usually provide more stable control performance.

4) Downstream Pressure Abnormality Caused by Pressure Reducing Valve Failure

Aged diaphragms, spring fatigue, pilot valve blockage or valve seat wear can cause a pressure reducing valve to produce excessive downstream pressure or unstable pressure control. In commercial building water supply systems, engineers should regularly check outlet pressure instead of waiting for users to report abnormal water pressure before performing maintenance.

5. Valve Sticking, Difficult Operation and Actuator Failure

Valve sticking, difficult operation and actuator failures are usually related to valve body wear, transmission mechanism problems or actuator malfunction. The following sections describe common failure causes found in commercial projects.

1) Valve Stem Corrosion, Bending and Thread Damage

Valve stems exposed to humid or corrosive environments for long periods can develop corrosion, wear or bending, increasing operating torque. For rising stem valves, thread wear can also affect opening and closing travel and may prevent complete shut-off in severe cases.

Valve stem corrosion

Valve stem corrosion

2) Valve Seat Jamming and Internal Component Blockage

Welding slag, rust, scale or other particles entering the valve cavity can block the ball, disc or valve plug, preventing normal operation. This problem is especially common during the initial commissioning stage of newly installed pipelines. Therefore, system flushing and cleaning are normally required before official operation.

3) Excessive Packing Tightening Increasing Operating Torque

Tightening packing harder does not always improve sealing performance. Excessive preload increases valve stem friction, significantly raising handwheel or actuator torque requirements and may even trigger actuator overload alarms. The correct approach is to adjust the gland compression according to sealing requirements rather than simply tightening the packing.

4) Handwheel, Gearbox and Transmission Mechanism Failure

For large-diameter valves, worn gearboxes, insufficient lubrication, damaged worm gears or loose transmission shafts can all cause difficult operation. When operating force suddenly increases, engineers should inspect the transmission mechanism first instead of immediately replacing the valve.

5) Electric, Pneumatic and Hydraulic Actuator Failure

Actuator failures usually appear as slow movement, inaccurate positioning or complete loss of response. Common causes include motor damage, limit switch failure, insufficient air supply pressure, solenoid valve failure and aged seals. In automated systems, actuator maintenance frequency should be consistent with valve body maintenance requirements.

6. Valve Abnormal Noise, Vibration and Water Hammer Impact

Abnormal noise, vibration and water hammer during valve operation are usually related to flow velocity, pressure changes and the overall condition of the piping system. The following sections analyze several common situations.

1) Fluid Noise Caused by High Flow Velocity and Turbulence

When flow velocity is too high or the flow passage suddenly becomes restricted, the fluid generates severe turbulence, resulting in continuous noise. This situation is especially common when control valves operate at small openings for extended periods. Reducing flow velocity or selecting a more suitable Cv value can usually improve noise problems.

2) Abnormal Noise Caused by Cavitation and Flashing

When liquid pressure drops below the vapor pressure, cavitation occurs. After vapor bubbles collapse in high-pressure areas, they generate impact forces that not only create significant noise but also continuously damage valve seats and internal components. For high differential pressure applications, engineers should prioritize anti-cavitation valve trims or multi-stage pressure reduction structures.

3) Valve Vibration and Pipeline Resonance

Continuous valve vibration affects control accuracy and accelerates fatigue damage to flanges, supports and weld joints. When vibration frequency approaches the natural frequency of the pipeline, resonance may occur and increase equipment failure risks. During troubleshooting, engineers should inspect both the valve and the complete piping system rather than focusing only on the valve itself.

Valve damage caused by water hammer

Valve damage caused by water hammer

4) Vibration Caused by Insufficient Pipe Support

Large valves have significant weight. If pipeline supports are insufficient or improperly installed, long-term operation may cause vibration or displacement. In practical projects, many flange leaks and weld cracks are related to inadequate support design rather than valve quality problems.

7. Valve Troubleshooting Process: How to Quickly Identify Problems on Site?

Valve troubleshooting should follow a systematic approach, starting from external inspection and simple checks before moving toward internal inspection and complex analysis. Engineers should first confirm the failure symptoms and operating conditions, then gradually inspect the valve body, sealing components and actuator system.

1) Step One: Confirm Failure Symptoms and Location

The first step is to identify the failure type rather than immediately disassemble the valve. For leakage problems, engineers must determine whether the issue is external leakage or internal leakage. For pressure abnormalities, they should confirm whether the problem is local or affects the entire system. For operation problems, they should determine whether the failure comes from the valve body or actuator. Accurate identification of symptoms can significantly reduce troubleshooting time.

2) Step Two: Check Pressure, Temperature, Flow Rate and Medium Conditions

Use pressure gauges, flow meters and temperature instruments to verify whether system parameters deviate from design values. Engineers should also check whether the operating medium has changed, such as deteriorated water quality, increased particles or higher corrosion levels. Many valve failures are not caused by equipment defects but by changes in operating conditions.

3) Step Three: Check Valve Opening Position, Installation Direction and Actuator Condition

Confirm whether the valve is fully open, whether the installation direction is correct and whether the actuator can provide sufficient operating torque. For products with specific flow direction requirements, such as check valves and pressure reducing valves, incorrect installation direction can directly affect system performance.

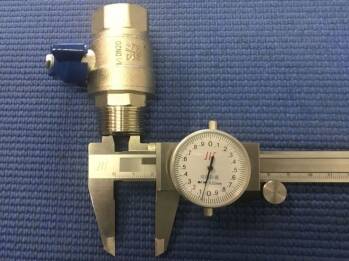

4) Step Four: Inspect Valve Seat, Stem, Packing and Connection Areas

If the previous checks show no abnormal conditions, further inspection should focus on critical valve components for signs of wear, corrosion, blockage or sealing failure. For valves that have operated for long periods, engineers should pay special attention to valve seat sealing surfaces, stem wear, packing aging and flange connection conditions.

5) Step Five: Decide Whether to Repair, Replace or Re-select the Valve

If the problem only involves aged packing, damaged gaskets or actuator failure, repair is usually sufficient. However, if the valve body has severe corrosion, the valve seat is heavily worn or the original valve selection does not match actual operating conditions, replacing the valve is usually more economical than repeated repairs. Systems with repeated failures should be reviewed for valve type, material selection and pressure rating suitability.

8. Quick Diagnostic Table for Common Valve Failures in Commercial Projects

The following table summarizes common valve failure symptoms, possible causes and recommended corrective actions:

Failure Symptom Most Likely Cause Priority Inspection Area Recommended Action
Water or gas leakage from valve stem Aging packing, loose gland Packing gland Adjust gland compression or replace packing
Flow continues after valve closing Valve seat wear, damaged sealing surface Valve seat and closing components Repair or replace valve seat
Leakage at flange connection Failed gasket, uneven bolt loading Flange sealing surface Replace gasket and retighten bolts
Significant flow reduction Valve blockage, incomplete opening Valve cavity and opening position Remove contaminants or restore full opening
System pressure fluctuation Incorrect control valve selection, pressure reducing valve failure Control valve and pressure reducing valve Recommission or replace valve
Difficult opening and closing Valve stem corrosion, excessive packing compression Valve stem and transmission mechanism Lubricate, repair or replace components
Excessive valve noise Turbulence, cavitation, flashing Flow velocity and pressure differential Optimize operating conditions or select a different valve
Valve and pipeline vibration Resonance, insufficient support Supports and fixing points Strengthen supports and adjust installation method
Severe valve corrosion Material incompatible with medium Valve body and internal components Replace with corrosion-resistant materials
Pipeline water hammer Rapid operation, check valve failure Valve operating speed Install slow-closing devices or water hammer arrestors

9. Conclusion

Most valve failures can be prevented through correct valve selection, proper installation and preventive maintenance. Understanding the causes of common failures not only helps engineers quickly identify problems but also reduces downtime, extends valve service life and improves the overall efficiency of piping systems.
