Maintaining the purity of fluids in industries is very important. Placing strainers in pipelines is one of the major ways they achieve this. This is critical for manufacturing, water treatment, or oil and gas to ensure that particles and other undesired elements remain out of the system.
Some of the more commonly utilized are Y and basket strainer. While both may filter contaminants, they are designed for different applications utilizing various materials. Understanding them will help you to pick the right one for your needs.

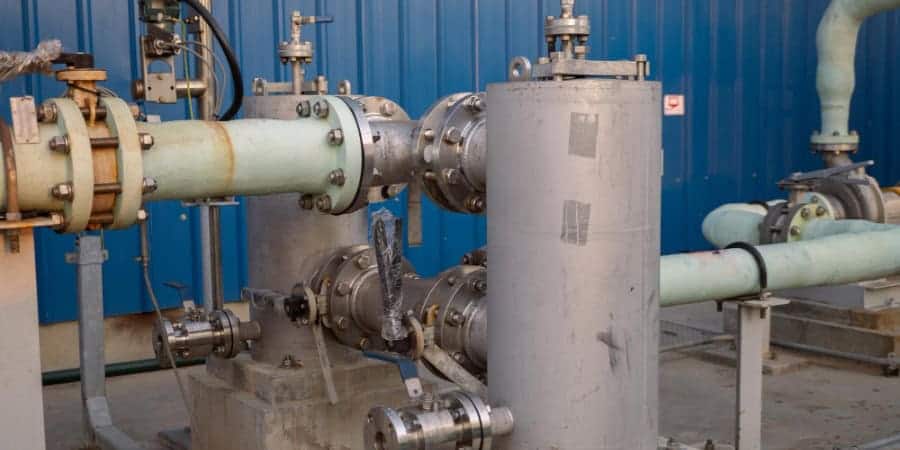

What Are Strainers?
Before getting to the specifics of the basket and Y strainers, you must know what strainers are generally used for. A strainer is a component installed in a pipeline to filter out unwanted particles. They offer trouble-free operation, reduce maintenance costs, and protect downstream equipment such as meters, valves, and pumps. Although mostly used in liquid systems, it can also be applied to gas systems. Strainers help maintain the overall health of your system by screening larger debris and preventing costly failures. They also help keep the equipment running longer.
Function and Design of a Basket Strainer
Function
Like the Perforated Stainless Steel Drain, the basket strainer removes more particles from the fluid. In addition, the system has a perforated basket to absorb debris while clean fluid passes through. It is straightforward to maintain since the basket can be removed for replacement or cleaning. Basket strainers are ideal for applications that need a higher level of cleaning more frequently because they offer a good surface area to collect particles. Considering systems for which they must operate continuously, this significantly increased surface area not only improves the strainers’ wstrainers’tion capabilities but also decreases maintenance intervals, decreasing costs.
Design
A basket strainer is simple in design. The assembly consists of a housing in a cylindrical or oval shape with an interior basket that sits perpendicular to the flow of the fluid. The fluid enters the strainer, passes through the basket, and leaves from an outlet. The lid of the strainer is opened to get rid of the particles stuck inside that basket. This simple design, which is easy to clean, is handy in sectors where a fully automated installation is required 24/7. You can also set up single or duplex basket strainers. Duplex basket strainers allow for uninterrupted service while cleaning may continue, and one basket can be used to filter the fluid being processed.
Applications
Basket strainers are used in cases that require handling high volumes of debris— like water treatment plants, oil refineries, or chemical processing facilities. They can handle a large amount of trash without frequently jamming and work well for high-flow systems. These strainers are used in applications where the fluid being pumped is viscous or has a large particle size, as their design can accept higher contamination levels. Basket strainers are especially useful in sectors like oil and gas, where the fluid might contain sand, gravel, or other large particles. The system keeps running without needing regular stops for cleaning.
Design and Operation of Y Strainer
Function
On the other hand, a Y strainer, like the OEM Male Y Strainer, is utilized to keep fine particles out of the fluid. Its Y-shaped body gathers trash on a mesh or perforated screen. Systems with less frequent flow and maintenance strainers use y-strainers. They are ideal for confined spaces and are essentially smaller than basket strainers. HVAC or steam installations for all systems where its compact size would be beneficial. Even though the filter may be small, it is extremely effective and can easily remove fine particles.
Design
Y strainer has a special design in which the filtering element is angled to form a Y shape with the primary pipeline. The fluid flows past the screen, then finds its way to the strainer and leaves via the outlet. The filter has a screen to catch these particles, and the sieve’s lid sieve’s one to clean it. Y strainers can be installed horizontally or vertically, so the Y-strainer units are very versatile. An angled strainer means the trash that gets collected will easily be drained away by simply releasing a blow-off valve at the bottom. This operation of Y strainers proves highly beneficial in applications where the fluid is expected to contain smaller, dustier floating particles.
Applications
Y strainers are usually used on systems with a lower flow velocity, and the fluid has fewer particles. They are common in small pipelines from industrial facilities, steam applications, and HVAC systems. Y strainers will do the trick for minor debris protection of equipment such as pumps, compressors, and turbines. In steam systems, the fluid is usually loaded with tons of little particles, and Y strainers ensure these don’t produce damage that might invariably affect the system’s efficiency. Y strainers are also used in compressed air systems, where even tiny particles may seriously harm downstream machinery.
Materials Considerations
The material of a strainer is often what determines its appropriateness for several uses. Many materials are available for basket and Y strainers, each with benefits and restrictions.
- Carbon Steel: Y and basket strainers are frequently made using carbon steel mainly because of their strong and lasting nature. Applications where high pressure and temperature are involved will find it appropriate. However, carbon steels in these environments can also be subject to corrosion if used with high levels of chemicals and may need linings or coatings.
- Stainless Steel: Stainless steel is perfect for food and beverage industries and chemical processing worksites where it resists corrosion. This makes it ideal for various uses due to its excellent resilience against powerful chemicals and heat. In addition, stainless steel requires low maintenance and is easy to clean—a must-have feature in industries such as health care or food processing.
- Cast Iron is a reasonably priced choice for strainers, often used in water distribution systems and low-pressure applications. Though moderate in compressive strength, cast iron may be susceptible to corrosion, particularly when subjected to aggressive environments. It is often used in some non-corrosive fluid applications where cost is significant.
- Bronze: Bronze is commonly used in maritime environments with saltwater or some other corrosive fluid. The natural anti-corrosive composition of bronze means that they are an ideal choice for use with strainers in saltwater applications, giving excellent long-term service even under the harshest conditions. Plumberstar’Plumberstar’saped Water Strainer is perfect for seawater applications.
Size and Installation
The flow rate of the fluid and the pipeline’s spipeline’sine the strainers you will buy. Both basket and Y strainers are available in small to large sizes to suit diverse system needs.
Sizing of a Basket Strainer
Generally, basket strainers are bigger than Y Strainer due to their construction and the requirement to hold more waste. They range in size from 1/2 inch to more than 36 inches. Finding a basket strainer depends on the fluid’s flow pressure drop and particle nature. Industrial environments with strong fluid flow and the danger of contamination may call for more giant basket strainers. For example, a big basket strainer in an oil refinery can filter debris out with hardly any system pressure decrease.
Sizing of a Y Strainer
On the other hand, Y strainers are smaller and range from 1/4 inch to 24 inches wide. They are more suitable for systems with lower flow rates or less space. Y strainers are often installed in smaller pipelines and designed to deal with limited waste. Its small size allows it to be used in confined locations without impairing the system’s systems, such as steam lines.
Another factor in determining the size of a strainer is balancing between filtration needs versus pressure drop across the strainer. An overly large strainer might cause pressure drops, affecting the system’s systems. An undersized strainer could also cause repeated clogging and maintenance problems.
Critical Differences Between Y Strainers and Basket Strainers
We talked about their purpose, materials, and size… Now, let’s move on to the major differences between both strainers.
S/N |
Attribute |
Basket Strainer |
Y Strainer |
1 |
Design and layout |
Cylindrical design with a removable basket |
Y-shaped design with a screen |
2 |
Removal of particles |
Can handle a higher volume of debris |
Used to eliminate fewer particles |
3 |
Applications |
They are used in high-flow systems like oil refineries or water treatment facilities. |
They are often used in lower-flow systems such as HVAC (heating, ventilation, air conditioning) and steam applications. |
4 |
Maintenance |
Easy to clean but calls for constant upkeep due to the larger amount of debris they collect. |
It is difficult to clean but requires less maintenance. |
5 |
Cost |
They are more expensive due to their larger size and capacity |
It is pretty cheap and used in smaller systems |
6 |
Mode of installation |
Horizontally |
Horizontally or vertically |
In Summary
Y strainers and basket strainers are critical in fluid systems because they filter out dirt and protect equipment. They all have the same primary function but differ in design and use. Comprehending these differences will assist you in understanding the most effective strainer for your situation. You can contact us for a recommendation if you’re still wondering which one to go for. We manufacture the best custom strainers, so we’ve got yowe’veered.
