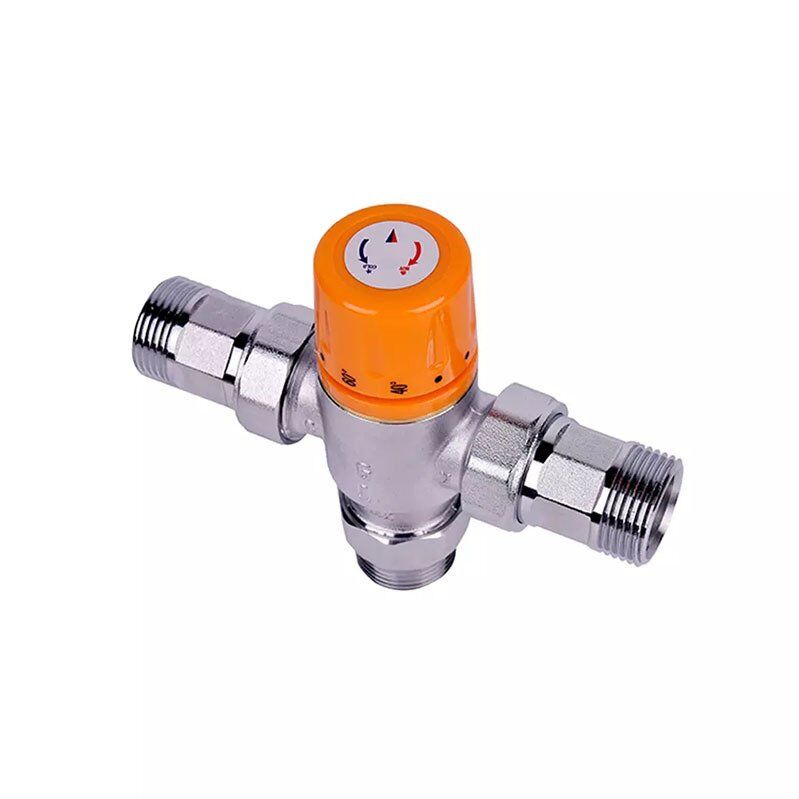

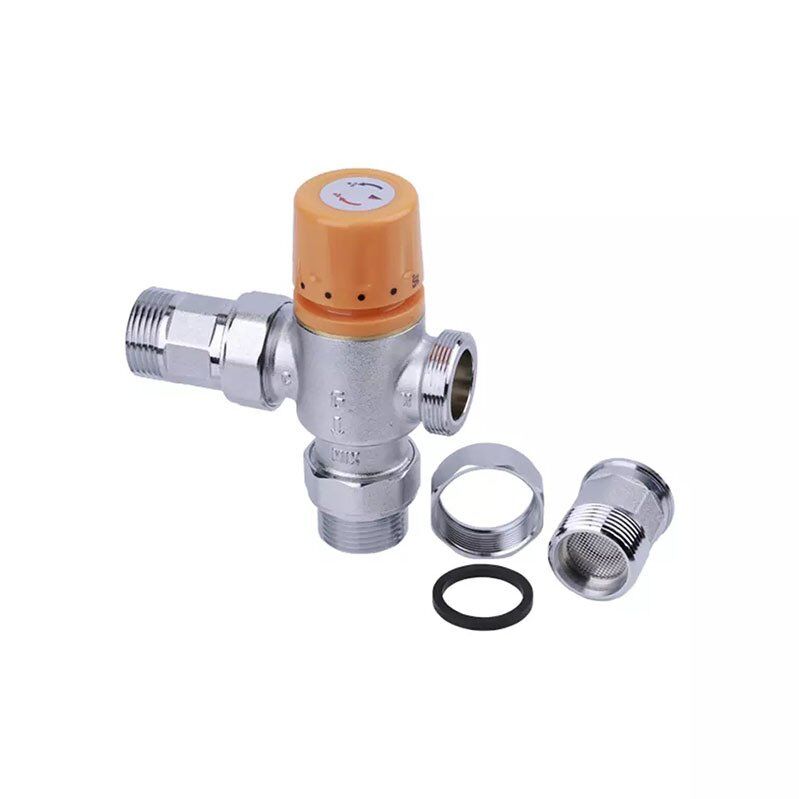

3 Way Thermostatic Mixed Valve

Parameters of 3 Way Thermostatic Mixed Valve

Temperature is limited at any point and if the cold water supply is interrupted, flow reduction occurs in seconds.

Additional information

Materials:

CW617N, H58-3

Finising:

Sand blasted, Sand blasted and Nickel plated

Size:

1-1/2", 1", 1/2", 3/4"

Thread connection

BSP, NPT

MOQ:

100pcs, 300pcs

Warranty:

24 months

Details about 3 Way Thermostatic Mixed Valve

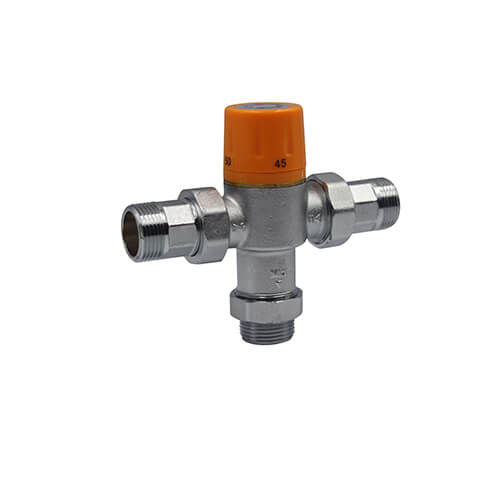

3-way Actuator and Thermostatic Mixing Valve

JX-0301

  • Temperature Inlet Cold Water: 5-29°c
  • Adjustment Accuracy: ±2°c
  • Brass materials with nickel-plated
  • ABS handle+Stainless steel spring
  • Working temperature;0.5 bar-5 bar
  • The thickness of chrome plating Nickel ≥ 8μm, chrome ≥ 0.2μm
  • Water flow:67 L/min in 1 Bar Water Pressure
  • The outlet temperature is 30-50℃ 1/2″ 495
    inlet hot water is 50-95℃ 3/4 “587
    ABS handle+Stainless steel spring 11/2 ”
    Max water outlet flow 1.6m³/H with 1kgs water pressure standard
    Brass materials with nickel-plated
  • Sizes; from DN15-DN40
drawing of the thermostatic valve
drawing of the thermostatic valve

A thermostatic mixing valve can be installed to replace your existing mixing valve to provide the perfect balance of hot and cold water. These valves are designed to control your home’s water temperature, allowing you to set it at just the right level if you’re looking for an affordable way to maintain a comfortable environment in your home or office.

Thermostatic mixing valves are perfect for situations where you need to maintain a precise water temperature. For example, if you’re using a washer and dryer in an apartment or home with shared laundry facilities, the faucet’s water mustn’t be too hot or cold. Installing a thermostatic mixing valve can help prevent accidents and keep your clothes from shrinking or fading.

Consider installing a thermostatic mixing valve. By keeping your water at the perfect temperature, you’ll be able to reduce the amount of heat needed to achieve it.

pack of the mix valve
pack of the mixing valve

If you’re looking for an affordable way to maintain a comfortable environment in your home or office, look no further than this blog post! Thermostatic mixing valves are perfect for situations where you need to maintain a precise water temperature. For example, if you’re using a washer and dryer in an apartment or home with shared laundry facilities, the faucet’s water mustn’t be too hot or cold. Installing a thermostatic mixing valve can help prevent accidents and keep your clothes from shrinking or fading.

What is it?

What is a 3-way Actuator and Thermostatic Mixing Valve? This device controls water temperature for industrial, commercial, and residential applications. The 3-way actuator leverages a combination of functions to precisely regulate and mix hot and cold water. It’s an essential component in any plumbing system that needs to deliver hot water at precise temperatures.

A 3-way actuator consists of three valves, two designed to control the flow rate and temperature range of hot or cold supplies, while the third modulates the combined flow. An adjustable thermostat monitors incoming temperatures, allowing the device to adjust output accurately. These valves are also designed with safety features such as overheat cutoffs that stop operation when necessary.

Benefits of 3-way Actuator

The 3-way actuator is a device that can be used to regulate the temperature of liquids and gases. It is an essential component of a thermostatic mixing valve, which helps maintain the desired comfort level in a room by controlling the flow of hot and cold water. This article explores the benefits that come with using a 3-way actuator.

The most obvious benefit of using this device is its ability to control temperatures accurately by adjusting the ratio between hot and cold water. In addition to providing precise temperature regulation, this device offers energy savings due to its superior efficiency. Its advanced design enables it to reduce heat loss, which helps lower energy costs over time.

Furthermore, 3-way actuators are easy to install and use, requiring minimal maintenance while still providing reliable performance.

Benefits of Thermostatic Mixing Valve

A thermostatic mixing valve is essential to many commercial and residential plumbing systems. It helps regulate the water temperature to maintain a safe and comfortable environment while protecting against scalding. This article will explore the benefits of installing a thermostatic mixing valve in your plumbing system.

Thermostatic mixing valves are designed to precisely control the water temperature by blending hot and cold water. This allows for a more excellent range of temperatures than regular plumbing fixtures, which can help reduce energy consumption by reducing the energy required to heat or cool the water. They also provide enhanced safety features such as scald protection, which will automatically shut off hot water if it reaches unsafe levels.

How do they work together?

A 3-way actuator and thermostatic mixing valve work together to regulate the temperature of hot and cold water in various applications. These components are essential for controlling the water temperature and providing safety and comfort. Understanding how these two components interact is key to ensuring optimal performance in any system.

A 3-way actuator is a component used to control the flow of hot and cold water into a mixing chamber. It consists of three ports, one for hot water, one for cold water, and an outlet that combines both streams into a single output stream. The 3-way actuator works by diverting either more or less hot or cold water into the mixture depending on what is required at any given time.

Applications of this Combination

A 3-way actuator and thermostatic mixing valve offer many applications for commercial and industrial uses. These two components regulate temperatures, allowing precise control over hot and cold supplies. This makes them ideal for cooling towers, chillers, boilers, heat exchangers, and more.

The 3-way actuator is designed to provide accurate flow control through a variety of commercial or industrial systems by controlling the switching between hot and cold water supplies with the appropriate temperature set points. It works with the thermostatic mixing valve, which is responsible for accurately regulating temperatures by combining hot and cold water sources within a system. Together both components allow users to maintain desired temperatures within their plans regardless of fluctuations in supply pressure or flow rate conditions.

Installation and Maintenance

This article will explore installing and maintaining a 3-way actuator and thermostatic mixing valve. This type of valve is commonly used in hydronic heating systems, cooling tower water treatment, and medical gas systems. Installation of these valves requires careful consideration of safety protocols, pipe fitting protocols, and system requirements to ensure proper operation. A technician should be consulted to avoid potential hazards when installing or maintaining any actuator or mixing valve.

During maintenance, it is important to keep an eye on the various parts that make up the 3-way actuator and thermostatic mixing valve. Proper lubrication should be applied to all moving parts regularly while checking on wear caused by friction or other environmental factors that can help prevent costly repairs.
